Technical data

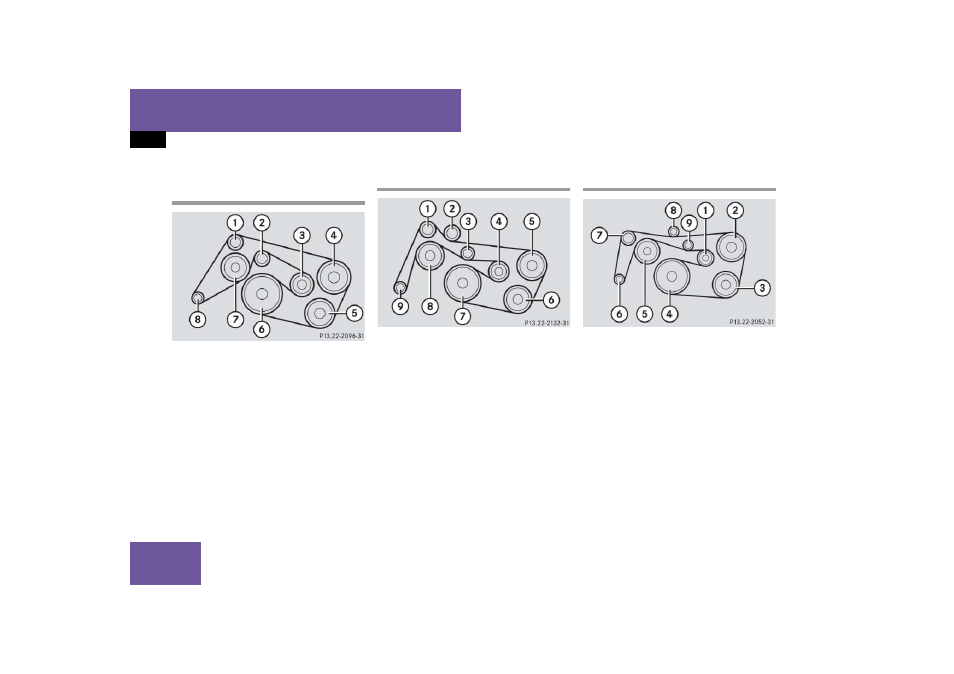

Layout of poly-V-belt drive
S 450 4MATIC 1 , S 550 and
S 550 4MATIC
1 Idler pulley
2 Idler pulley
3 Automatic belt tensioner
4 Pump for power-steering assistance
Vehicles with ABC*: ABC* tandem
pump (pump for power-steering assis-
tance and ABC* chassis)
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)
S 63 AMG
1 Idler pulley
2 Idler pulley
3 Idler pulley
4 Automatic belt tensioner
5 Pump for power-steering assistance
6 Air conditioning compressor
7 Crankshaft
8 Coolant pump
9 Generator (alternator)
S 600 and S 65 AMG
1 Automatic belt tensioner
2 ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
8 Idler pulley
9 Idler pulley
1 Canada only
