719
Practical hints
Replacing bulbs

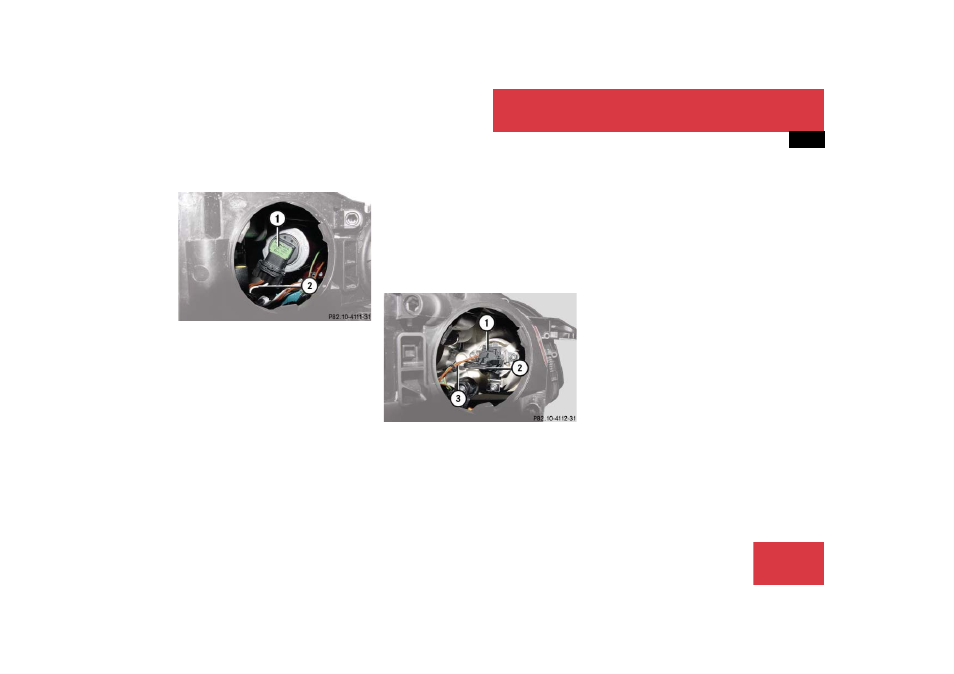

IR emitter*
1 Bulb holder
2 Wire position
̈ Turn cover 2 ( ୴ page 717) counter-
clockwise and remove it.
̈ Turn bulb holder 1 counterclockwise
until it disengages.
̈ Take out bulb holder 1.
̈ Press both catches on left and right
sides of bulb holder
1 and take bulb
out of holder.
̈ Insert new bulb into holder until it en-
gages.
̈ Insert bulb holder 1 into guide in
headlamp. Wire 2 must point down-
ward and to the right.
̈ Turn bulb holder 1 clockwise until it
engages and wire 2 points downward
and to the left.
Corner-illuminating lamp
1 Bulb holder
2 Grip
3 Wire position
̈ Turn cover 3 ( ୴ page 717) counter-
clockwise and remove it.
̈ Turn bulb holder 1 counterclockwise
until it disengages.
̈ Take out bulb holder 1.
̈ Take bulb out of holder.
̈ Insert new bulb into holder and press it
all the way down.
̈ Insert bulb holder 1 into guide in
headlamp.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire
3 must point downward and
to the left for the left headlamp, up-
ward and to the right for the right head-
lamp.
̈ Turn bulb holder 1 clockwise until it
engages and grip 2 is in a horizontal
position.
