Engine:belt layout, R320cdi 4matic, R350, r350 4matic, r550 4matic – Mercedes-Benz R-Class 2008 Owners Manual User Manual
Page 527: Layout of poly-v-belt drive, R 320 cdi 4matic r 350, r 350 4matic, r 550 4matic
526
Technical data

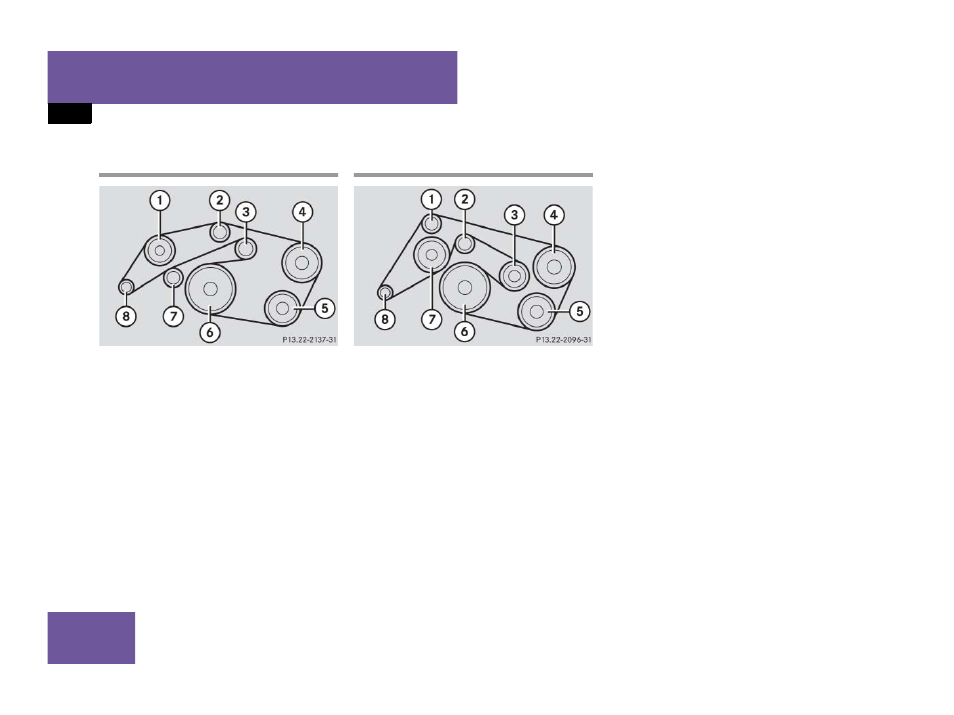

Layout of poly-V-belt drive
R 320 CDI 4MATIC
1 Coolant pump
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Idler pulley
8 Generator (alternator)
R 350, R 350 4MATIC, R 550 4MATIC
1 Idler pulley
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)
