Controls in detail
Climate control

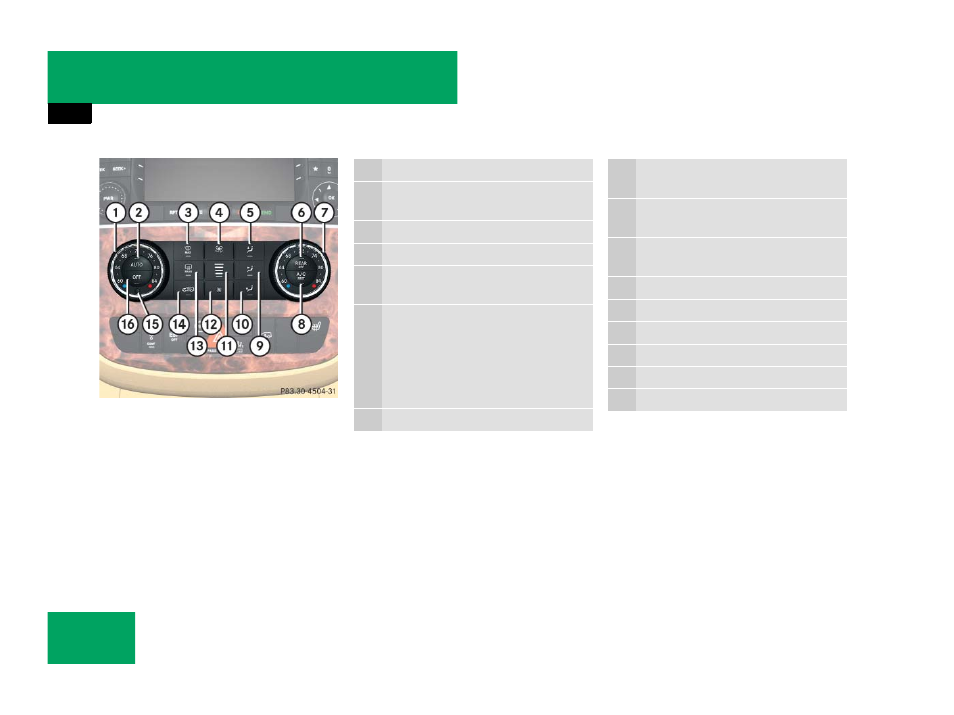

1 Temperature control, left
2 Air distribution and air volume
(automatic, manual)
3 Front defroster
4 Increasing air volume
5 Air distribution (directs air through
the windshield and side air vents)
6 Rear climate control* on/off
Air supply for rear passenger
compartment on/off
: USA only
< Canada only
7 Temperature control, right
8 AC cooling on/off
Residual heat/ventilation
9 Air distribution (directs air through
center and side air vents)
a Air distribution (directs air through
the footwells and side air vents)
b Air volume display
c Decreasing air volume
d Rear window defroster
e Air recirculation
f Interior temperature sensor
g Climate control on/off
