Practical hints
Flat tire

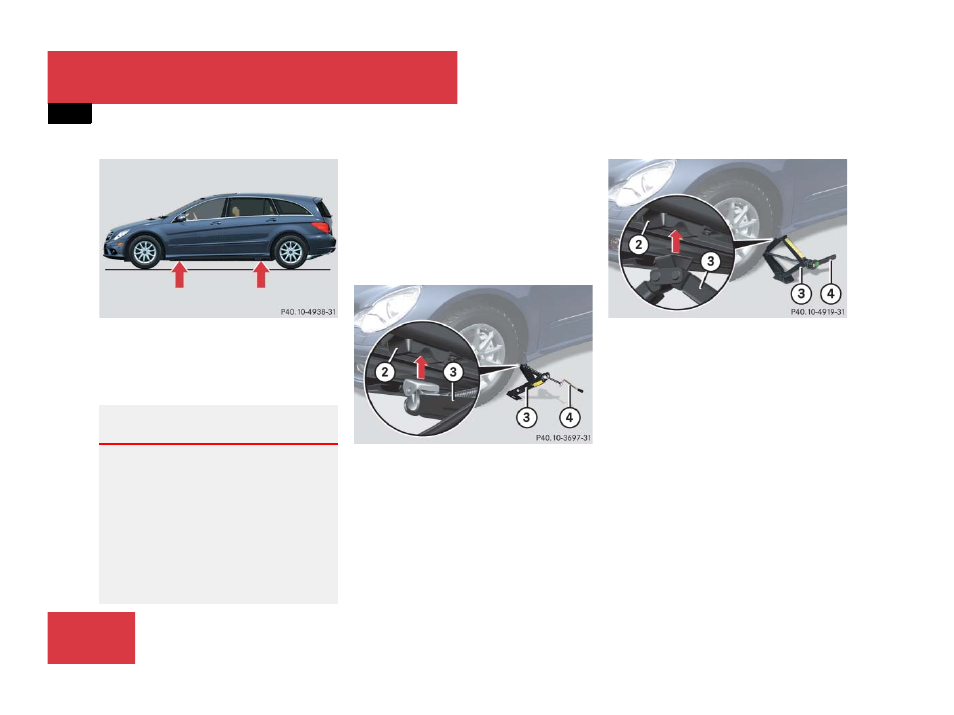

The jack take-up brackets are located
directly behind the front wheel housings
and in front of the rear wheel housings as
indicated by the arrows.
Depending on production date, your vehi-
cle may be equipped with either a
screw-type vehicle jack or a scissors-type
jack, see “Vehicle jack” (
Screw-type jack
2 Take-up bracket
3 Jack
4 Crank
Scissors-type jack
2 Take-up bracket
3 Jack
4 Ratchet
̈
Vehicles with scissors-type jack:
Attach reversible ratchet
4 to vehicle
jack in such a way that the word UP
can be seen.
̈
Place jack
3 on firm ground.
̈
Position jack
3 under take-up
bracket
2 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.
Warning!
G
The jack is designed exclusively for
jacking up the vehicle at the jack take-up
brackets. Make sure the jack arm is fully
seated in the jack take-up bracket.
If you do not position the jack correctly in
the jack take-up bracket, the vehicle can:
ț
fall off the jack
ț
seriously or fatally injure you or others
!
Do not position the jack on the body of the
vehicle, as this may cause damage to the
vehicle.
