520

Practical hints

Fuses

Fuse box in passenger compartment

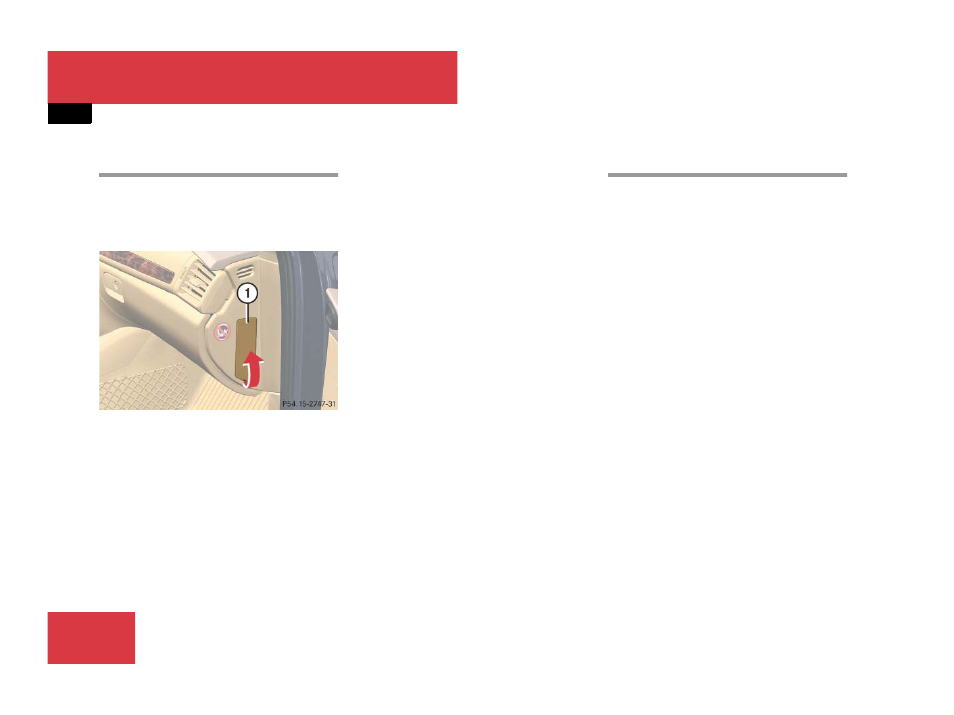

The fuse box is located behind a cover in
the dashboard on the passenger side.

̈

Open the front passenger door.

1 Cover

Opening:

̈

Pull cover

1 in direction of arrow.

Closing:

̈

Clip upper end of cover

1 into open-

ing.

̈

Push on lower end of cover

1 until it

engages.

Emergency engine shut-down

If the engine cannot be turned off as de-
scribed in the “Getting started” section
(

page 66), do the following:

̈

Take the fuse chart from the vehicle
tool kit (

page 467).

̈

Open the fuse box in the engine com-
partment (

page 519).

̈

Remove fuse 120.

Find its location in the fuse chart.

!

Do not use sharp objects such as a screw-

driver to open fuse box cover

1, as this could

damage it.

i

R 550 4MATIC: Remove fuse 114 to

shut-down the engine. Find its location in the
fuse chart.
