519

Practical hints

Fuses

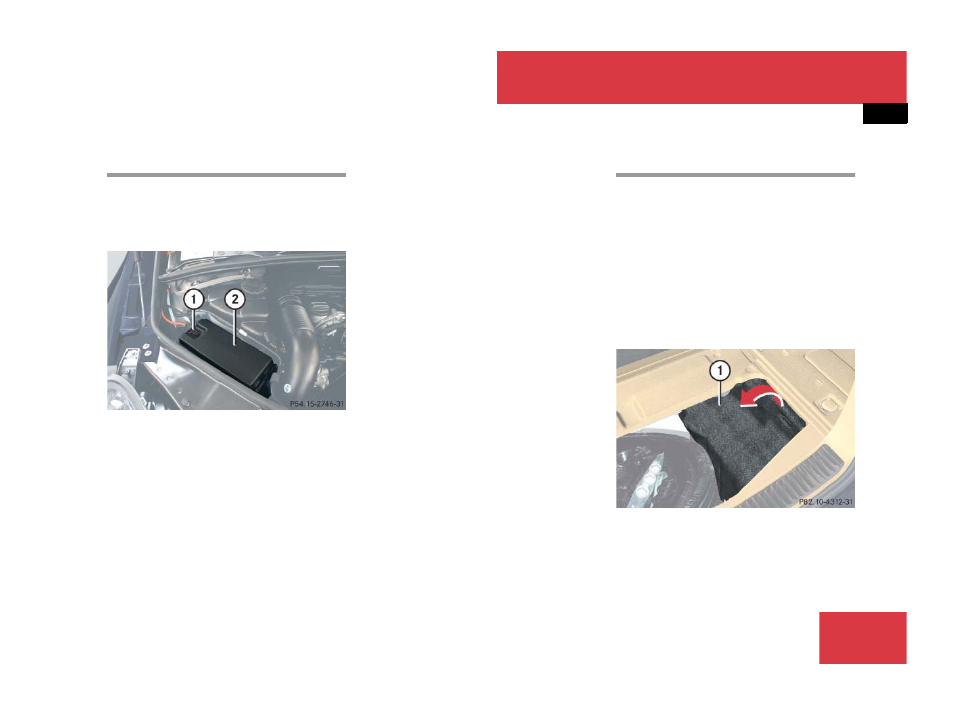

Fuse box in engine compartment

The main fuse box is located on the pas-
senger side of the engine compartment.

̈

Open the hood (

page 356).

1 Clamp
2 Main fuse box cover

̈

Release clamp

1.

̈

Lift fuse box cover

2 up.

̈

Install fuse box cover in reverse order.

̈

Close the hood after checking or re-
placing fuses (

page 358).

Fuse box in cargo compartment

The fuse box is located under the cargo
compartment cover on the right-hand side
of the spare wheel well.

̈

Open the tailgate (

page 119).

̈

Lift the cargo compartment cover
(

page 467).

̈

Secure cargo compartment cover with
securing hook (

page 468).

1 Cover

̈

Fold cover

1 to the left as indicated by

the arrow.

!

The fuse box cover must be installed

properly to prevent moisture and/or dirt from
entering the fuse box and possibly impairing fuse
operation.
