La-Z-Touch ® 6-Motor Massage & Heat Recliner

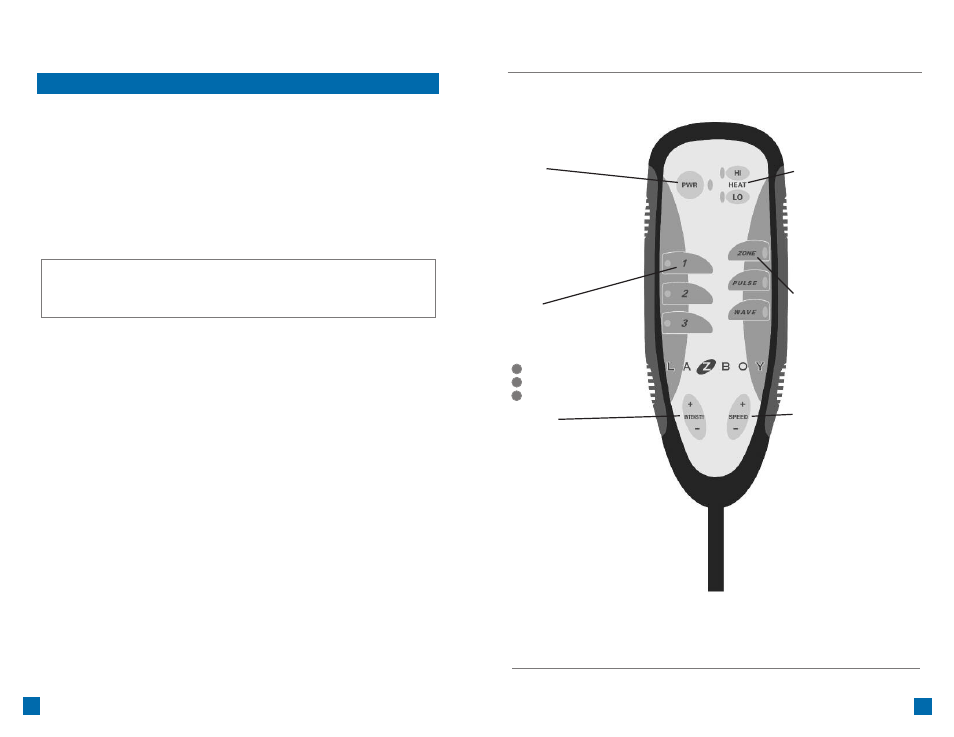

Operating Instr uctions:
POWER
Activates system w hen
button is backlit with LED.
Press once for 15-min.
timer. Press and hold
down for 30-min. timer.
NOTE: To restart unit
after timer shuts off,
press either ZONE
or PWR button.
ZONES
Activates any or all
zones . LED indicates
w hich zone(s) has
been selected.
INTENSITY
Will increase (+) or
decrease (-) intensity
dur ing all modes .
HEAT
Activates heat. HI
activates high setting.
LO activates low setting.
Use independently or
with massage.
NOTE: Activates the 30
minute timer. To restart,
press HI or LO button.
MODES
ZONE - Choose any or
all zones for massage.
PULSE - Massage tur ns
on and off to simulate
a pulsing action.
WAVE - Massage moves
up and down in a
wave-like action.
SPEED
Controls pulsing
frequency of massage
in PULSE mode and
controls velocity as it
cycles through in
WAVE mode.
Press (+) to increase
and (-) to decrease.
1 Upper Back
2 Lower Back
3 Upper Thigh
La-Z-Touch ® 6-Motor Massage & Heat Recliner
Operating Instr uctions:
Review Important Safety Instructions at the front of this booklet before operating.
13 12
LA-Z-TOUCH ® 6-MOTOR MASSAGE & HEAT TRANSFORMER SPECIFICATIONS:
Input: AC 120V 60 Hz 36 W
Output: AC 12V 2000mA
Save These Instr uctions
Plug in the Power Transformer. Make sure there is enough slack in the cord running
from the chair to the outlet to allow for rocking and reclining. Never stretch or
strain a cord.
NOTE: Automatic Timer Operation
The system has an automatic timer that will shut off the MASSAGE and HEAT
functions after a pproximately 15 to 30 minutes of operation.
• Pushing down on the POWER button or either zone button will restart the massage.
• Pushing down on the HI or LO heat button will restar t the heat.
• When you are finished, make sure to push the POWER button and the
HI or LO heat button (if activated) to tur n the system off.
• The timer will also reset if you unplug the Power Transformer or if there is a power outage.
NOTICE:
The massage and heat functions may start automatically when
electrical power is restored after a power outage. The timer should automatically
shut down the massage and heat within 15 to 30 minutes. There should be no risk
of injury or damage if this happens.
Troubleshooting for Units with 6-Motor Massage & Heat
There are no user maintenance or repair requirements . If the massage or heat
function does not wor k:
1. Make sure the Automatic Timer Operation has not been activated. Press the
POWER button to restar t the massage. Press the HI or LO heat button to restar t
the heat.
2. Make sure the Power Transfor mer is plugged into an electr ical outlet.
3. Make sure the electr ical outlet is wor king. For example, make sure there are
no blown fuses or tr ipped circuit breaker s .
4. Make sure all the connector s are secured; refer to the Assembly Instr uctions .
5. Make sure that the electr ical cords are not cr imped or pinched. Make sure
the electr ical cord or plug is not damaged. If the massage system still does
not operate proper ly, contact your dealer for instr uctions on retur ning the unit
for examination and repair. Except for replacement of the Power Transfor mer,
never attempt to make any repairs or adjustments yourself.
Power Transfor mer Replacement
If the Power Transfor mer must be replaced:
1. Unplug the Power Transfor mer from the electr ical outlet.
2. Locate the Power Transfor mer connection; refer to the Assembly Instr uctions .
Gently pull the connector s a par t to disengage.
3. Push the replacement Power Transfor mer connector into the mating connector;
refer to the Assembly Instr uctions . Make sure the connectors are secured with
no gaps between them.
