MSM-LP / BIOS Operation
www.kontron.com 47

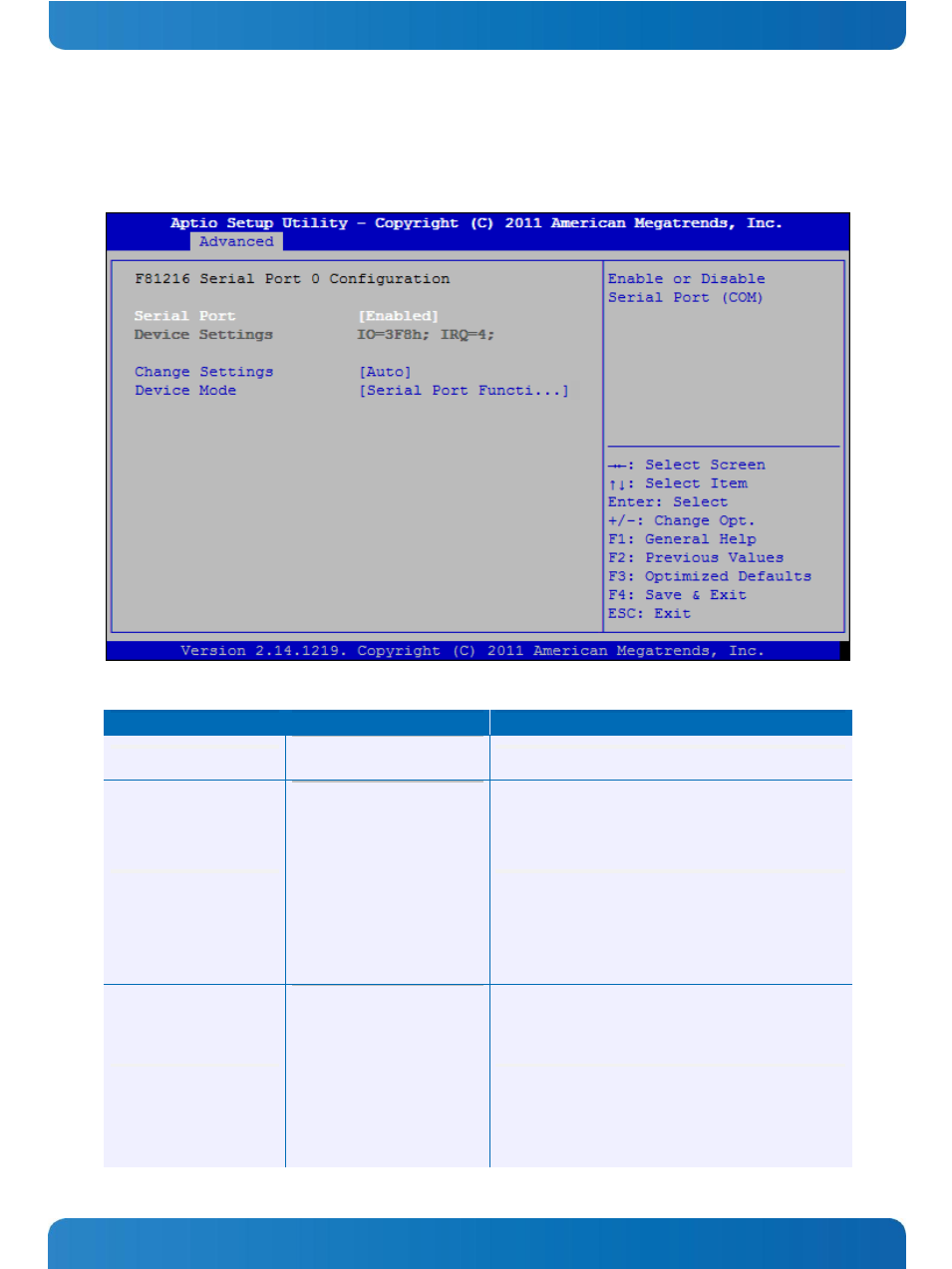

F81216 Serial Port X Configuration
Feature Options Description
Serial Port
Enabled
Disabled
Enable or Disable Serial Port (COM).
Change Settings
Auto
IO=3F8h; IRQ=4;
IO=3F8h; IRQ= 3, 4, 5, 6, 7, 10,
11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10,
11, 12;
IO=3E8h; IRQ= 3, 4, 5, 6, 7, 10,
11, 12;
IO=2E8h; IRQ=3, 4, 5, 6 , 7, 10,
11, 12;
Select an optimal Setting for Super IO device.
Device Mode
Serial Port Funktion Mode
IR Mode, Pusle 1.6 us, Full
Duplex
IR Mode, Pusle 1.6 us, Half
Duplex
IR Mode, Pusle 3/16 Bit Time,
Full Duplex
IR Mode, Pusle 3/16 Bit Time,
Half Duplex
Change the Serial Port mode.
