MSM-LP / MSM-LP Connectors & Jumpers
www.kontron.com 16

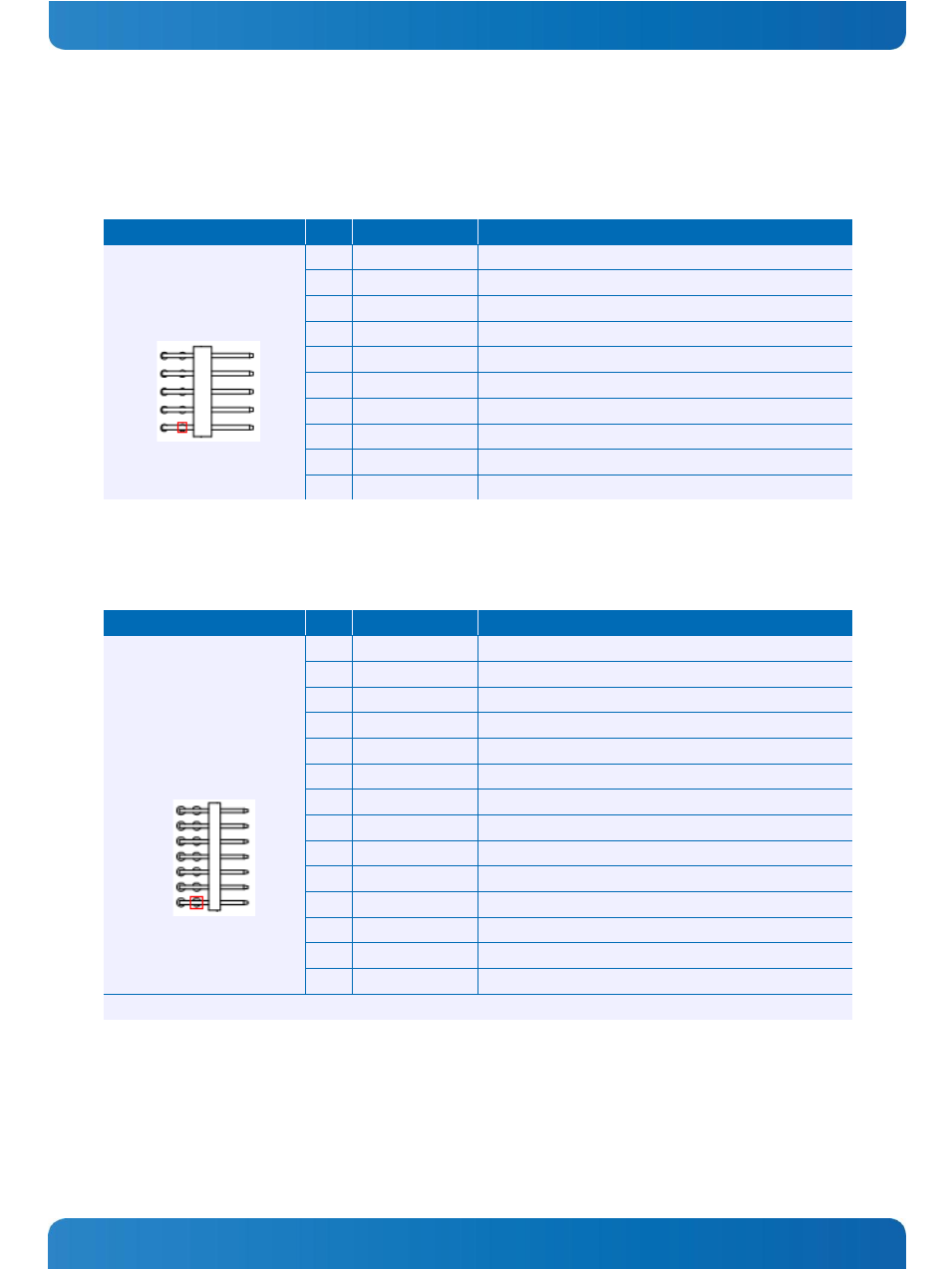

3.2.9 Audio Interface – X20
The audio interface provides stereo analogue and digital audio signals.
Header Pin Signal Name Function
2.00mm grid
1 LINE_R Line right
2 GND_A Analogue ground
3 LINE_L Line left
4 MIC_R Mic right
5 GND_A Analogue ground
6 MIC_L Mic left
7 V5 Power +5V
8 SPDIF_IN Digital audio input
9 GND Ground
10 SPDIF_OUT Digital audio output
3.2.10 LAN Interface – X60/X61
Two Gbit Ethernet ports are defined. Suitable transformers must be provided externally.
Header Pin Signal Name Function
2.00mm grid
1 GbEx_MDI0N Bidirectional pair 0 negative
2 GbEx_MDI0P Bidirectional pair 0 positive
3 GbEx_MDI1N Bidirectional pair 1 negative
4 GbEx_MDI1P Bidirectional pair 1 positive
5 GbEx_LED0 LED Link
6 V1.8 Center voltage
7 GND Ground
8 V3.3 Power +3.3V
9 GbEx_LED1 LED activity
10 GbEx_LED2 LED link 100
11 GbEx_MDI2N Bidirectional pair 2 negative
12 GbEx_MDI2P Bidirectional pair 2 positive
13 GbEx_MDI3N Bidirectional pair 3 negative
14 GbEx_MDI3P Bidirectional pair 3 positive
x is the number of the GbE port (GbE1: x -> 1)
