MSM-LP / MSM-LP Connectors & Jumpers
www.kontron.com 10
3.2 Connector Descriptions – Top
Warning: On system boards the pin out is mirrored due to assembling of connectors on bottom side!
The description is applicable on view from top, if system pin headers are viewed from bottom; even and odd pin
numbers must be swapped 1<->2, 3<->4, 5<->6, 7<->8, 9<->10, 11<->12, 13<->14, 15<->16.

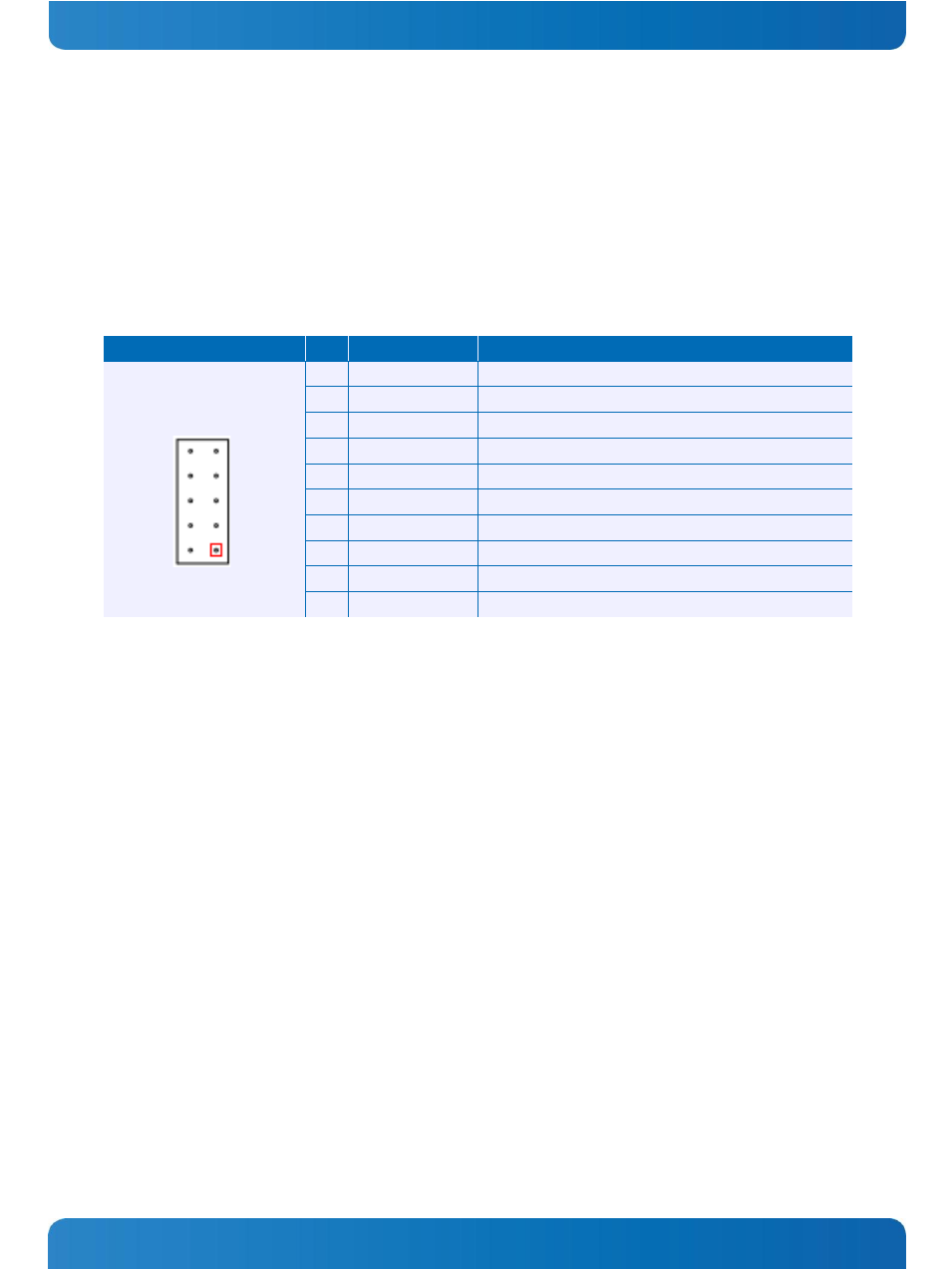

3.2.1 CRT Interface – X50
The board provides an onboard analogue CRT interface.
Header Pin Signal Name Function
2.54mm grid
1 GND Ground
2 RED Red video signal
3 NC Not connected
4 GREEN Green video signal
5 NC Not connected
6 BLUE Blue video signal
7 CRT_DDATA DDC data
8 CRT_HSYNC Horizontal sync
9 CRT_VSYNC Vertical sync
10 CRT_DCLK DDC clock
