MSM-LP / MSM-LP Connectors & Jumpers
www.kontron.com 11
3.2.2 SATA Interface – X70/X71
The board layout supports two SATA 300 interfaces. It is not intended that the standard SATA connectors are
assembled from the bottom side. Any connections to a baseboard or to a system I/O must be done with standard
cables.

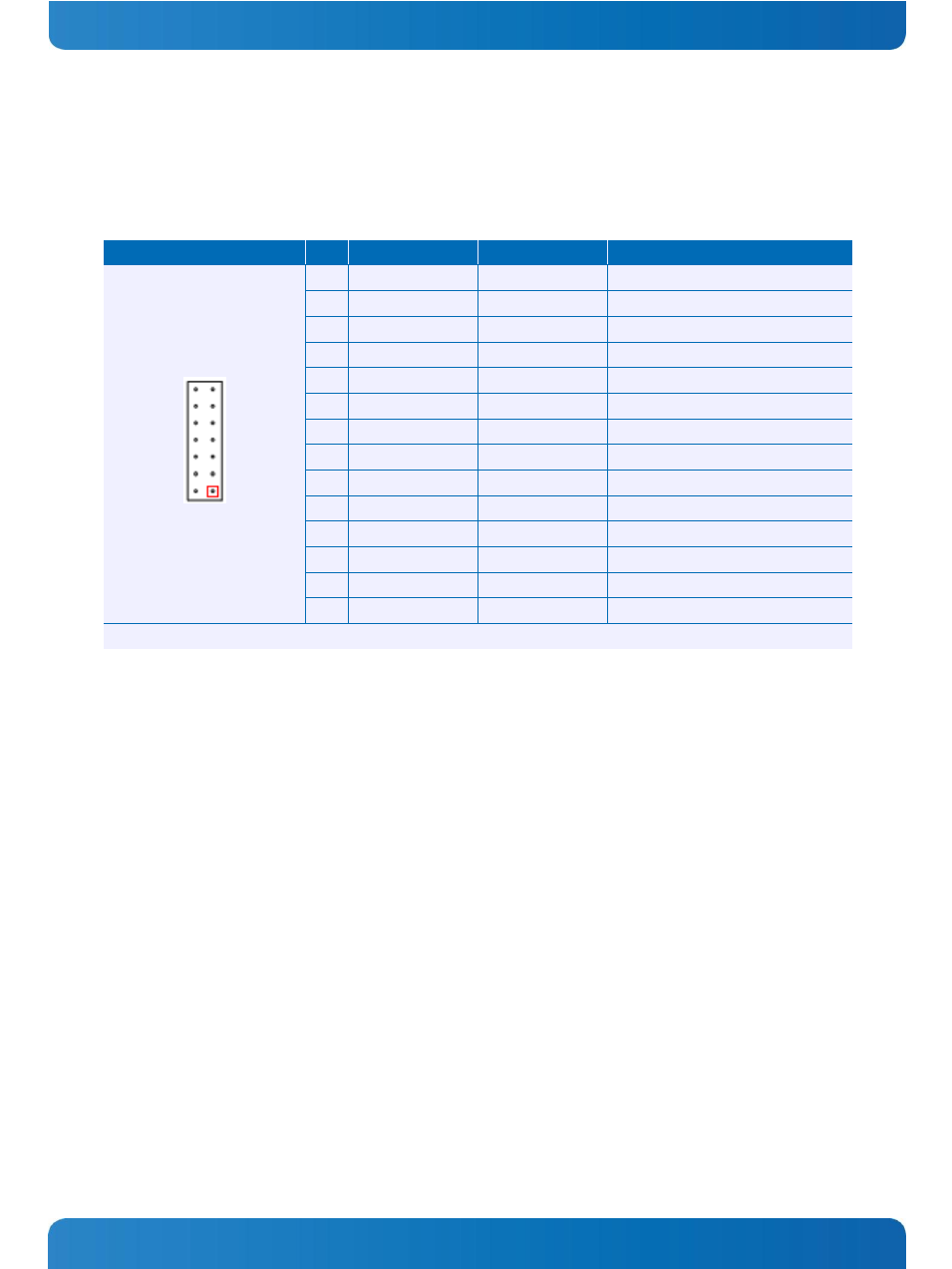

Header Pin Signal Name SATA Connector Pin Function
1.27mm grid
1 GND Ground
2 GND 1 Ground
3 SATAx_TXP 2 Data transmit positive
4 NC NC
5 SATAx_TXN 3 Data transmit negative
6 NC NC
7 GND Ground
8 GND 4 Ground
9 SATAx_RXN 5 Data receive negative
10 NC NC
11 SATAx_RXP 6 Data receive positive
12 NC NC
13 GND Ground
14 GND 7 Ground
x is the number of the SATA port (SATA1: x -> 1)
