Power Supply

KTT20/pITX User's Guide

Warning: Do not overload the onboard system voltage +3.3V resp. 1.8V (microSD

TM

card socket, digital I/O connector). The maxi-

mum current should not exceed 250mA.

Note:

1)

To protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

15.3 Default Power Configuration

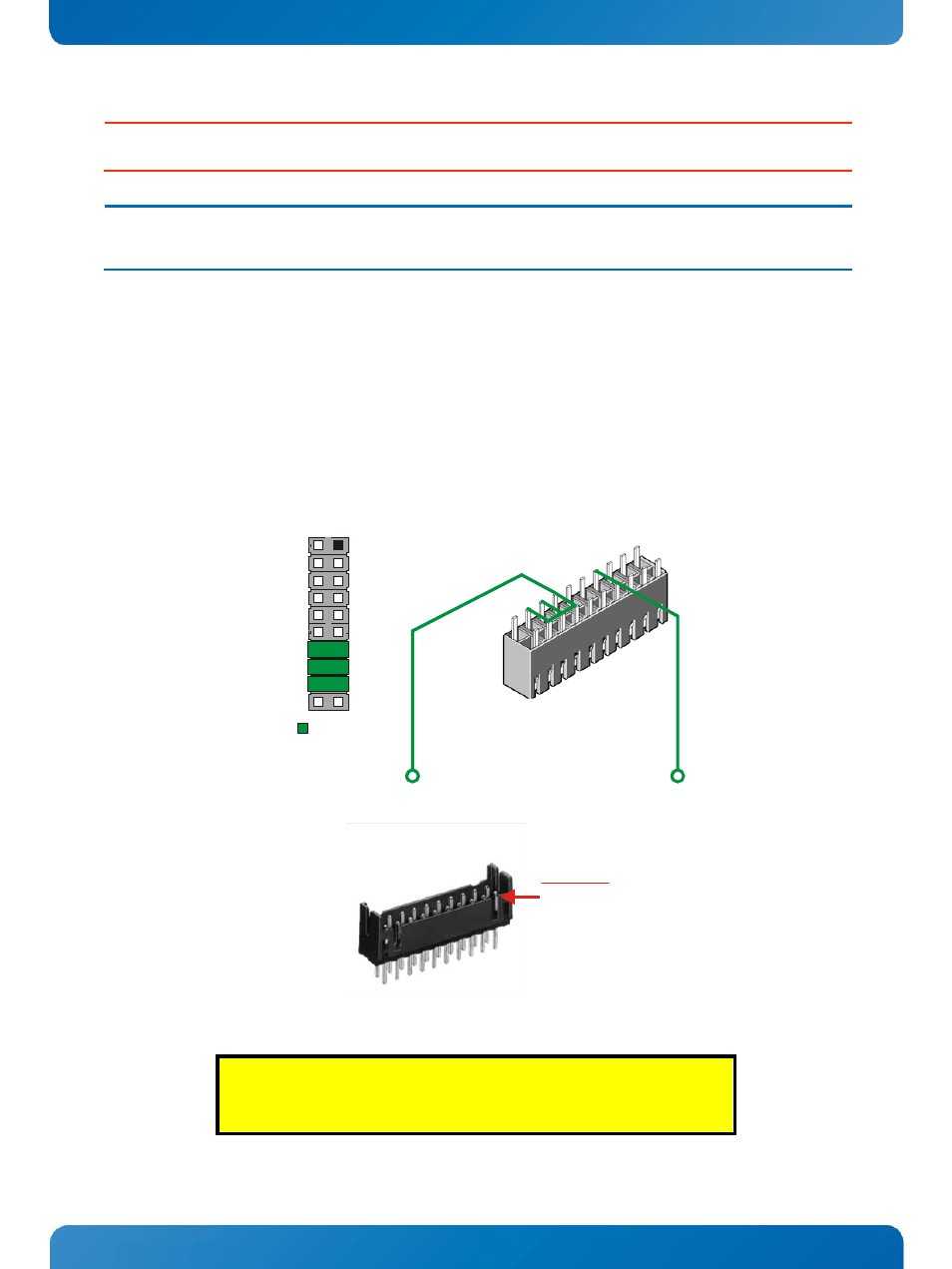

In the delivery state the three short circuit jumpers are set (DC power jacket configuration). As far as
possible all three pins should be used (each VCC_IN and VCC) to minimize the current load per pin.

19

1

2

20

DC Power Jacket Configuration

System

(short circuit jumper needed)

19

20

2

1

External Power Supply Configuration

GND

VCC

+

--

Power Supply Input (

)

only +5V

OR

Top view

Pin 1 differs

from normal

position

ATTENTION


CAUTION!

If you use an external power supply do not use another voltage then +5V DC.
