KTD-S0044-G Page 10 Equipment Design Rule
KTT20/pITX User's Guide
4 Equipment Design Rule
If you want to change software features, repair a corrupted bootloader or for service purposes analyze the
operating system serial output you should provide the following two interfaces:

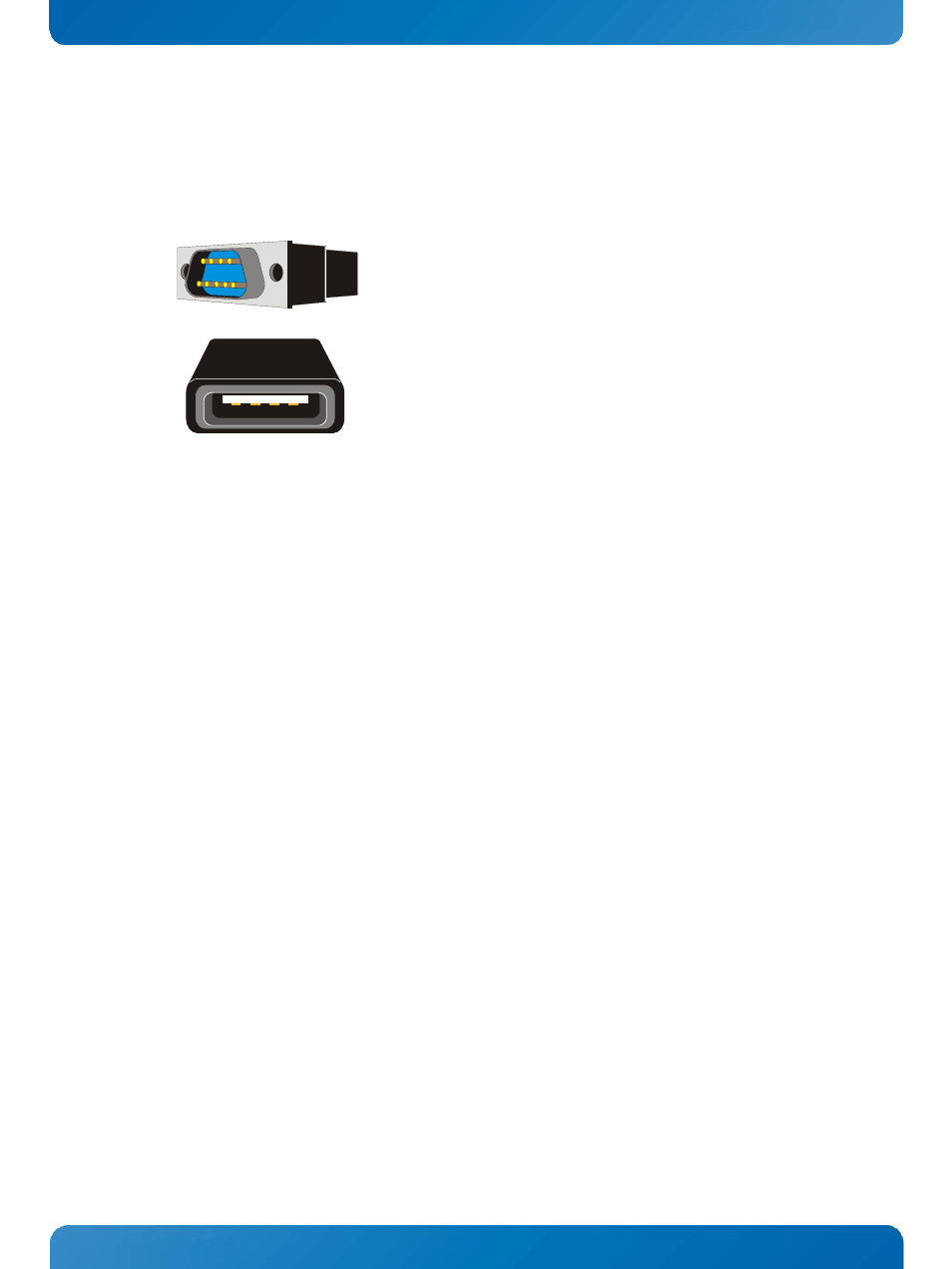

Serial interface UARTC/UART3 on connector J2202
USB client interface on connector J1900
5 Getting Started
Getting started with the KTT20/pITX is easy. Take the following steps:
Connect a DVI ® monitor to the DVI ® connector.
† Plug a keyboard and/or mouse to the USB connector(s).
‡ Attach a microSD TM card or a USB key to the corresponding connector, e.g. with a Linux ® ope-
rating system.
ˆ Connect the power supply to the KTT20/pITX power supply connector.
‰ Turn on the board by shortening the power button pins on power front panel header (J900)
for minimal two seconds.
