18 AT8060
www.kontron.com

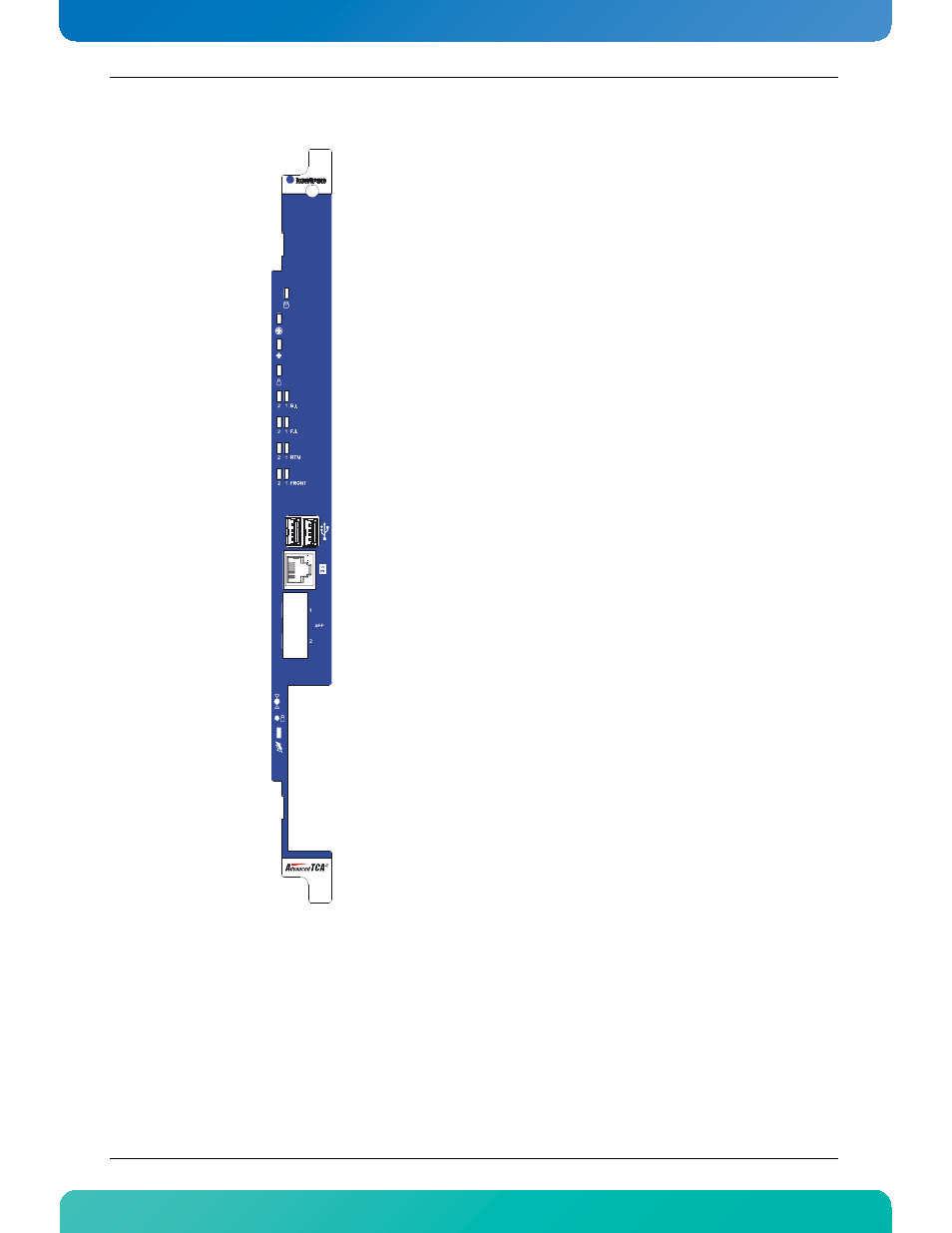

Figure 2-2:Faceplate LEDs
Hot Swap (Blue)
Solid On (100 % on): FRU Inactive
Long Blink ( 90 % on): FRU Activation Request
Solid Off ( 0 % on): FRU Activation In Progress / FRU Active
Short Blink ( 10 % on): FRU Deactivation Request / FRU Deactivation In Progress
Out of service (Red/Amber) [ default : Red ]
Solid On : MMC in reset
Fast Blink (~50 % on) : MMC upgrade/rollback in progress
Application Defined : May be controlled by application using PICMG API
Health Led (Amber/Green) [ default : Green ]
Off : Payload power down
Green : Health Ok
Amber : Health Error (Critical)
Application Defined : May be controlled by application using PICMG API
Hard Disk Activity Led (Green)
Blink : Hard Disk Activity
FI Led (Green/Amber)
Green On : Link 10Gbit
Green Blink : Activity 10Gbit
Amber On : Link 1Gbit
Amber Blink : Activity 1Gbit
BI Led (Green/Amber)
Green On : Link 1Gbit
Green Blink : Activity 1Gbit
Amber On : Link 10-100Mbit
Amber Blink : Activity 10-100Mbit
SFP RTM Led (Green/Amber)
Green On : Link 1Gbit
Green Blink : Activity 1Gbit
Amber On : Link 10-100Mbit
Amber Blink : Activity 10-100Mbit
SFP Front Led (Green/Amber)
Green On : Link 1Gbit
Green Blink : Activity 1Gbit
Amber On : Link 10-100Mbit
Amber Blink : Activity 10-100Mbit
