SUPPLY VOLTAGE SELECTION

When using the device for the first time, make sure the applied voltage is correct.
To select the desired value for supply voltage (85-132 Vac or 170-264 Vac), follow the

instructions shown in Picture 1.

NB: put in the relevant housing (see page 24) the fuse suitable for the supply

voltage selected.

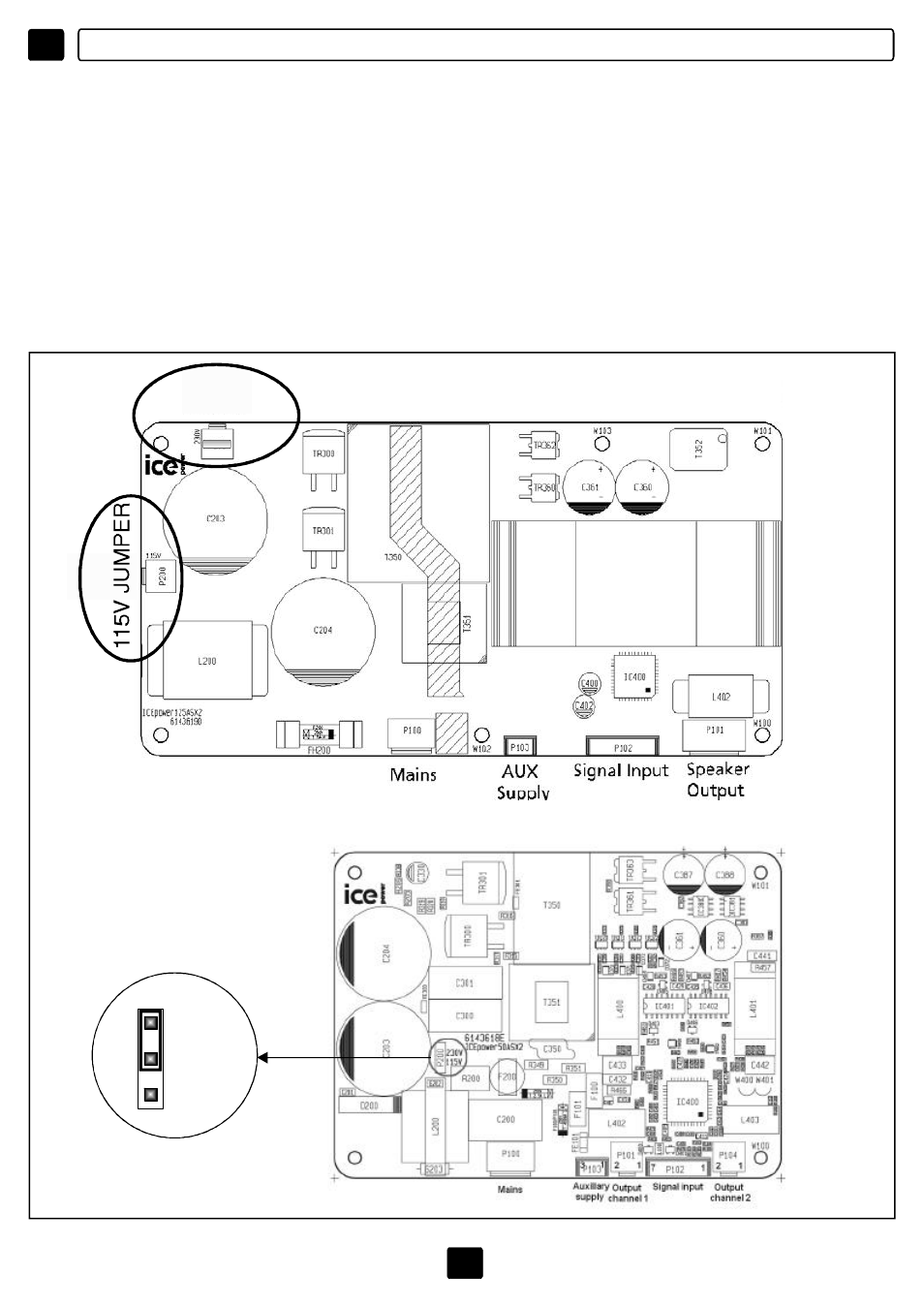

fig.1

MPU 4060

230V
115V

230V JUMPER

MPU 4240 / MPU 4120 / MPU 2120
