CAUTION
THE OUTPUT CONNECTOR HAS BEEN CONNECTED TO 100 V / 42 ohm. TO OBTAIN OTHER
70V OUTPUTS, FOLLOW THE DIAGRAM ON THE COVER OF THE DEVICE. TO ACCESS THE
CONNECTOR, REMOVE THE COVER.
THE INTERNAL PRESET, ACCESSIBLE REMOVING THE UPPER PARTOFTHEDEVICE,MAKES
IT POSSIBLE TO CONFIGURE THE POWER UNITS AS SHOWN BYTHE DRAWING.

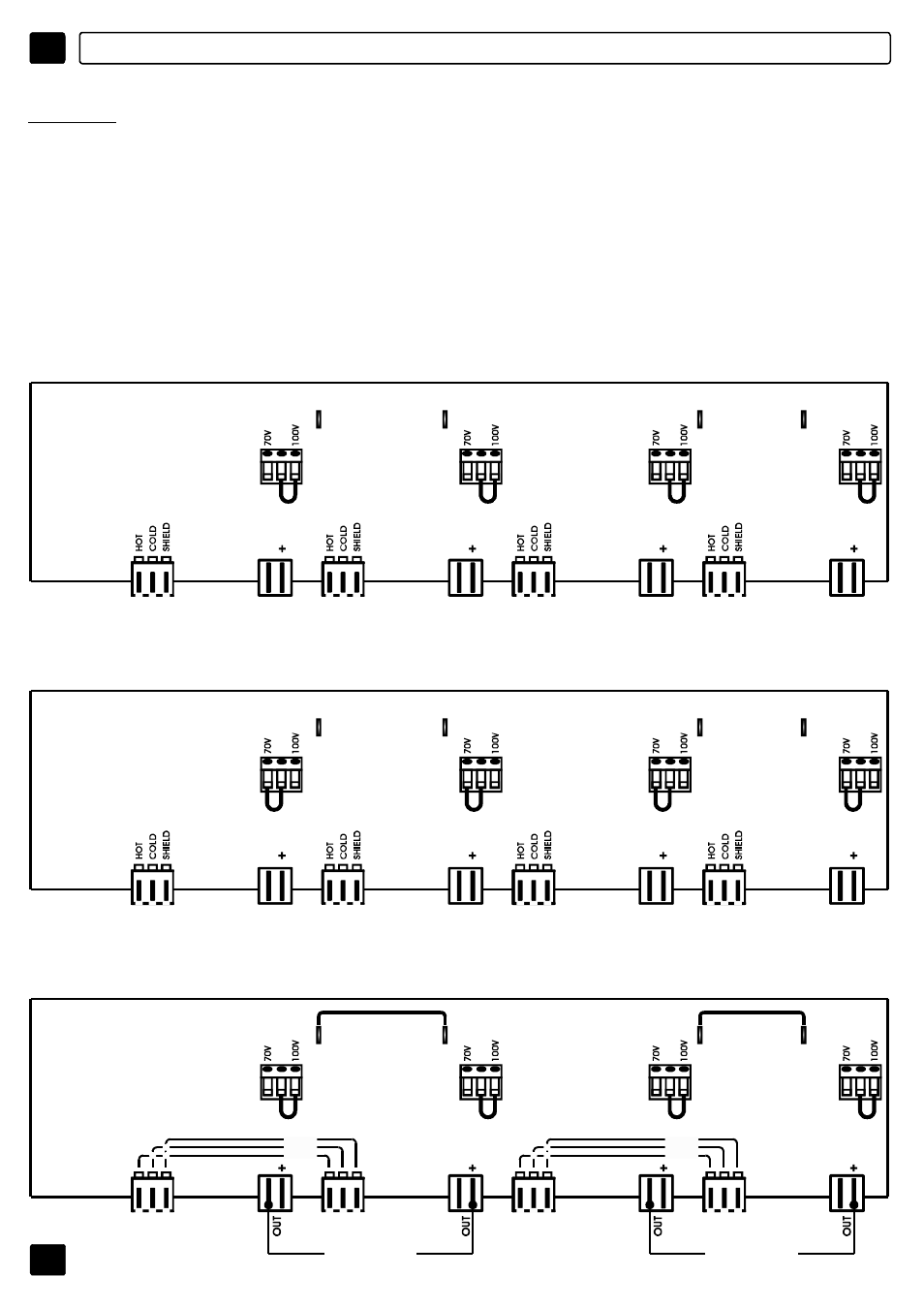

MPU 4240 APPLICATION MODE
INPUT
INPUT
INPUT
INPUT
OUT
OUT
OUT
OUT
SPEAKERS
100V / 240W
OR
42 OHM MIN.
SPEAKERS
100V / 240W
OR
42 OHM MIN.
SPEAKERS
100V / 240W
OR
42 OHM MIN.
SPEAKERS
100V / 240W
OR
42 OHM MIN.
4 x 240W
100V OUT
FS1
FS2
FS3
FS4
M1
M2
M3
M4
J1
J16
J6
J17
J9
J18
J12
J19
0
0
0
0
INPUT
INPUT
INPUT
INPUT
OUT
OUT
OUT
OUT
SPEAKERS
70V / 240W
OR
21 OHM MIN.
SPEAKERS
70V / 240W
OR
21 OHM MIN.
SPEAKERS
70V / 240W
OR
21 OHM MIN.
SPEAKERS
70V / 240W
OR
21 OHM MIN.
4 x 240W
70V OUT
FS1
FS2
FS3
FS4
M1
M2
M3
M4
J1
J16
J6
J17
J9
J18
J12
J19
0
0
0
0
INPUT
INPUT
INPUT
INPUT
SPEAKERS 100V / 480W
OR
Z=21 OHM MIN.
2 x 480W
100V OUT
FS1
FS2
FS3
FS4
M1
M2
M3
M4
J1
J16
J6
J17
J9
J18
J12
J19
HOT
COLD
SHIELD
HOT
COLD
SHIELD
INPUT
SPEAKERS 100V / 480W
OR
Z=21 OHM MIN.
0
0
0
0
UK
APPLICATION MODE
