12

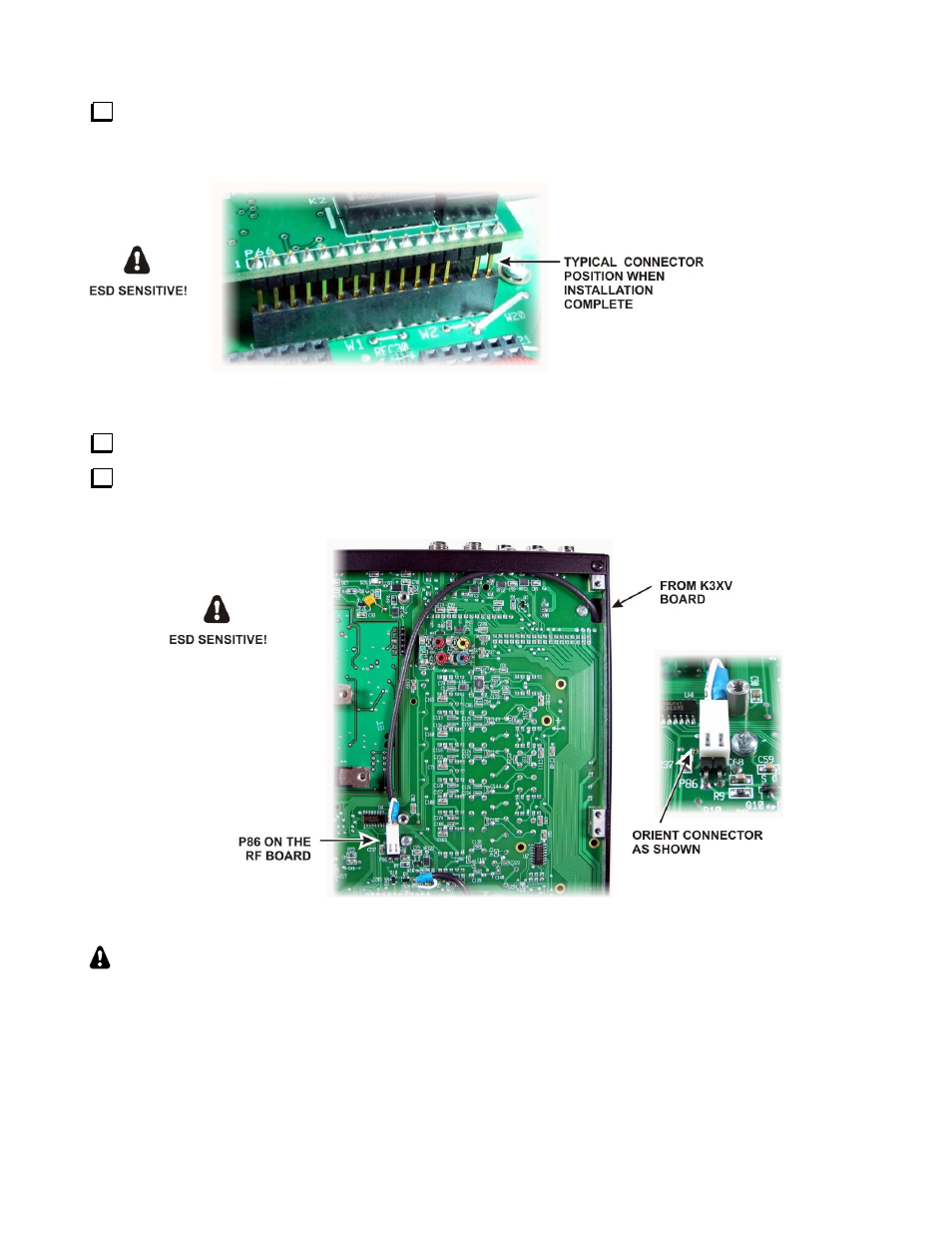

Adjust the depth the KXV3 board connector mates J66 on the RF board so the KXV3 connector panel is
parallel with the back panel. The pins on the KXV3 board connector do not go all the way into J66 as shown in
Figure 11.
Figure 11. Typical Connector Fit.
Tighten the screws and nuts holding the KXV3 to the back panel that you installed earlier (See Figure 10) .
Route the coaxial cable from the KXV3 board to connector P86 on the bottom of the RF board as shown in
Figure 12. Mate the connector to P86 as shown. If the connector does not appear to fit, check to make sure there
are no plastic ridges on the side toward the RF board (see Figure 8).
Figure 12. Routing KXV3 Cable to P86.
SPECIAL NOTE TO KIT BUILDERS:
If you were directed here to install your KXV3
module as part of the overall kit assembly, installation of the KXV3 module is complete. Return to the K3
Kit Assembly Manual where you left off.
