Series 526 Impact Installation Instructions

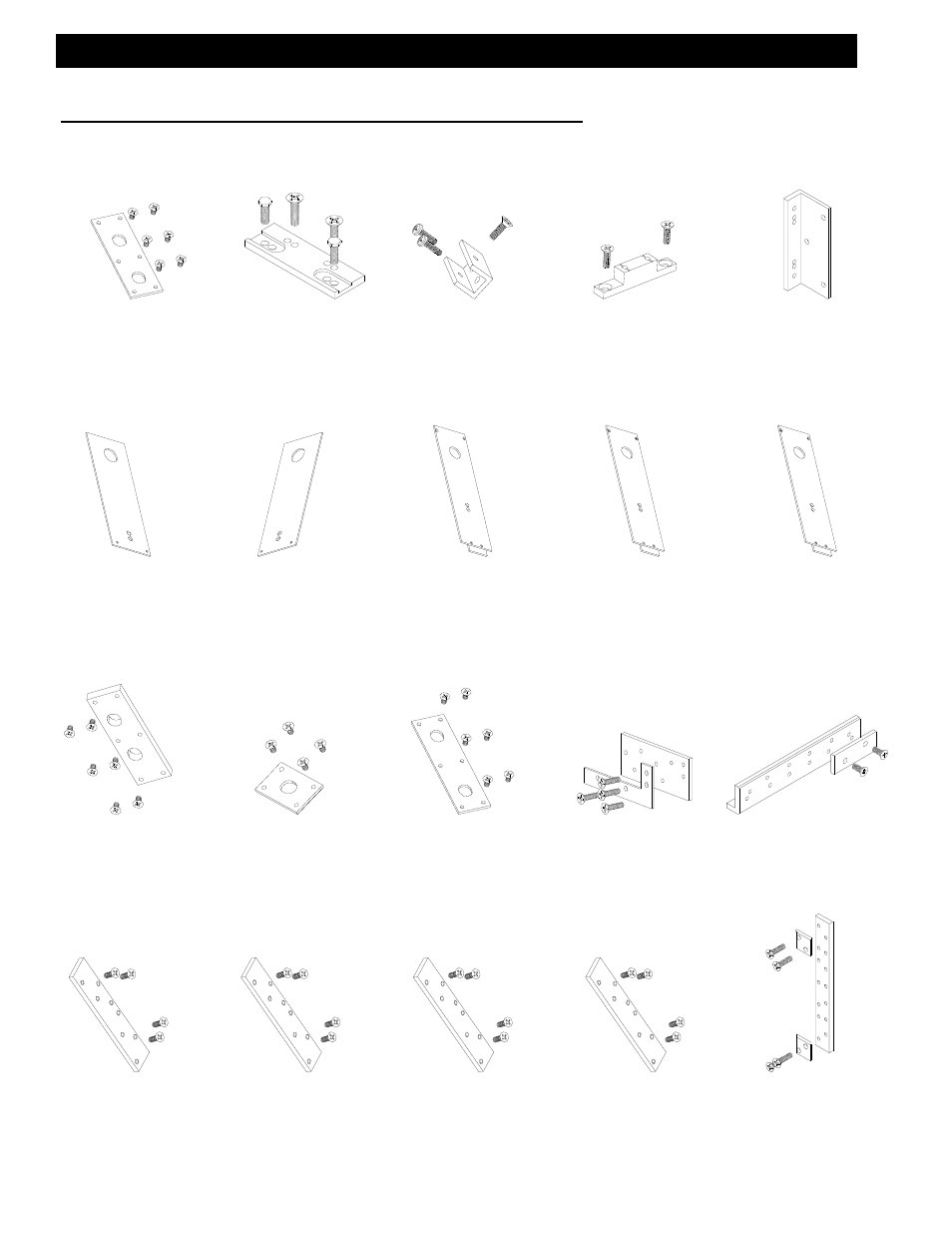

SECTION II: Parts Identification Chart
Miscellaneous:
KP08
Dorma RTS-88 C.O.C.
Support PKG. for Butt
& Cont. Hinges
KP07
Dorma RTS-88 C.O.C.
F-Clip Spacer PKG. for
Butt & Cont. Hinges
K435
Attachment Clip for
Dorma RTS-88 C.O.C.
F-Clip Spacer PKG. for
Offset Pivots
FT16
F-Clip for Dorma RTS-88
C.O.C. at Offset Pivots
Use Fasteners Supplied
With Closer
FT20
RH Cover Plate for
Dorma RTS-88 C.O.C.
at Offset Pivot
(Customer Specify Finish)
FT26
LH Cover Plate for
Dorma RTS-88 C.O.C.
at Offset Pivot
(Customer Specify Finish)
K492
MILL Cover Plate for
Dorma RTS-88 C.O.C.
at Butt & Cont. Hinge
(Customer Specify Finish)
K495
Cover Plate for Dorma
RTS-88 C.O.C. at Butt
& Cont. Hinge
(Clear Anodize)
K496
Cover Plate for Dorma
RTS-88 C.O.C. at Butt &
Cont. Hinge
(Dark Bronze Anodize)
K936
Reinforcing PKG. for
Flush Bolt & 3-Point
Lock @ Head for Pair
Doors
K990
Reinforcing PKG. for
1490 Panic & 3-Point
Lock @ Threshold and
3-Point Lock @ Head
for Single Doors
K987
Reinforcing PKG. for
1490 Panic @
Threshold for Pair
Doors
K999
Backer Plate & Shim
PKG. for 180/MP1
Top Pivots
KP09
Baker Plate & Shim PKG.
for MP2/195 Bottom Pivot
K900
Butt Hinge Backer
PKG. for 4 1/2 X 4
Butt Hinges
(Clear)
K901
Butt Hinge Backer
PKG. for 4 1/2 X 4
Butt Hinges
(Bronze)
K904
Butt Hinge Backer
PKG. for 5 X 4 1/2
Butt Hinges
(Clear)
K905
Butt Hinge Backer
PKG. for 5 X 4 1/2
Butt Hinges
(Bronze)
K968
Door Jamb Mounting
Plate and Spacer PKG.
for M19/MP3
Intermediate Pivot
KP11
3-Point Impact Lock
Strike Package
