EFCO 6/2012 Page 23
Series 526 Impact Installation Instructions

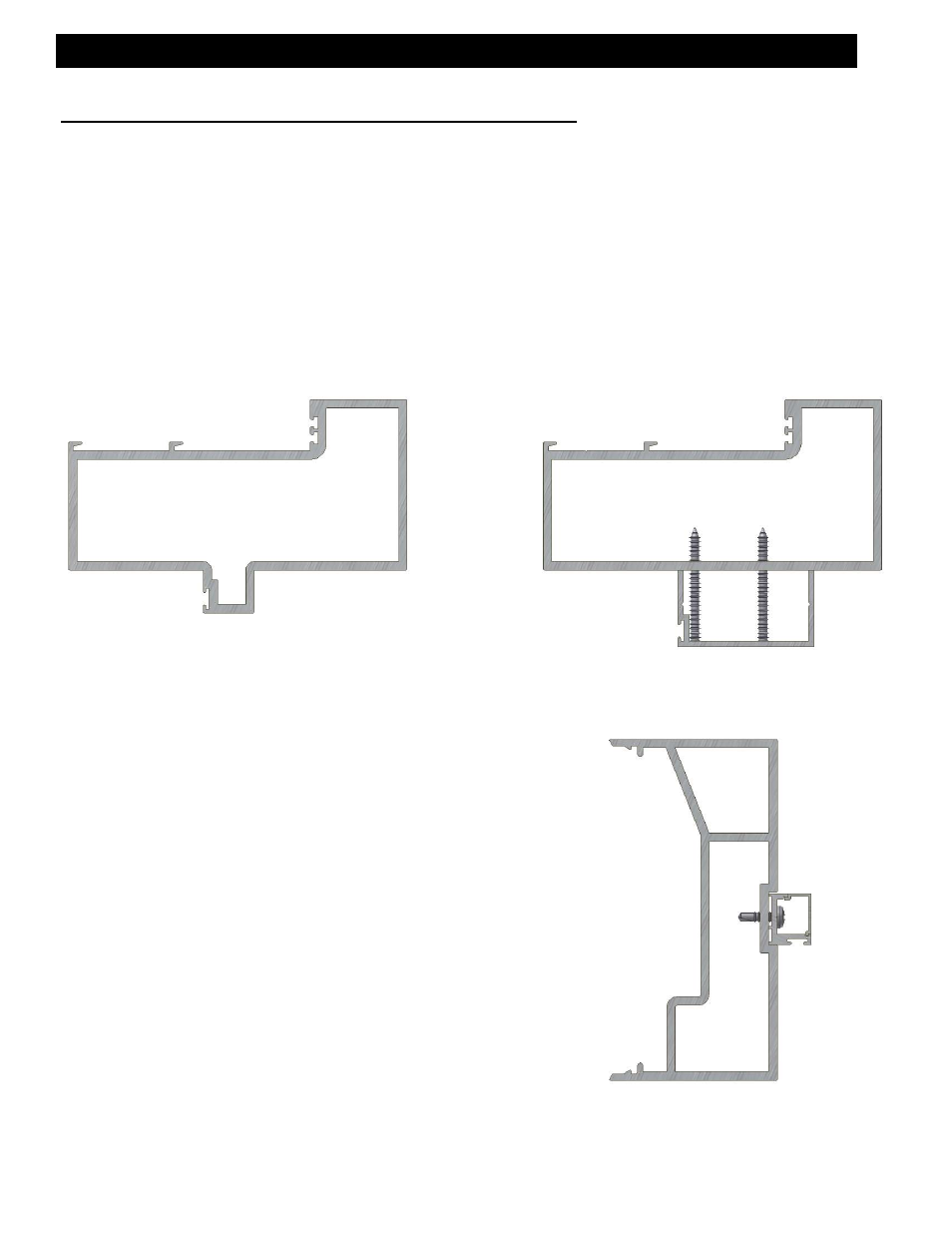

[Fig. 3]
9914
16H4 16H5
9155
4437
[Fig. 4]
SECTION V: Door Frame Installation
Step 4) Door Header Identification
Step 5) Door Jamb Stop Application
Depending on what type closer is used, two different door headers are available. The
header for surface closers has an extruded door stop and will not have a stop applied at
the door header. Concealed Overhead Closers (COC) do not have an extruded stop and
must have a slide arm cover/door stop applied. The 9914 stop is applied with S130 #8
FH fasteners in pre-located holes. Match drill the holes in the stop to the door header.
See figure 3 below for door header identification and stop application.
The door jambs are designed to accept a
screw applied door stop in a recessed area
of the door jamb. The applied door stops
should run from the top of the threshold to
the bottom of the door header stop. They
should be attached with STT6 TEK screws
@ 2" from each end and 9" on center
maximum. After the applied stop is attached,
snap-on the applied stop cover to hide the
attachment fasteners. See figure 4 for door
stop and cover application.
16H3
