EFCO 526 Series User Manual
Page 12
EFCO 6/2012
Page 12
Series 526 Impact Installation Instructions
SECTION III: Fabrication

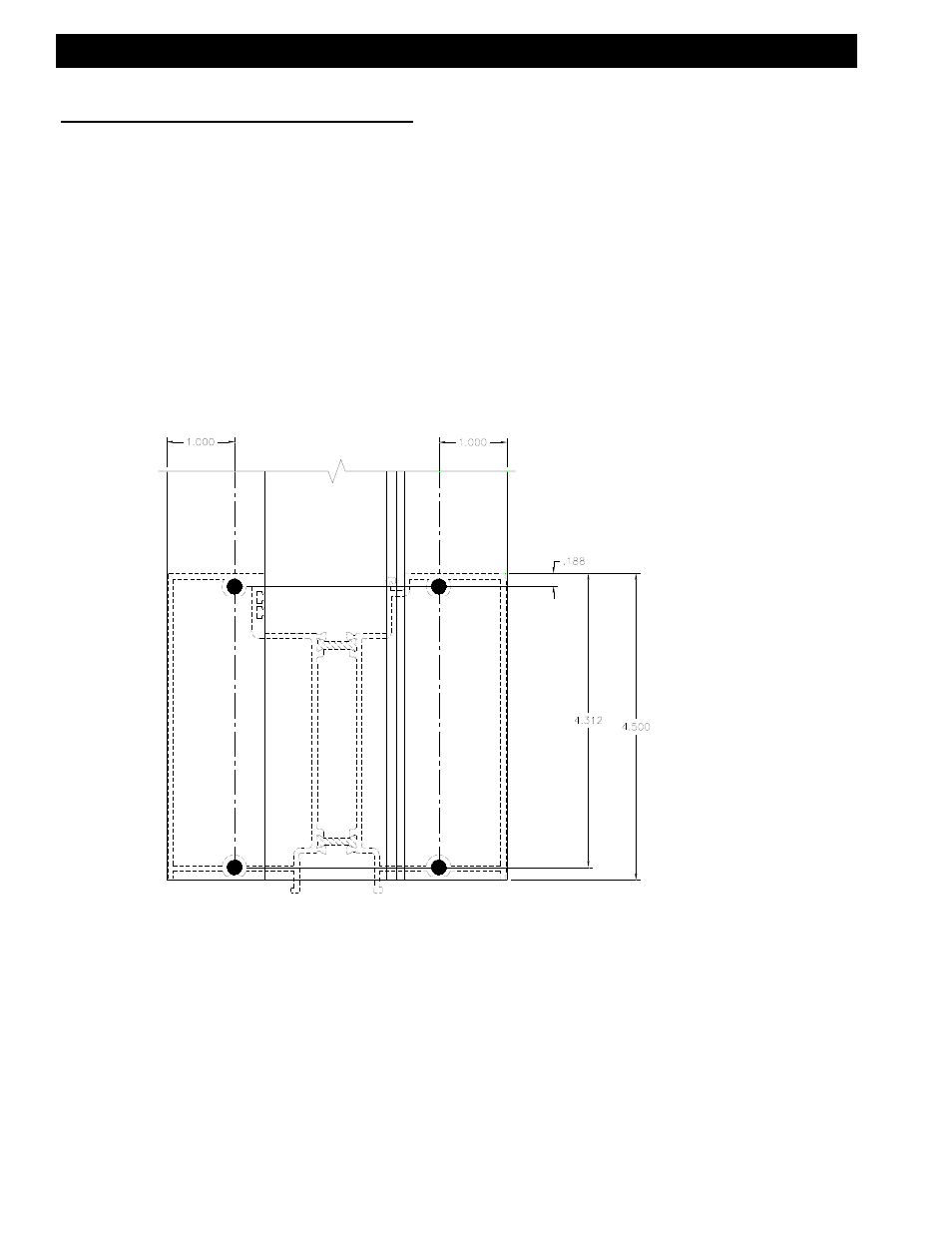

D. Drilling Template for Screw Spline at Verticals
Inside Glazed (4 1/2” Sill)
Use dimensions as shown or cut a short piece of the sill
material to use as a template. Drill with a .221 dia. (#2) drill
at darkened areas only.
Dimension taken
from top of sill.
