EFCO 6/2012 Page 39
Series 526 Impact Installation Instructions
Glass size formulas are D.L.O. + 1 1/8" for both horizontal and vertical D.L.O.s. Glass bite
for all glazing is 9/16". See figure 38 below for horizontal glass size and bite and figure 39
on the next page for vertical glass size and bite.
SECTION VIII: Glazing

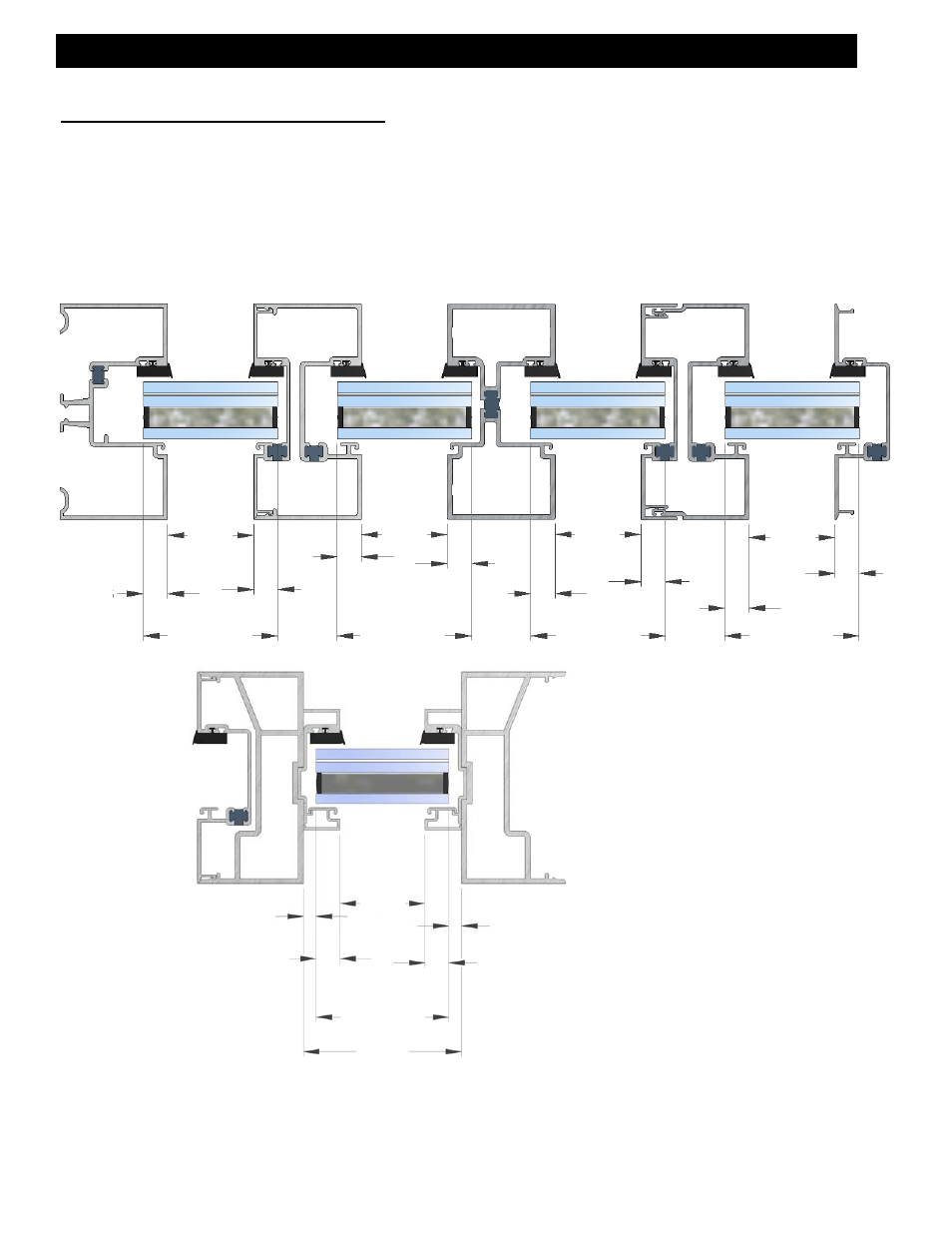

Step 3) Glass Size Formulas and Glass Bite (Verticals)
D.L.O. + 1 1/8
D.L.O. D.L.O. D.L.O. D.L.O.
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
D.L.O. + 1 1/8 D.L.O. + 1 1/8 D.L.O. + 1 1/8
JAMB S.S. VERTICAL S.B. VERTICAL
EXPANSION
VERTICAL
DOOR JAMB
VERT. FILLER
D.L.O.
9/16
9/16
D.L.O. + 1 1/8
[Fig. 38]
DOOR JAMBS
5/16
5/16
D.O.W
D.L.O. = D.O.W. – 5/8”
