A. SCREW SPLINE
SECTION VIII-FRAME INSTALLATION
[FIG. 32]
[FIG. 31]
PAGE 25
CLEAN OFF
EXCESS SEALANT
795
SEALANT
NO SEALANT HERE

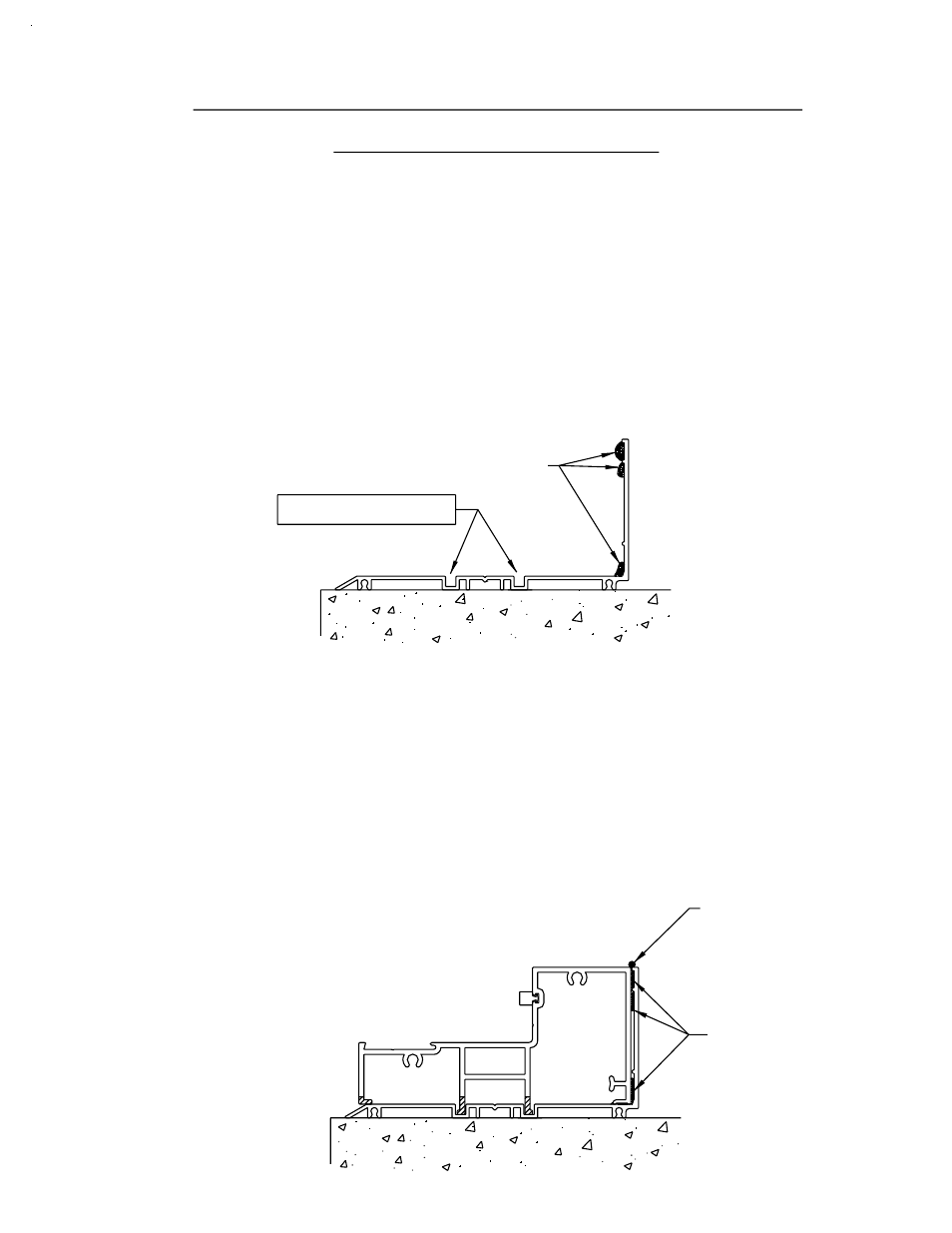

STEP 1) APPLYING SEALANT TO SUBSILL FOR
FRAME INSTALLATION
795
SEALANT
Ensure that enough 795 has been applied to seal the areas shown in
figure 32 below. After the frame has been installed, wipe off all
excess sealant that squeezes out.
795 sealant should only be applied to the subsill immediately prior to
the installation of the frame modules.
Apply 795 or equivalent silicone type sealant to the areas shown in
figure 31 below.
Do not apply sealant to the sill anchor leg receptor area. Excessive
sealant at this area may cause the system to lift up above the subsill
and not seat correctly.
