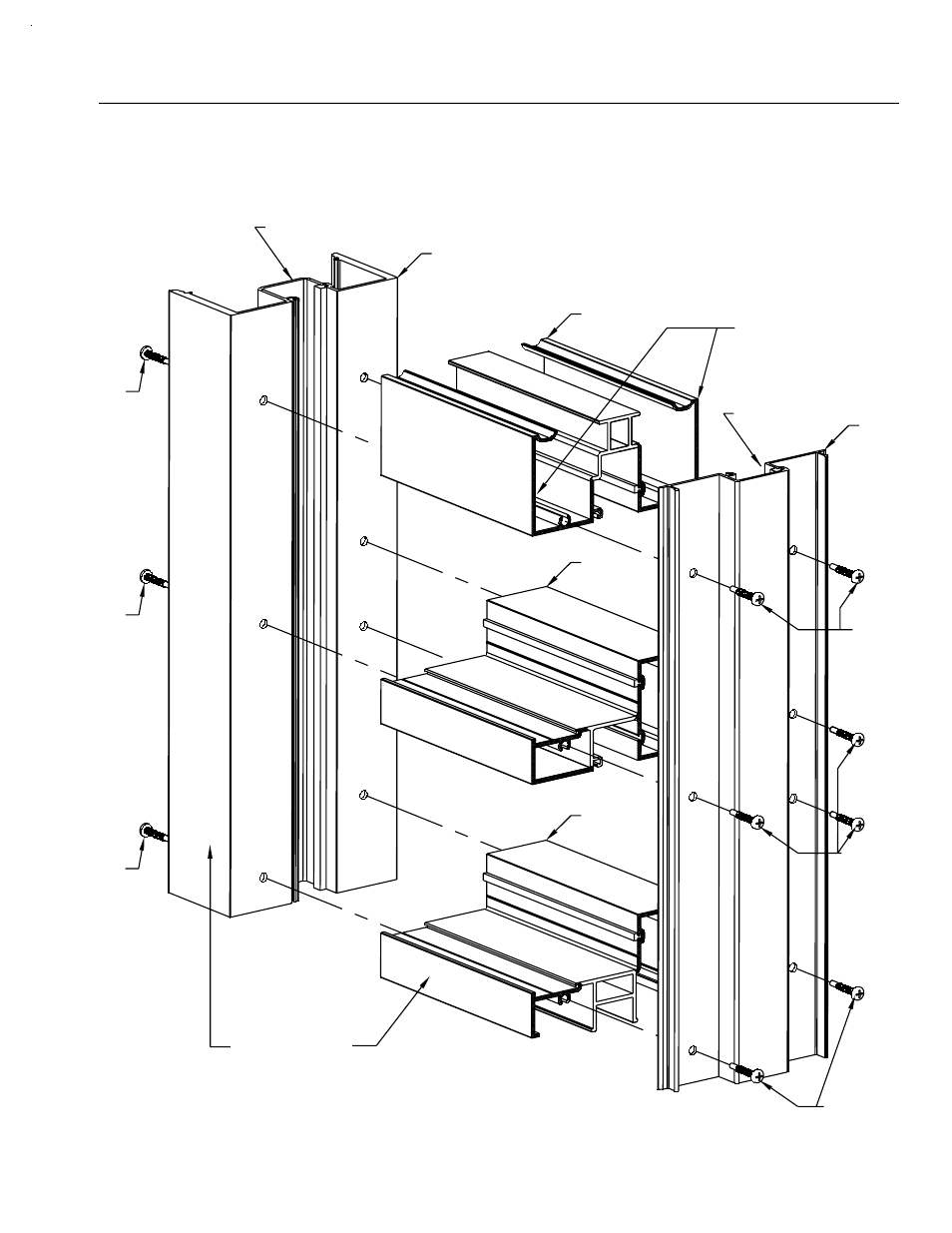

SECTION V-UNIT ASSEMBLY A - SCREW SPLINE

[FIG. 10]

PAGE 13

4481

DEEP
POCKET

BUTTER THE ENDS OF

ALL HORIZONTALS WITH

PTI 707 OR EQUIVALENT
BUTYL TYPE SEALANT

AS SHOWN BY THE

SHADED AREAS PRIOR

TO ASSEMBLY OF THE

UNITS.

STC8

4479

4480

DEEP
POCKET

4491

4475

EXTERIOR FACE

STC8

ENSURE THAT EACH MODULE HAS A DEEP GLAZING
POCKET ON ONE SIDE AND A SHALLOW GLAZING
POCKET ON THE OTHER TO FACILITATE GLAZING
INSTALLATION.

525 IMPACT

DPS 1/2004
