SECTION VI - DOOR FRAME INSTALLATION
[FIG. 14]
4437
9155
4478
9914
PAGE 17
(CONT.)
4483 4484
4486

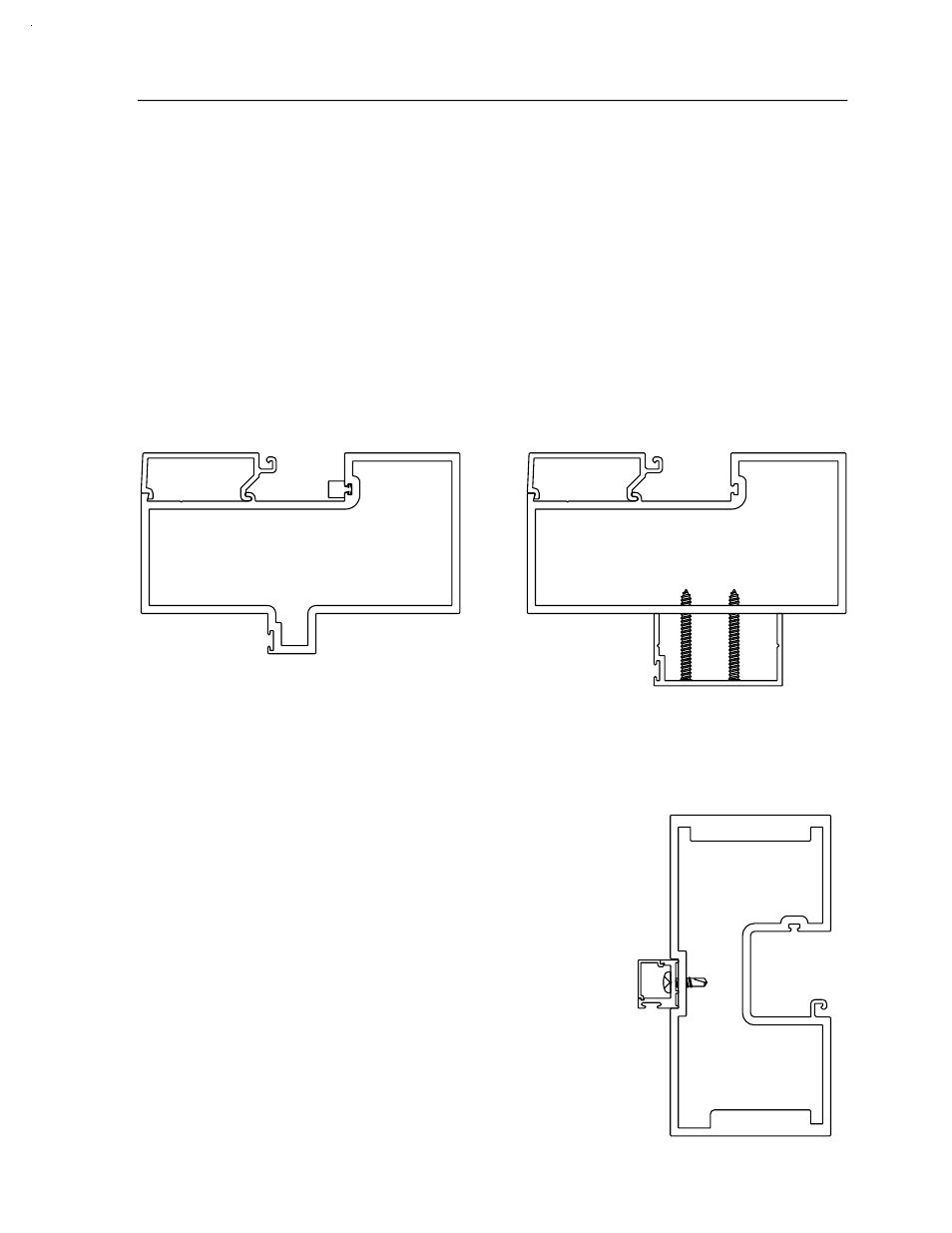

The door jambs are designed to accept a
screw applied door stop into a recessed
area of the door jamb. The applied door
stops should run from the top of the
threshold to the bottom of the door
header stop. They should be attached
with STT6 TEK screws @ 2" from each
end and 9" on center Maximum. After the
applied stop is attached, snap on the
applied stop cover to hide the attachment
fasteners. See figure 15 on this page for
door stop and cover application.
STEP 5) DOOR JAMB STOP APPLICATION
Depending on what type closer is used, two different door headers are
available. The header for surface closers has an extruded door stop and
will not have a stop applied at the door header. Concealed Overhead
Closers (COC) do not have an extruded stop and must have a slide arm
cover/door stop applied. The 9914 stop is applied with #8 FH fasteners in
prelocated holes. Match drill the holes in the stop to the door header.
See figure 14 below for door header identification and stop application.
STEP 4) DOOR HEADER IDENTIFICATION
4486
