EFCO CORPORATION 7/2012 PART NO. Y302 Page 7 of 26
Series 5600 Outside Glazed Installation Instructions

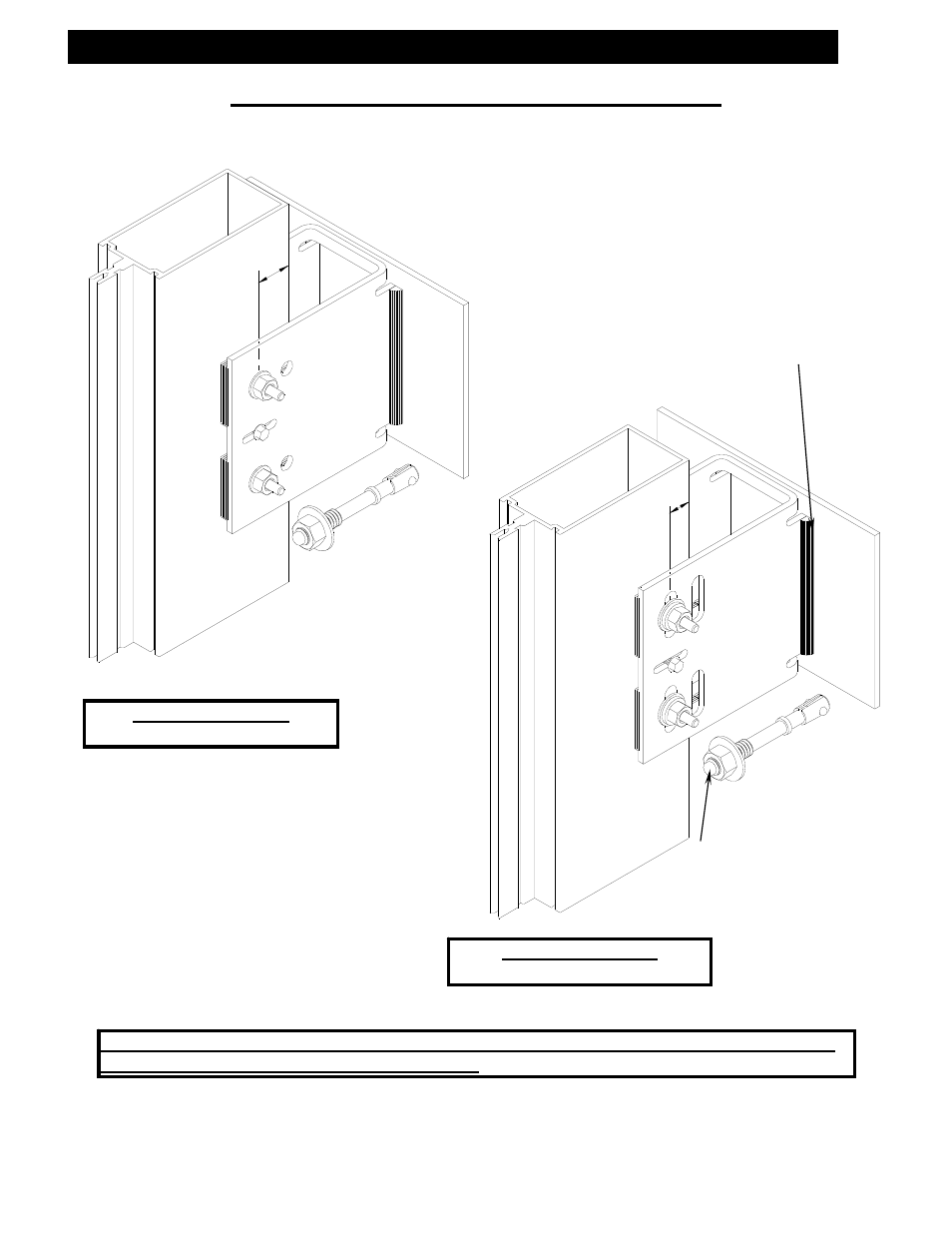

Section III: Anchor Installation
1" MIN.
1" MIN.
Dead Load Anchor
Bolted to building structure
Wind Load Anchor
Bolted to building structure
See page #6 of 23
A steel plate is factory welded to the steel
channel and is sized per job requirements. Refer
to the shop drawings.
Size and locate anchor bolts based
on the job conditions and the
structural requirements. Refer to
the approved shop drawings.
Note: Elevation of slab must be within the adjustment limits of the anchoring system.
See approved shop drawings for limitations.
