EFCO S5600 Outside Glazed User Manual
Page 13
EFCO CORPORATION 7/2012 PART NO. Y302
Page 13 of 26
Series 5600 Outside Glazed Installation Instructions
Section V: Frame Assembly

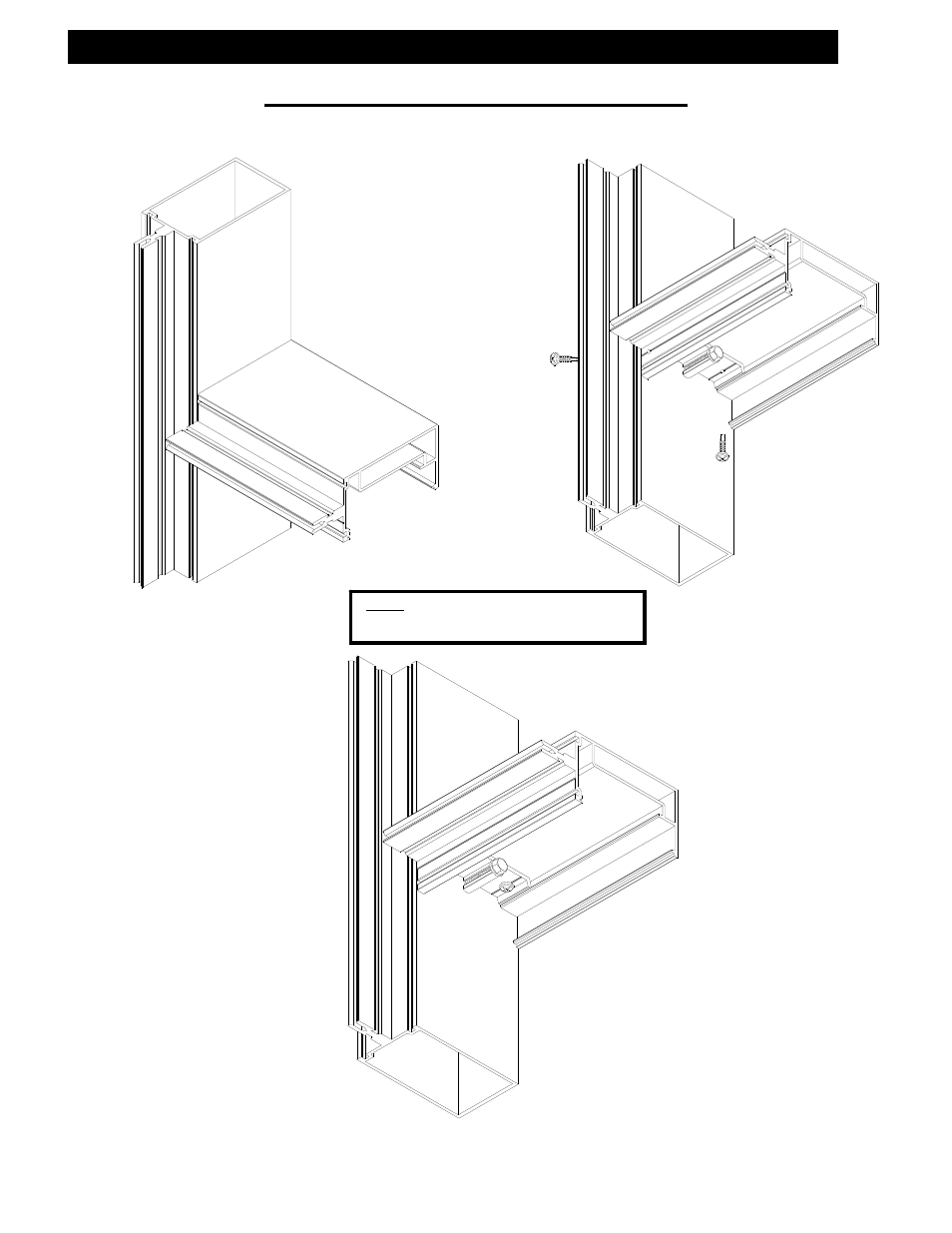

Fully tighten all screws
until completely seated.
Pin horizontal
to face of
shear block
w/ supplied
tek screw(s)
Pin through under
side of shear block
Note: Horizontal must be leveled
and perpendicular to the vertical.
