EFCO CORPORATION 7/2012 PART NO. Y302 Page 17 of 26
Series 5600 Outside Glazed Installation Instructions
Section VI: Glazing Preparation

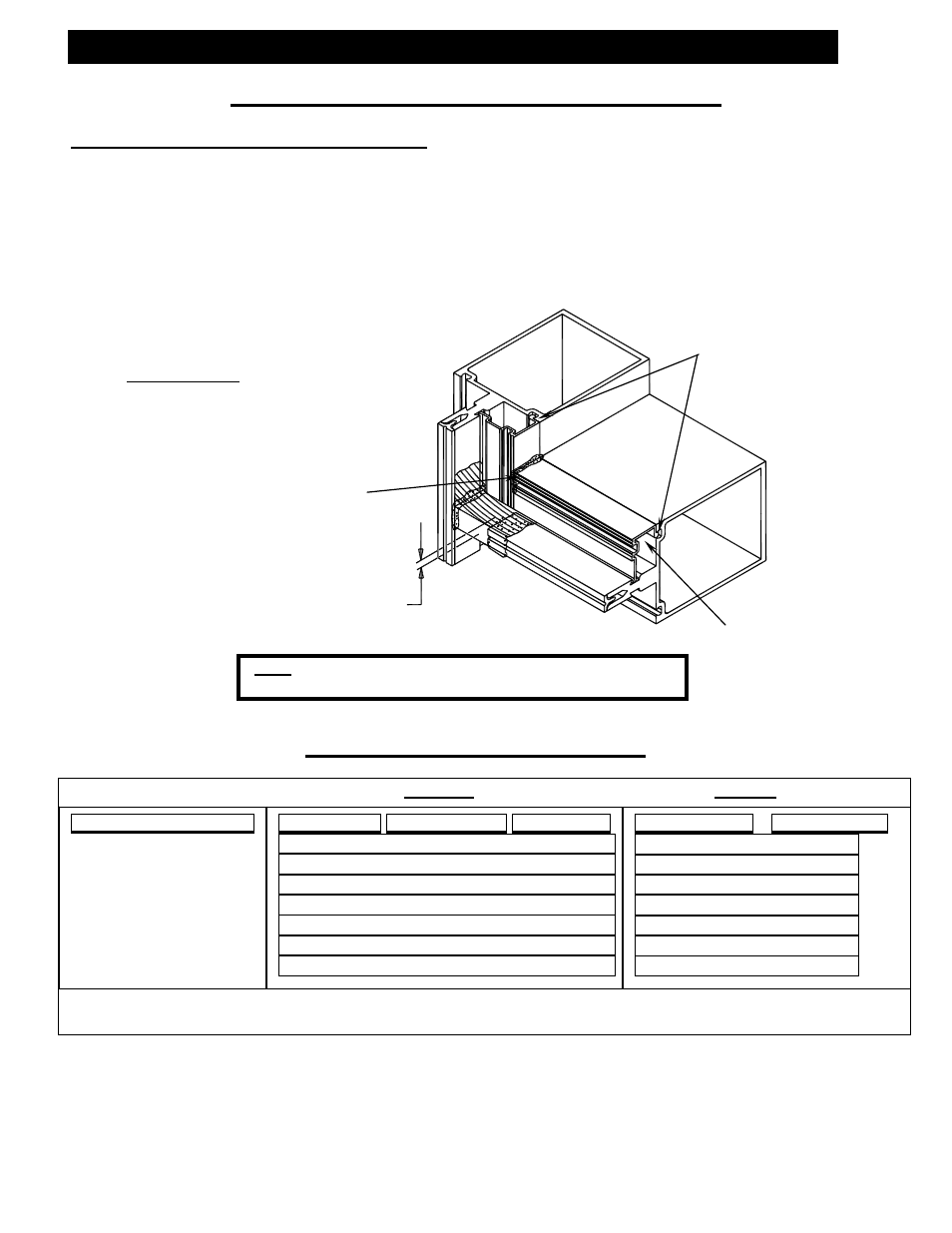

Step #4 Install Glazing Infill Adaptors
A.) Prior to installing the glazing adaptors, seal the entire gasket raceway with sealant.
B.) Snap glazing adaptors in place into sealant starting with the verticals. Allow at least
1/8” clearance from the bottom of the glazing adaptor to the top of the joint plug to
allow for weepage.
C.) Butter the ends of the horizontal adaptors prior to setting into position. Snap
horizontal adaptors in place between vertical adaptors. Face seal the adaptor
intersection with sealant. Tool all sealant joints and remove any excess.
Glazing Combinations
Adaptors Gaskets
*1-1/4” & 1-5/16” glazing infills require a non-standard pressure plate.
Note: Vertical adaptors will need clearance above the
joint plug, free from sealant, for weepage.
1/8” Clearance Required for Weepage.
CUT FORMULA
Vertical = D.L.O. + 1”
Horizontal = D.L.O. – 1/16”
Continuously seal the gasket
raceway with sealant prior to
installing the adaptors.
Adaptor
Butter Ends
of Adaptor
Glazing Infill Thickness
¼”
5/16”
½”
9/16”
1”
1 ¼”
1 5/16”
Center Stem Shallow Pocket Deep Pocket
X X X
X X X
X
X
X X
X X
* See Note Below
* See Note Below
Exterior Preset Interior Preset
X X
X X
X X
X X
X X
X X
X X
