Compressed Air Air Fuel Ratio Module Installation and User Guide
A P P E N D I X A
Installation
A-4
I NSTALLING THE A IR H OSE WITH THE A IR B RAKE
Use the following instructions to install the air hose when the air brake is installed.
1
Install the tee.
1a
Cut the hose running from the air brake as shown in Figure A-3.
1b Slide a hose clamp over each piece of hose.
1c Insert the tee.
1d Secure the hose clamps.
2 Measure the distance from the tee to the air pump assembly and cut a piece of
hose.
3 Attach the hose to the air pump assembly. This connection does not require a
hose clamp.
4 Slide a hose clamp over the hose.
Note: The hose clamp is only needed on the tee end.
5 Slide the hose over the tee.
6 Secure the hose clamp.

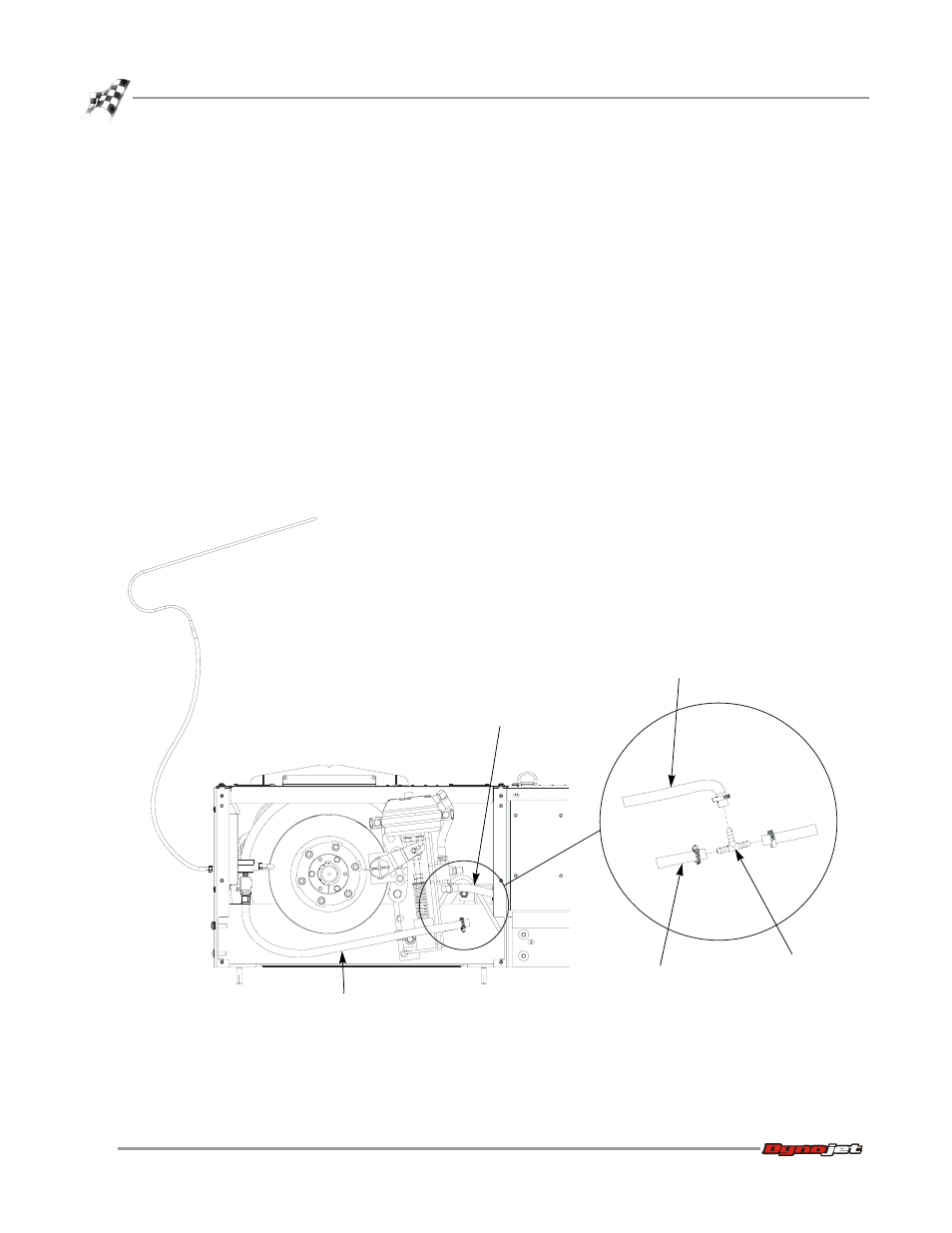

Figure A-3: Installing the Air Hose with the Air Brake
AP115
tee
air hose to the brake
cut here
air hose to the pump
air hose to the brake
air hose to the pump
