Compressed Air Air Fuel Ratio Module Installation and User Guide
C H A P T E R 2
Module and Pump Set Up
2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MODULE AND PUMP SET UP
This section describes the set up procedures for the Air Fuel Ratio Module and
compressed air pump assembly.
1
Run the vehicle and allow the vehicle to warm up. Excess condensed water is
produced during warm up which can damage the air pump assembly. Allowing
the vehicle to warm up removes this excess water.
2
Place the copper sample tube(s) in the exhaust pipe(s) of the test vehicle.

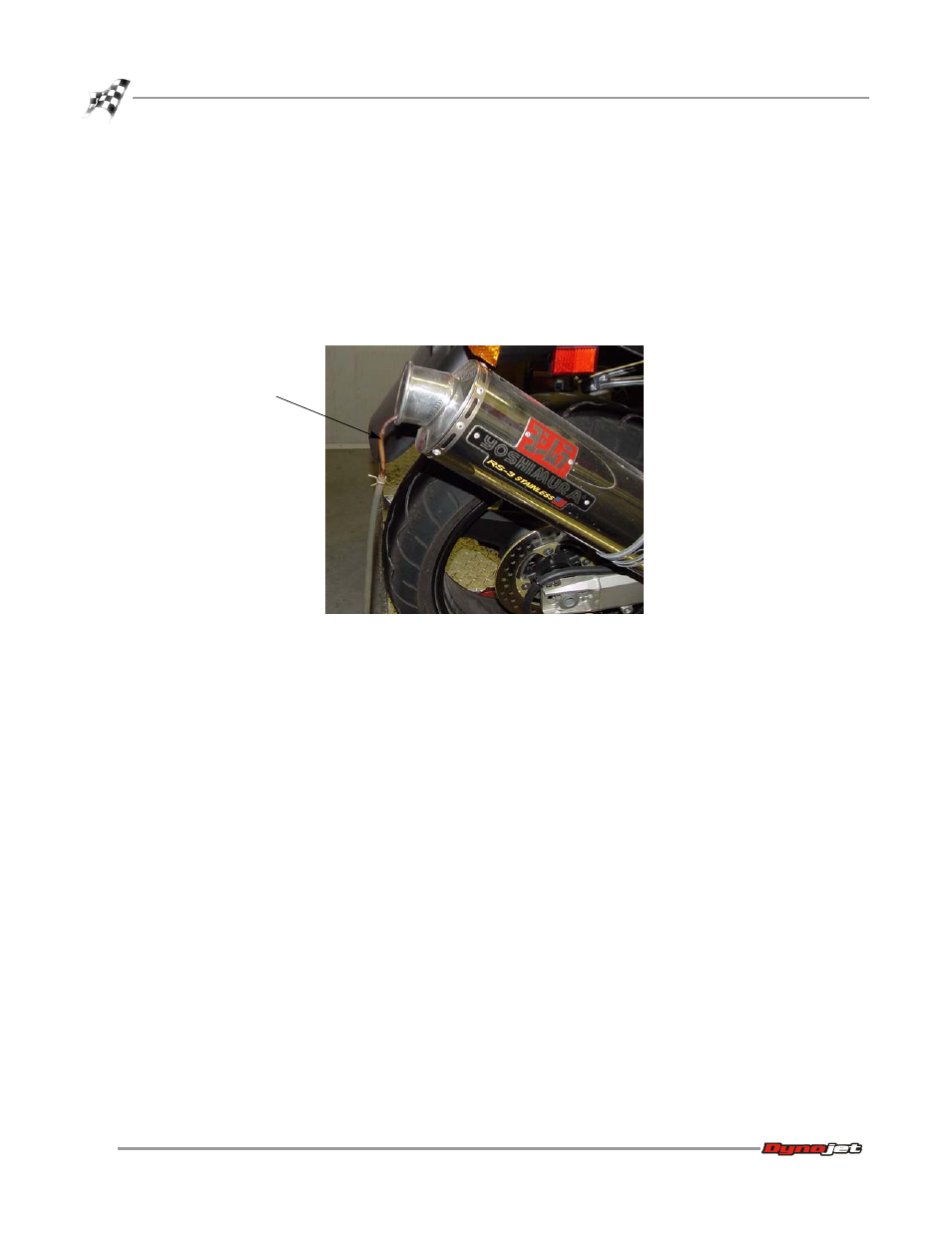

Figure 2-1: Sample Tube Placement
3
Turn on the dyno electronics power. Verify the Air Fuel Ratio Module power
light is on.
4
Turn on the compressed air to the pump assembly.
copper sample
tube
