A I R F U E L R A T I O M O D U L E I N S T A L L A T I O N
Installation
Version 6 Air Fuel Ratio Module Installation and User Guide
1-5
3 Loosen the top right screw on the back of the existing top module.
4 Plug the Air Fuel Module into the existing top module. Place the dust cover,
removed in step 2, on the Air Fuel Module.
5 Secure the grounding strap on the back of the Air Fuel Module to the existing top
module.

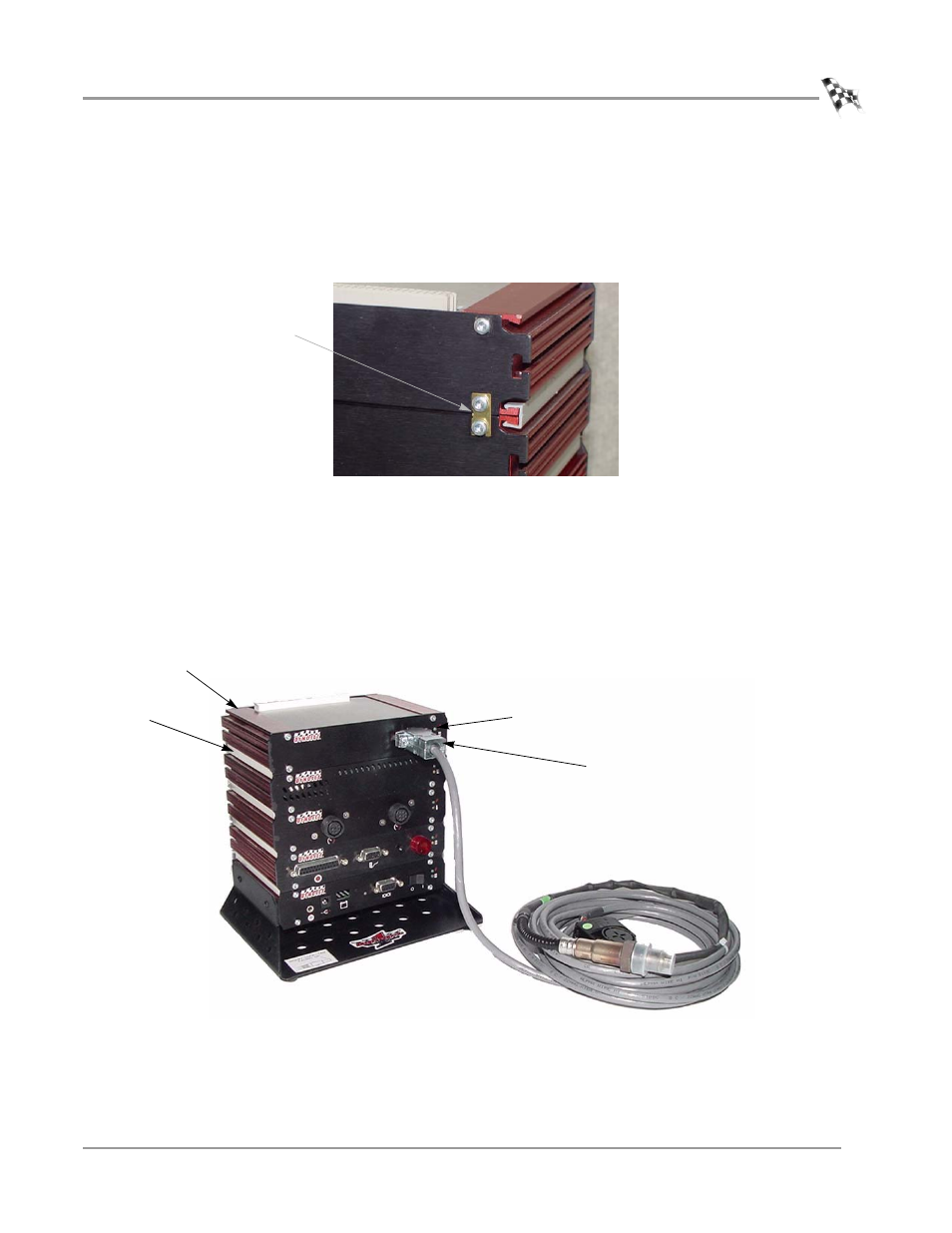

Figure 1-2: Secure Grounding Strap
6 Secure the Air Fuel Module to the stack with the plastic tie straps (one on each
side).
7 Attach the 15-pin connector on the sensor cable to the front of the Air Fuel
Module and tighten down the screws.
8 Attach the power cord to the dyno electronics and turn the power switch on.
The green LED light on the Air Fuel Module should now be on.
Figure 1-3: Attach Air Fuel Module and Sensor Cable
grounding strap
sensor cable and port
green LED light
tie strap
air fuel module
