Air Fuel Ratio Module Installation and User Guide
A P P E N D I X A
Sample and View Air Fuel Ratios Using WinPEP 6
A-6
6
Select an option from the list to graph on the right Y axis. Air/Fuel was selected in
this example.

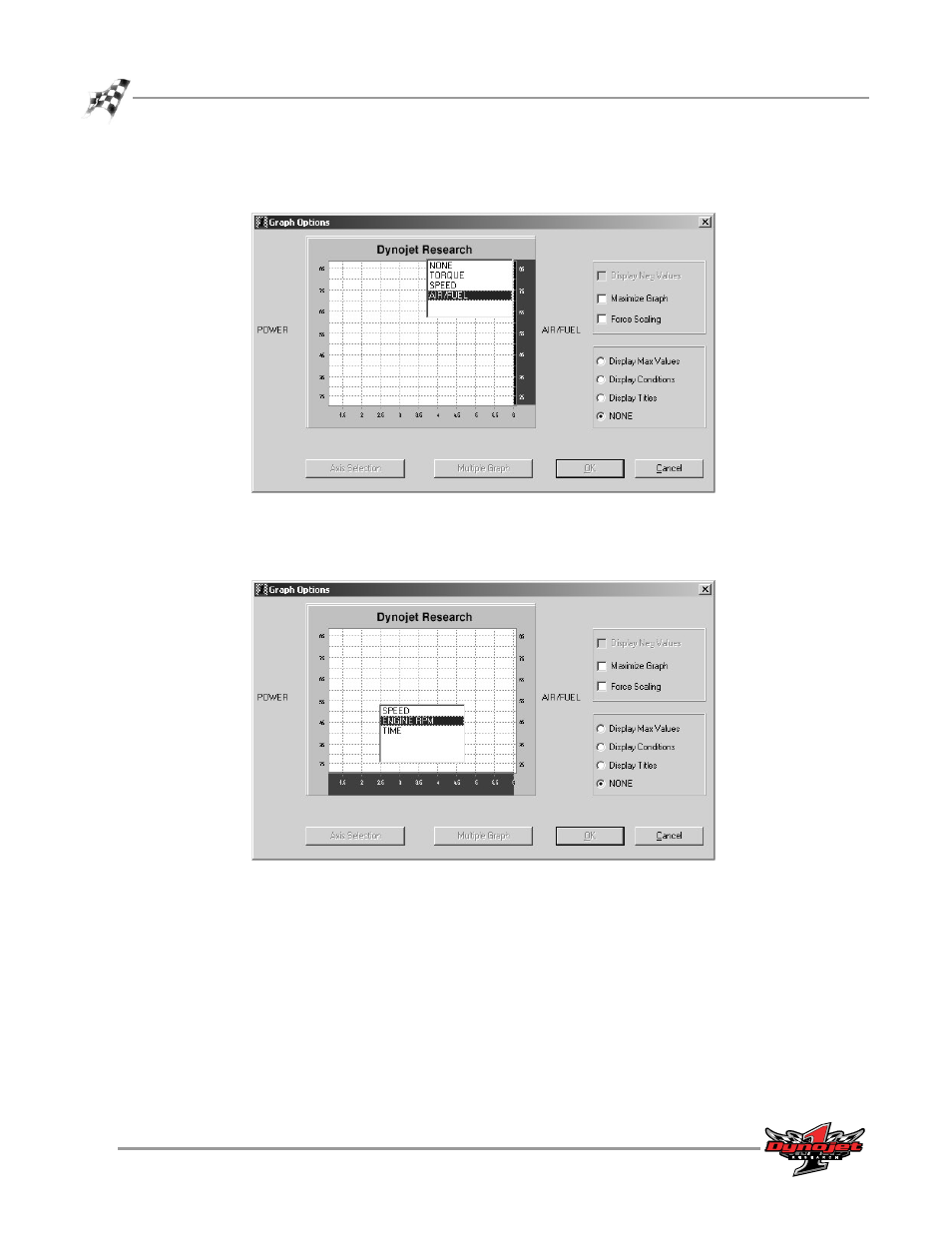

Figure A-6: Graph Options Window—Right Y Axis
7
Select an option from the list to graph on the X axis. Engine RPM was selected in
this example.
Figure A-7: Graph Options Window—X Axis
