Air Fuel Ratio Module Installation and User Guide
A P P E N D I X A
Sample and View Air Fuel Ratios Using WinPEP 6
A-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAMPLE AND VIEW AIR FUEL RATIOS USING WINPEP 6
This section describes the procedures to sample and view air fuel ratios using
WinPEP 6. For more information on making and graphing a run, refer to your
dynamometer user guide located on your WinPEP CD or at
www.dynojet.com/manuals.shtml.
Note: Allow the sensor to preheat before making a run. An orange LED light on
the Air Fuel Ratio Module will light up continuously when the sensor is ready to
make a run.
S AMPLING A IR F UEL R ATIOS
1 Verify you are in the MakeRun screen.
2 Click the MakeRun Configuration button.
3 In the MakeRun options dialog box, verify the Air/Fuel Module is on. To turn the
Air/Fuel Module on, double-click the field.

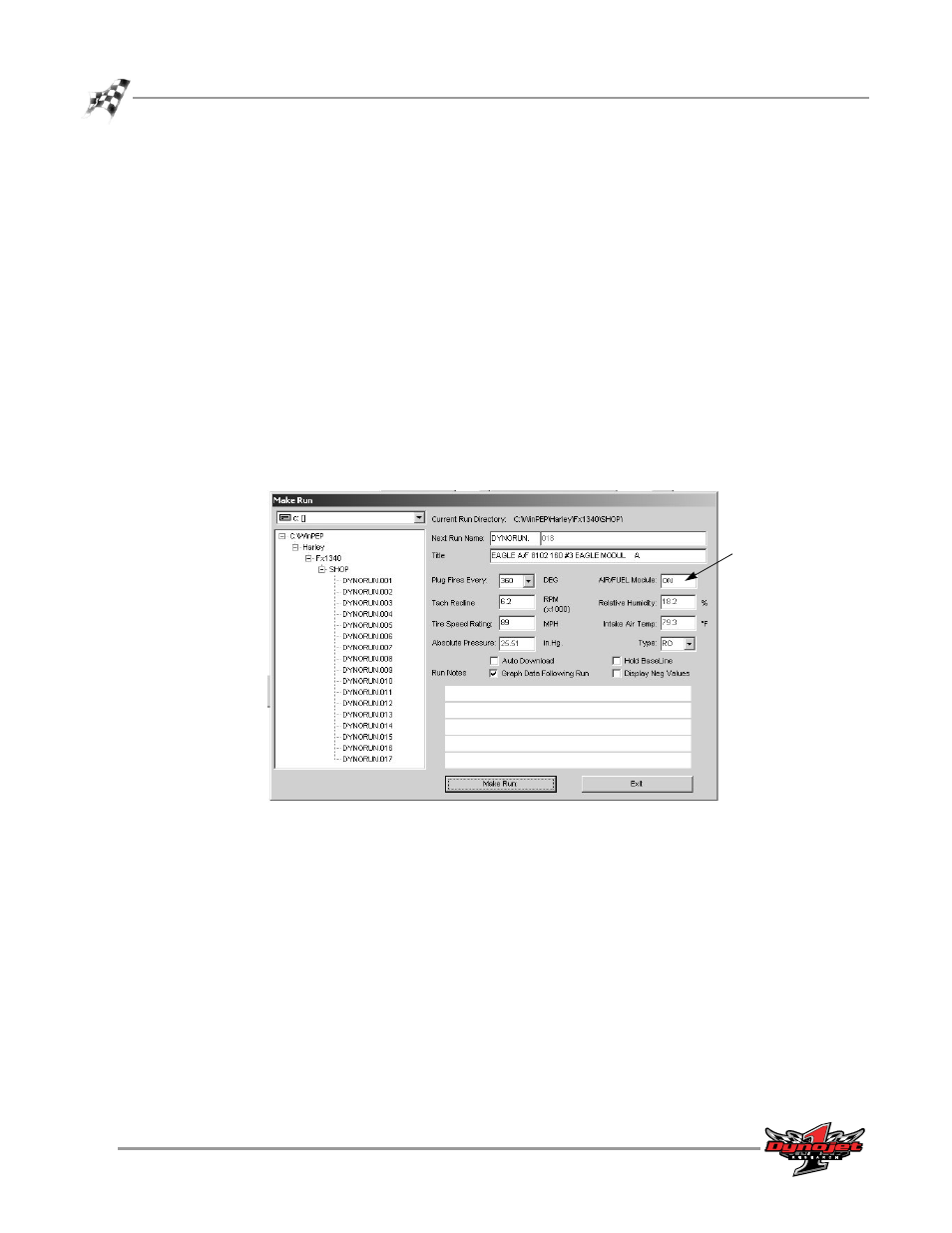

Figure A-1: MakeRun Options Window—Air Fuel Module
air fuel module
function
