Air Fuel Ratio Module Installation and User Guide
C H A P T E R 1
Installation
1-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION
This section describes installation procedures for the Air Fuel Ratio Module.
P
ARTS
L
IST
The following table lists all of the parts included in the Air Fuel Ratio Module
Installation kit. Check your kit against the parts listed to make sure you have received
all of the parts. If any part is missing, contact Dynojet Technical Support.
I
NSTALLING
THE
A
IR
F
UEL
M
ODULE
1
Turn off the main power switch on the CPU Module on the dyno electronics and
unplug the power cord.
2
Remove the dust cover from the existing top module.

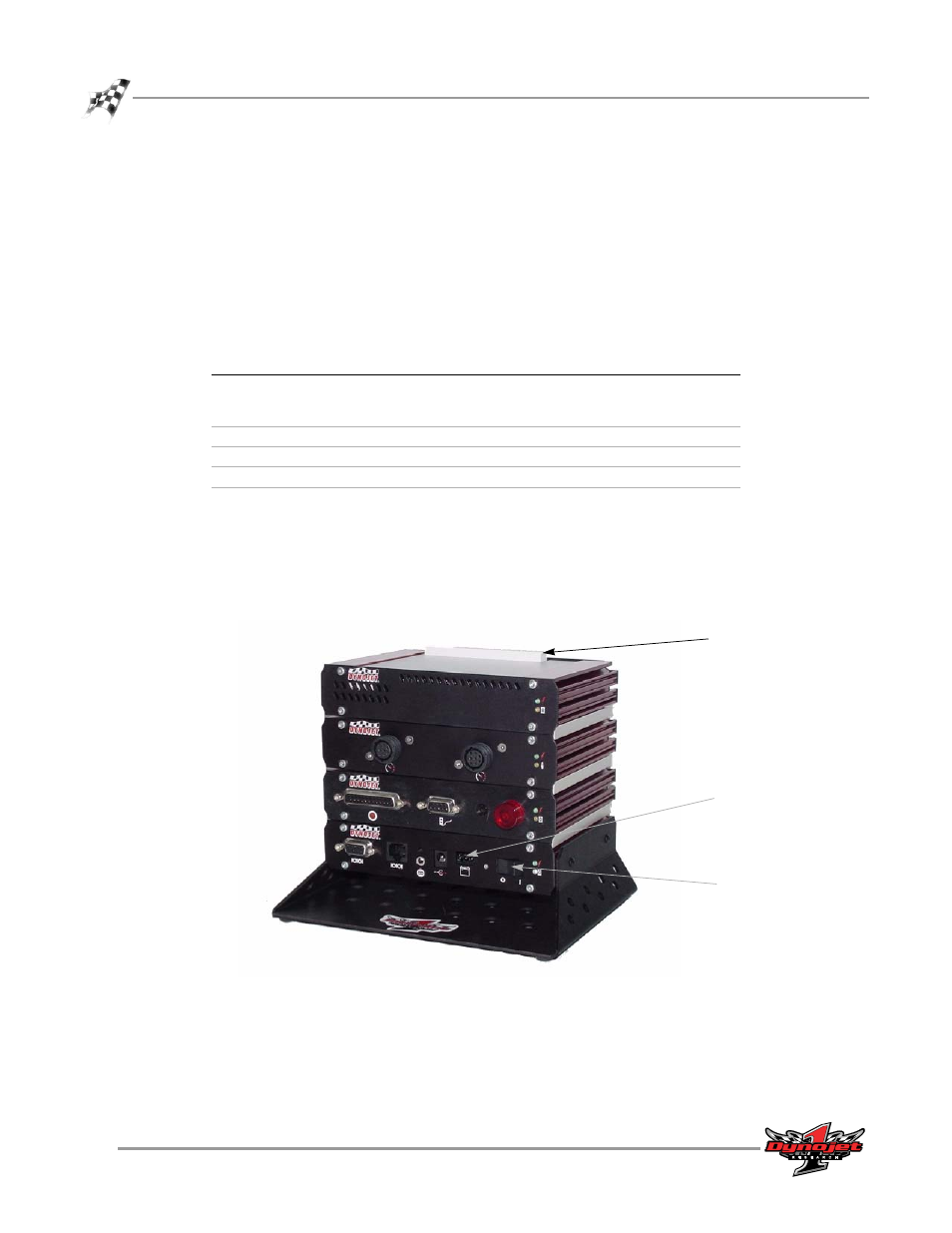

Figure 1-1: Remove Dust Cover
Part Number
Description
Quantity
64193007
or
64193008
Air Pump and Filter Assembly (Domestic)
Air Pump and Filter Assembly (European)
1
66493002
Air Fuel Ratio Module
1
43432301
Module Tie Straps
2
48292000
Sensor
1
76950701
Cable, Air/Fuel Sensor
1
dust cover
power cord
input
power switch
