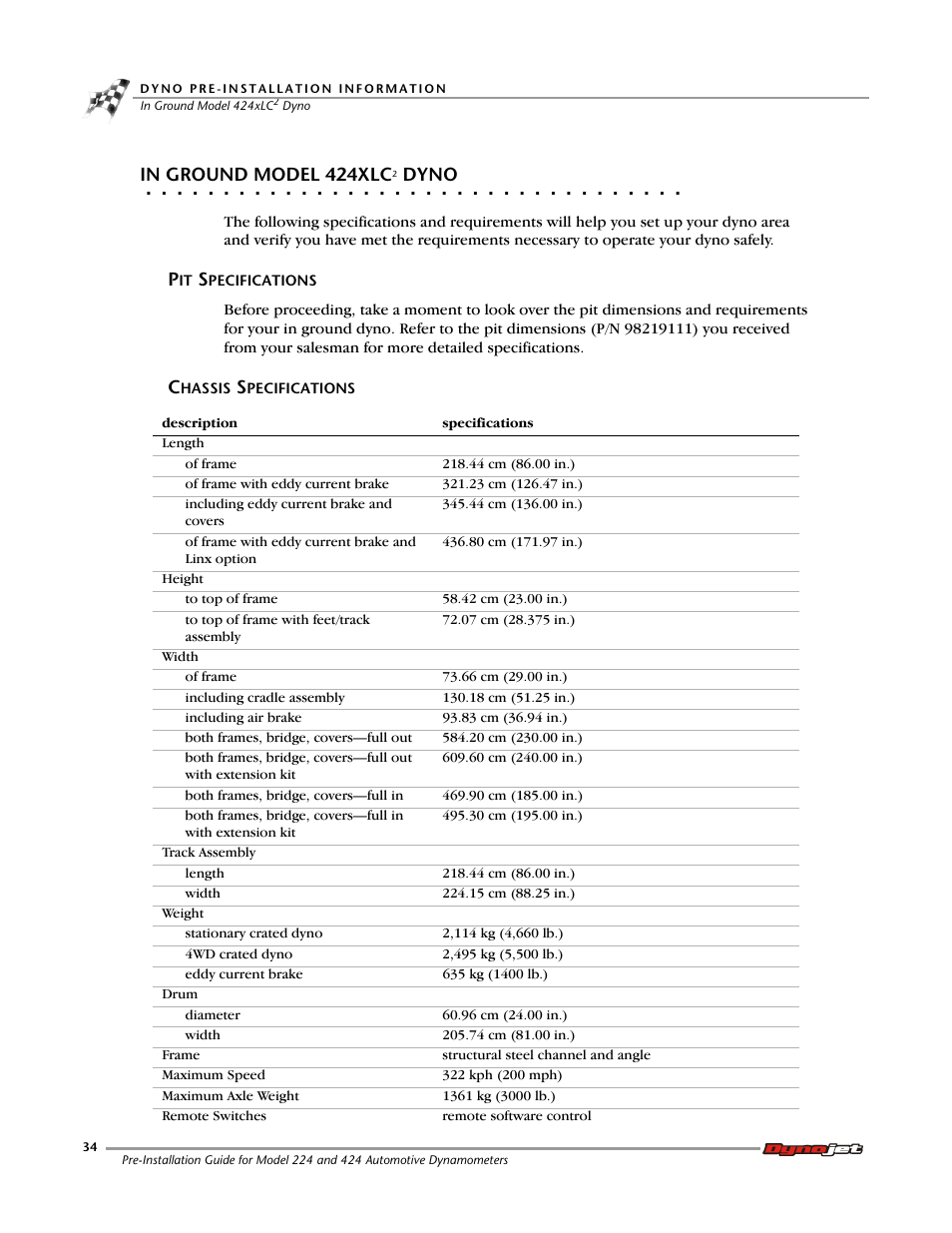

In ground model 424xlc2 dyno, Pit specifications, Chassis specifications – Dynojet 424xlc2: Pre-Installation Guide User Manual
Page 42
