Dynojet 224/4WD: Installation Guide User Manual
Page 45

I N S T A L L A T I O N
Grate Placement and Installation
Version 3
In Ground Model 224 4WD Automotive Dynamometer Installation Guide
2-25
4
Using the dyno movement pendant, move the dyno to the front of the pit (closest
to the stationary dyno).
5
Hold the cross brace assembly approximately one inch from the dyno frame with
the top of the brace flush with the pit room floor.
6
Mark and drill the two holes on each end of the brace assembly.
7
Install the Red Head anchors. Refer to Appendix A for installation instructions.
8
Secure the cross brace to the pit wall using four bolts, lock washers, and flat
washers.
9
Using the dyno movement pendant, move the dyno to the rear of the pit and
repeat these steps.
10 Once the cross brace assemblies are secured, verify the dyno moves free and does
not hit the cross braces.

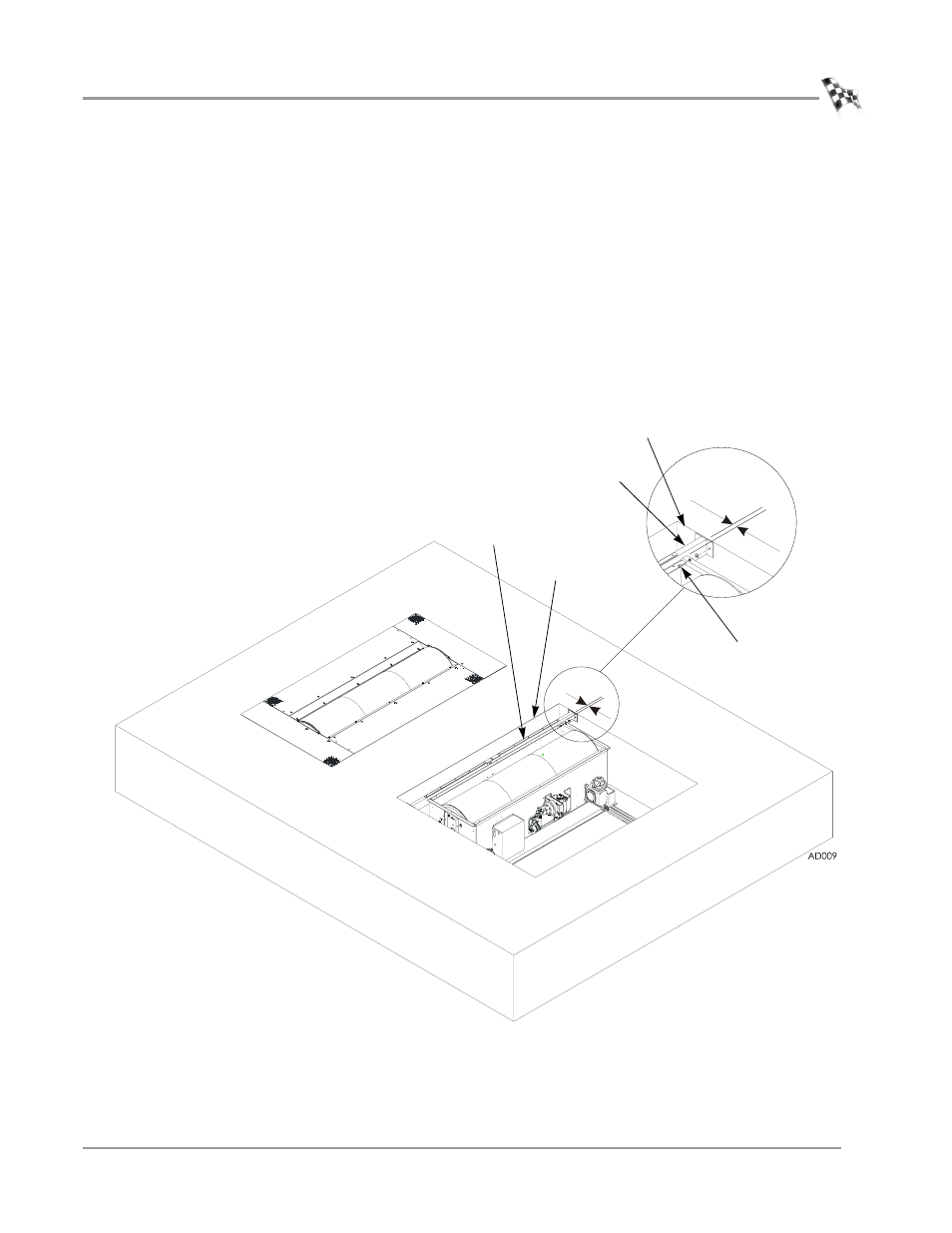

Figure 2-22: Installing the Cross Brace Assembly
pit room
floor
approx. 1"
cross brace
assembly
cross brace
assembly
pit floor
bolt
lock washer
flat washer
front of pit
rear of pit
