In Ground Model 224 4WD Automotive Dynamometer Installation Guide

C H A P T E R 1
Pit Specifications For 224 With 4WD Attachment

1-10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PIT SPECIFICATIONS FOR 224 WITH 4WD ATTACHMENT

Before placing the dyno in the pit, take a moment to verify the dimensions of the pit
are correct.
Refer to pit dimensions (P/N 98219105) you received from your salesman for more
detailed specifications.
• pit depth: 71.76 cm (28.25 in)
• pit length: 220.98 cm (87.00 in)
• pit width: 259.08 cm (102.00 in)

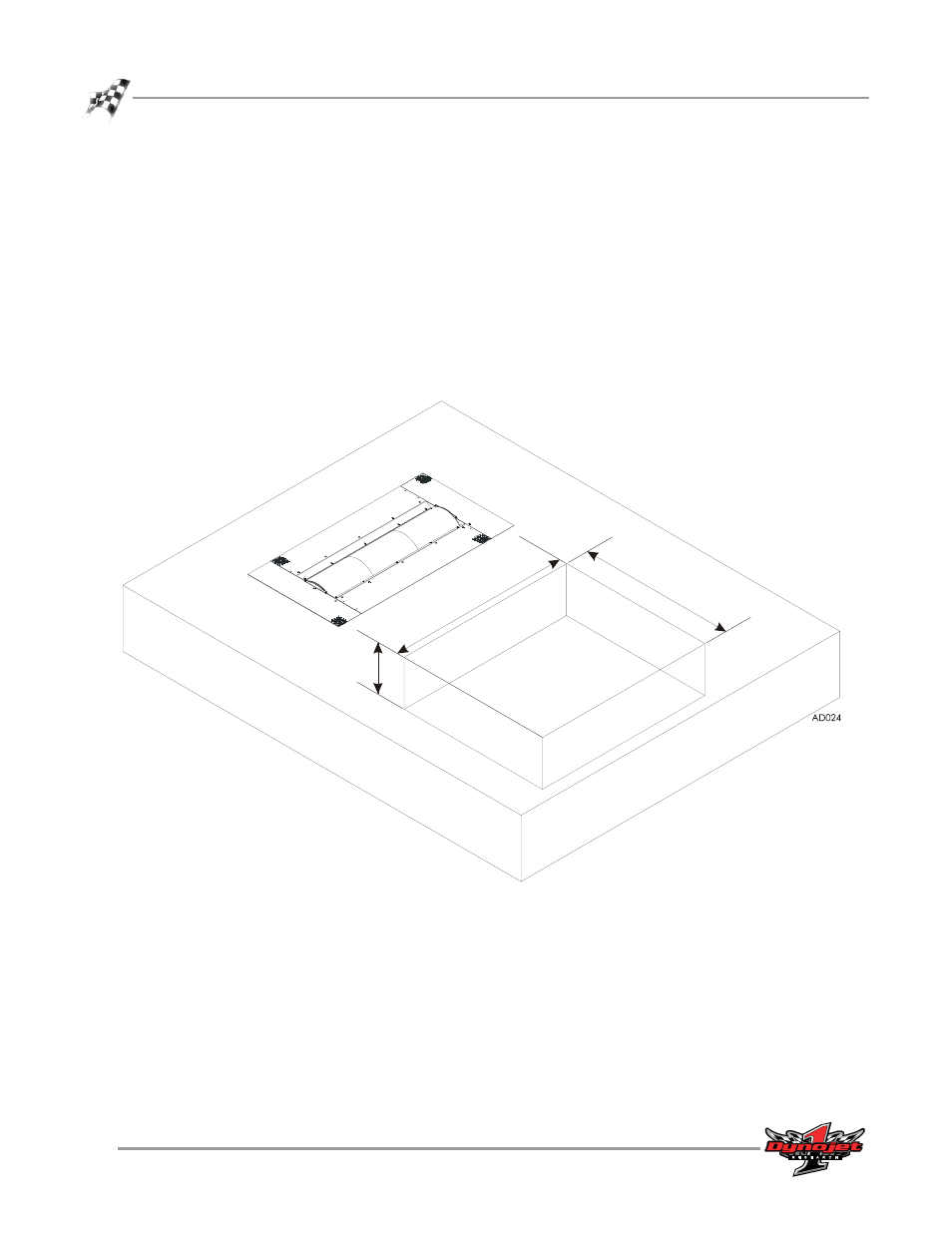

Figure 1-4: Verify Pit Dimensions

259.08 cm

(102.00 in)

71.76 cm

(28.25 in)

220.98 cm

(87.00 in)
