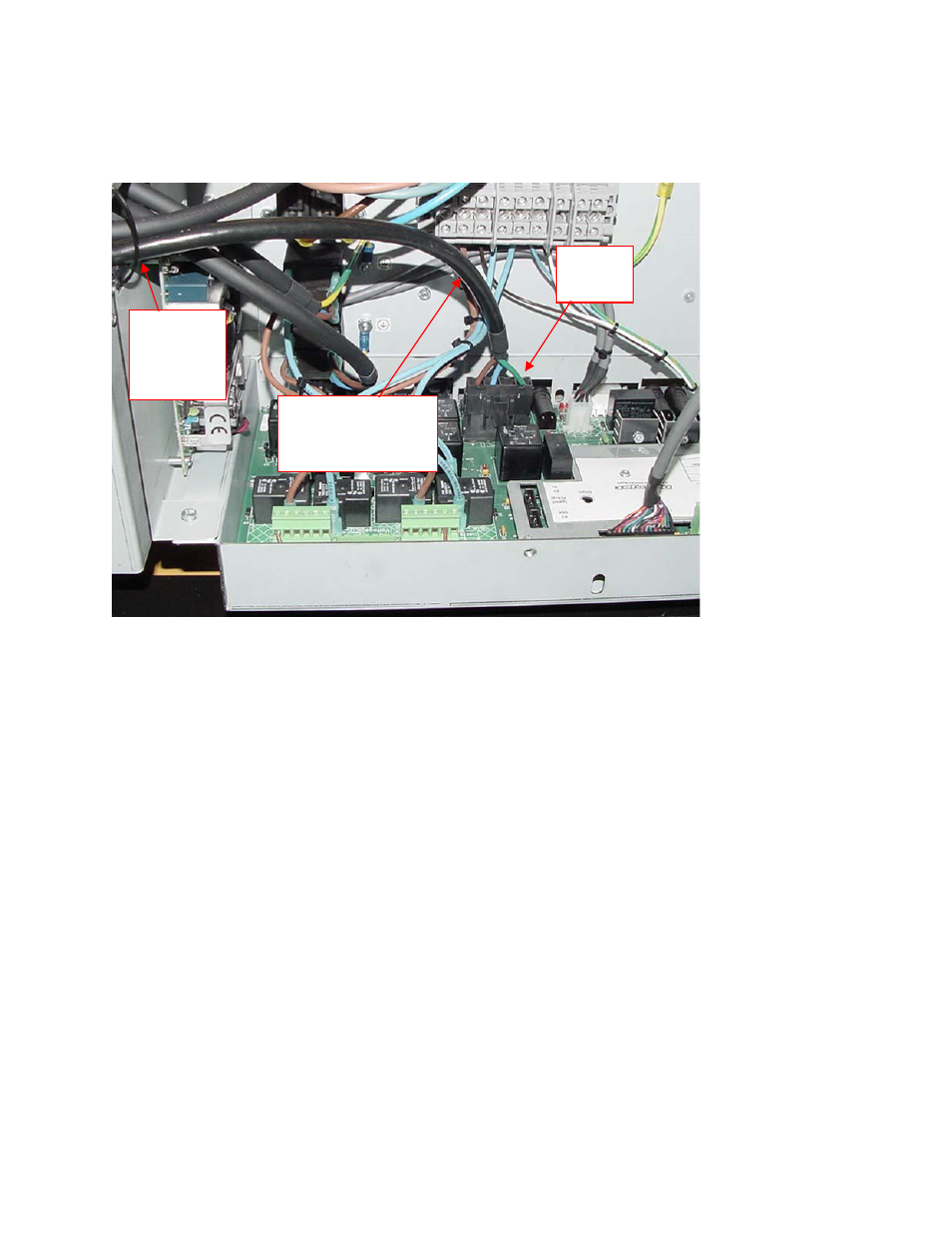

39. The battery cables and starter cables need to be connected next. The 4 pin connector plugs into the

back side of the Control Panel Interface board near the middle of the board to P2. The cable routes
out of the back of the Power Distribution assembly as shown.

P2

Battery to Control
Panel Interface
cable

Route
here and
cable tie
