9

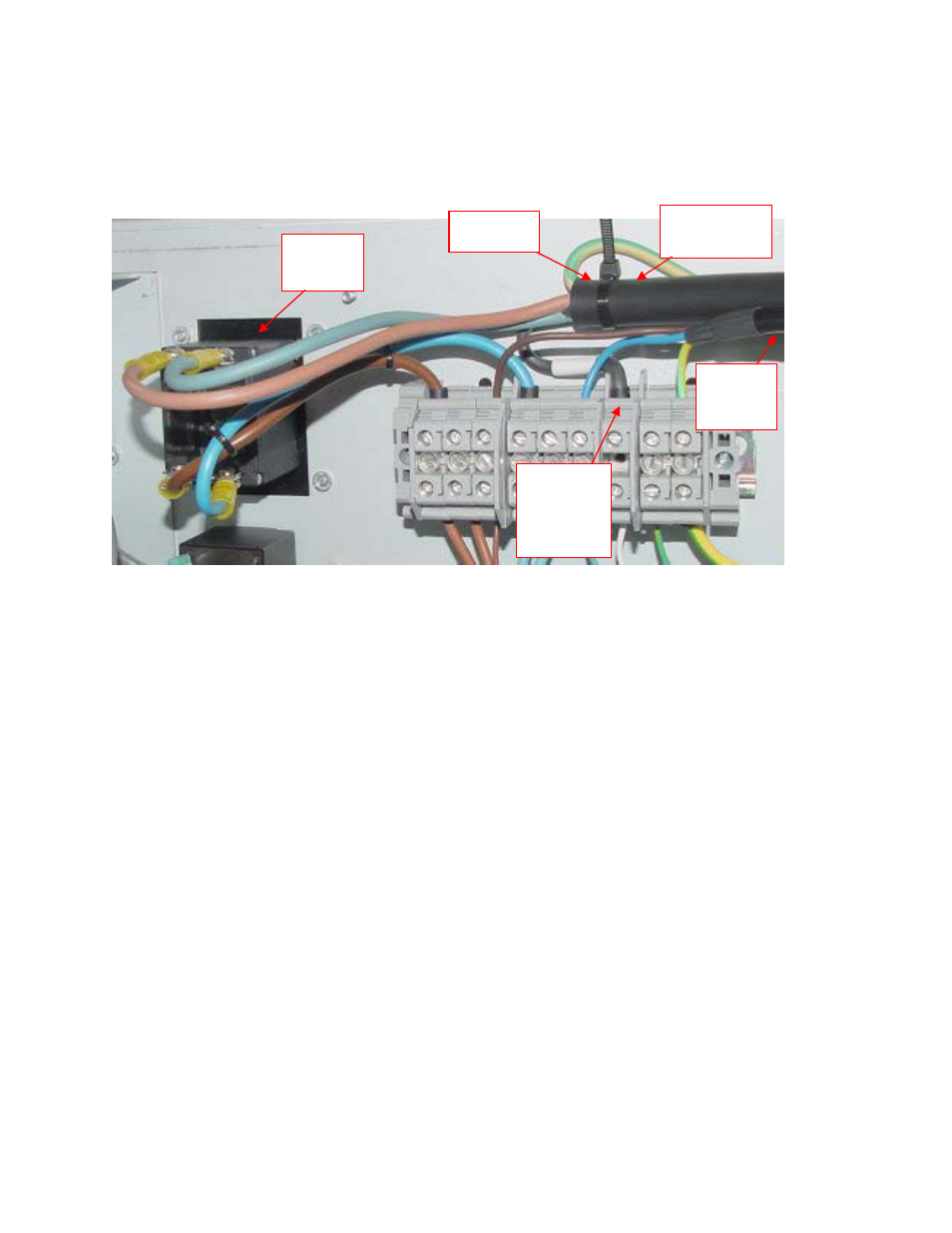

20. The main power cable needs to be re-installed to the new Power Distribution assembly. Connect the
incoming power as follows: the brown wire to the left top screw on the 30A breaker – Connect the
blue wire to the right top screw on the 30A breaker. Connect the black wire with the white tape to the
top side of the DIN rail in the position 7
th from the left. Fasten the green/yellow wire to the stud that is
above and to the right of the DIN rail with a #8 nut with internal washer. Cable tie as shown.
Incoming
power cable
Black
Wire with
white tape
position 7
30A
breaker
Ground
Stud
Cable tie
