Dynojet 250i: Control Panel Interface Upgrade (S/N 201xxxx) User Manual

Page 20

background image

18

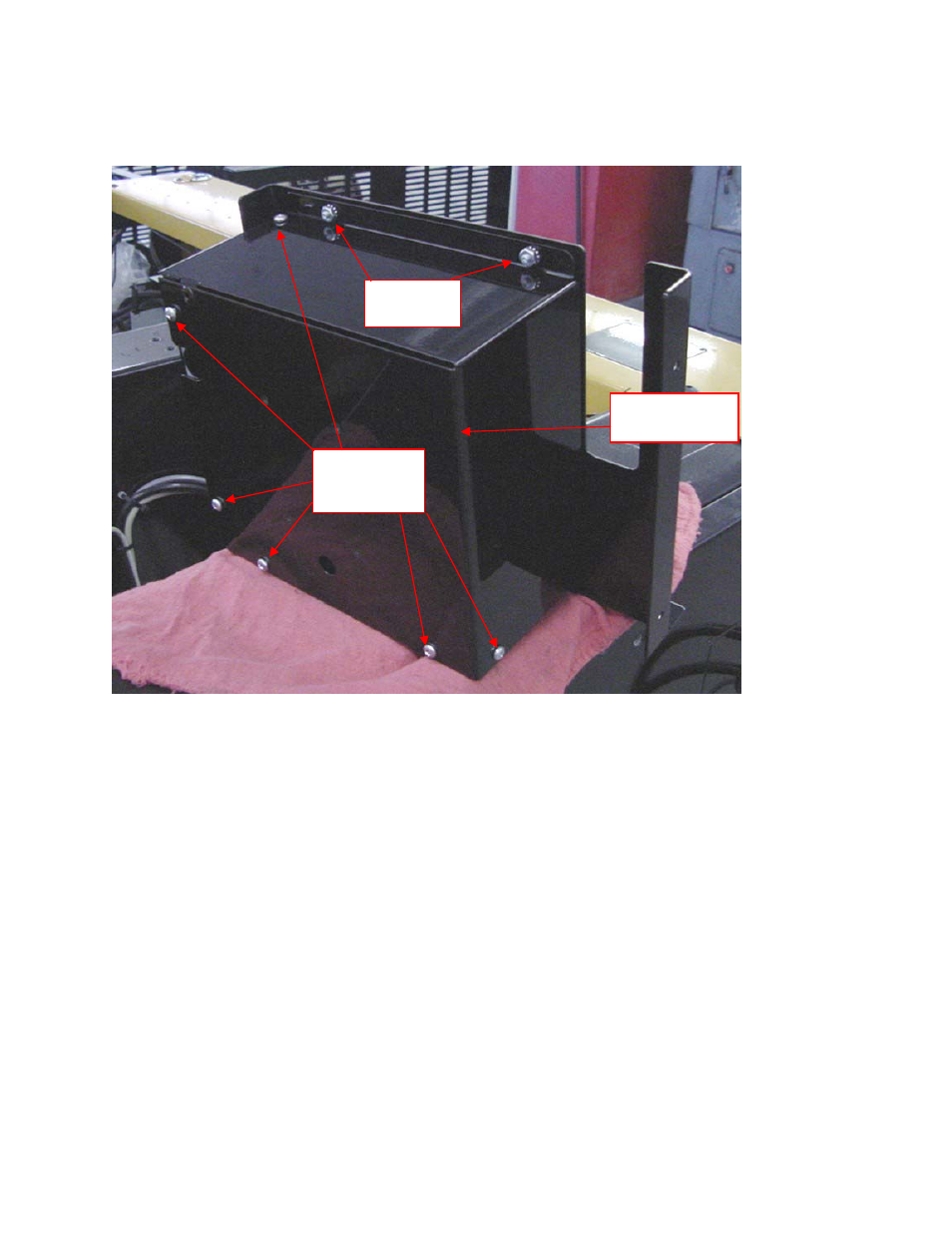

35. The Control Panel needs to be disassembled so the cable to the Control Panel Interface can be

connected. Remove the screw and nuts shown and lift off the back/side cover.


Remove
these
screws

Remove
nuts

Remove this
cover
