Dynojet 250i: Control Panel Interface Upgrade (S/N 201xxxx) - Manual (Page 12)

10
21. Connect the right fan cable ground ring lug to the stud to the right of the top 15A circuit breaker with a
#8 nut with internal lock washer. Connect the blue spade lug to the lower right lug of the top 15A
breaker and the brown wire to the upper right lug.
22. Connect the left fan cable ground ring lug to the stud to the right of the bottom circuit breaker with a
#8 nut with internal lock washer. Connect the blue spade lug to the lower right lug of the bottom
breaker and the brown wire to the upper right lug.

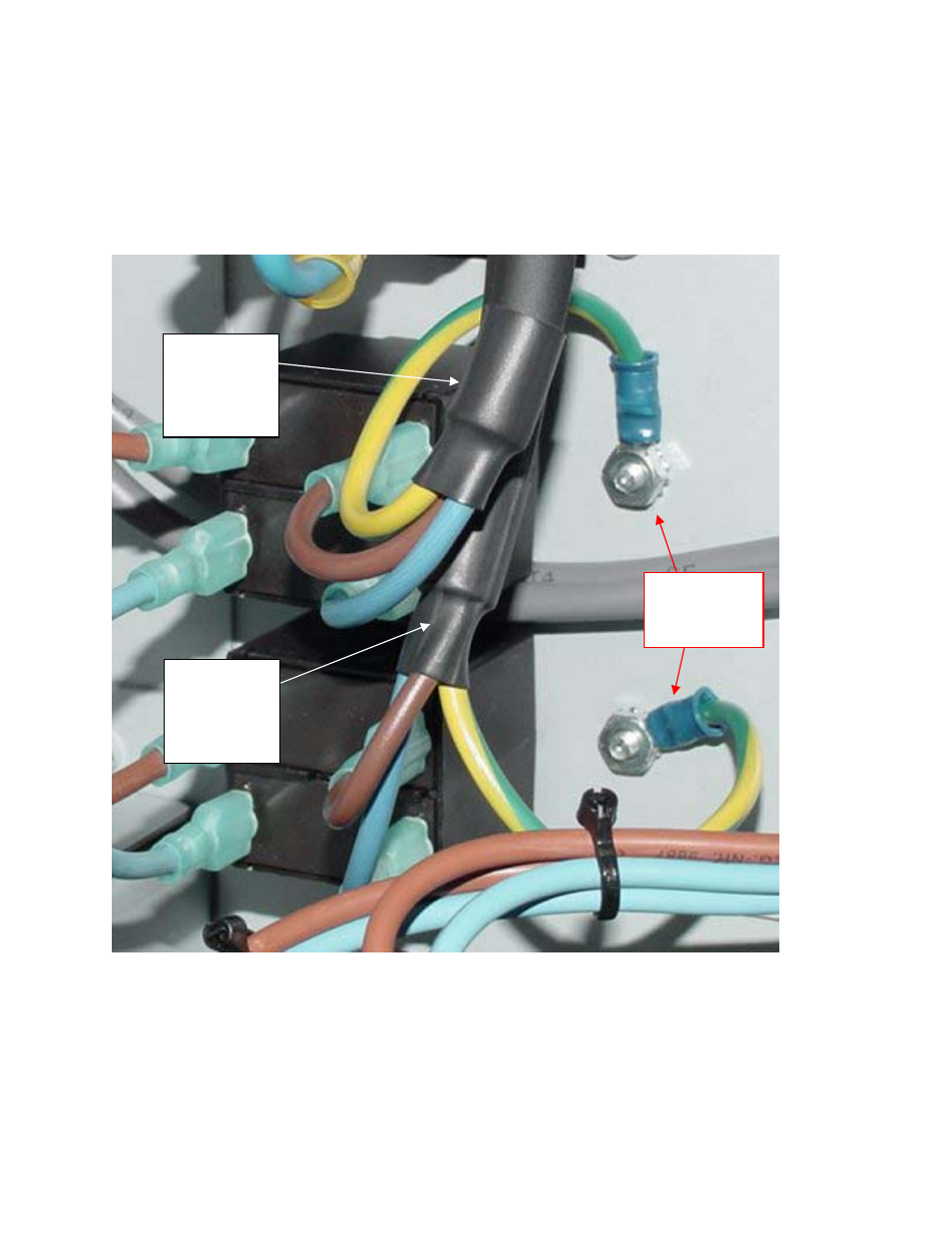

Top 15A
Breaker
Right Fan
Cable
Bottom 15A
Breaker
Left Fan
Cable
Ground
connections
here
