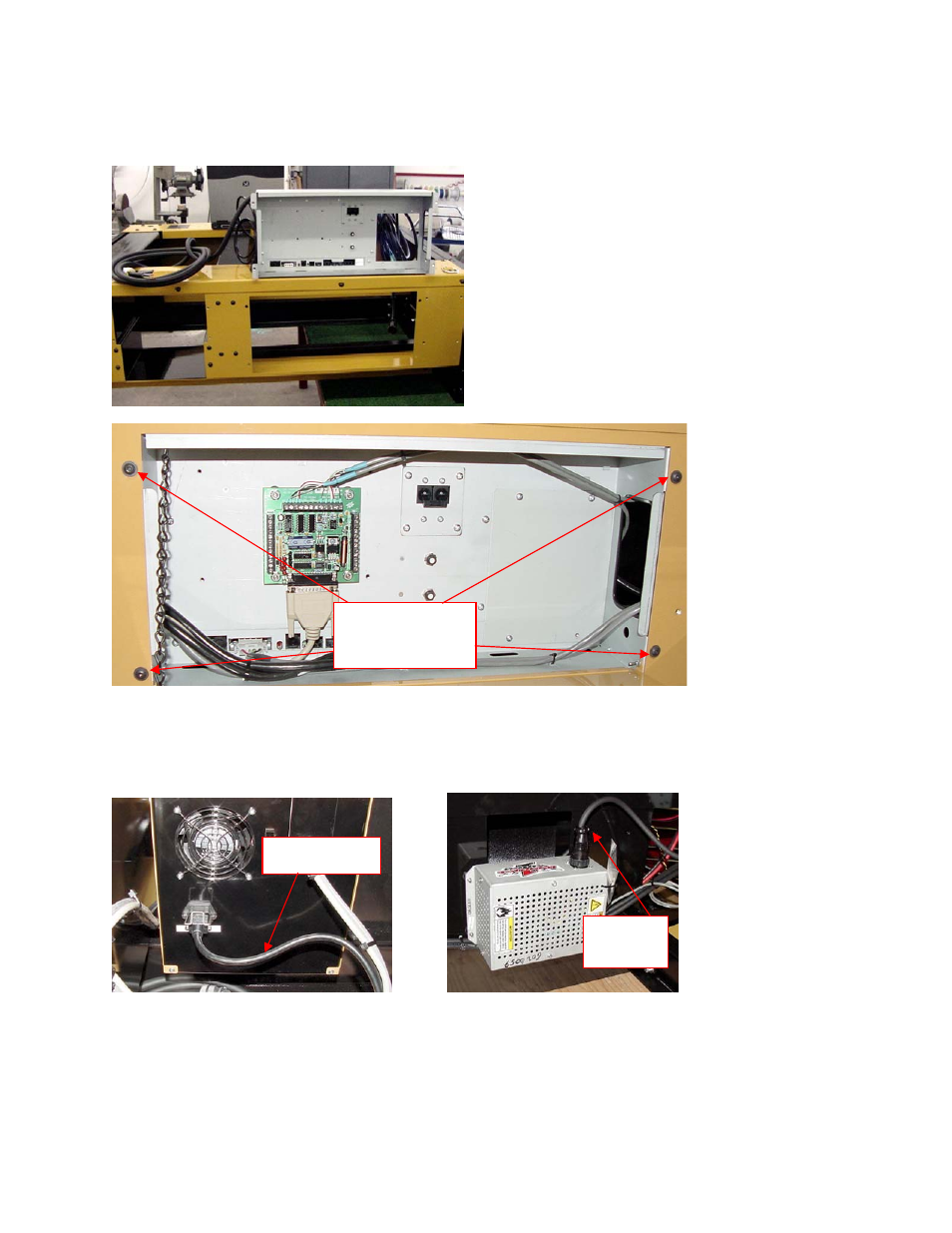

18. Carefully install the new Power Distribution assembly in the dyno from the inside of the dyno and
attach with four ¼-20 x ½ -inch hex head bolts.
19. Connect the power cable from the Power Distribution assembly to the back of the Stack Box. Replace
the cable ties that were cut previously to form a bundle and service loop. You should still be able to
remove the Stack Box when this bundle is complete. Connect the power cable to the Theta
Controller.
Fasten with four
¼-20 x 1/2 -inch
hex head bolts
Power Cable
Power
Cable
