I N S T A L L A T I O N G U I D E
Stand Alone Blower Base
Version 3 High Pressure Blower Installation Guide
7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STAND ALONE BLOWER BASE
The stand alone blower base was designed for use with pit dynos and automotive
dynos allowing you to direct air flow where you need it. The stand alone base will also
accommodate the older style fans.
P ARTS L IST
The following table lists all of the parts included in the Stand Alone High Pressure
Blower Base kit (P/N 71329002). Check your kit against the parts listed to make sure
you have received all of the parts. If any part is missing, contact Dynojet Technical
Support.
I NSTALLING THE B LOWER AND B ASE A SSEMBLIES
Repeat the following steps for each blower and base assembly.
1
Secure the handle to the blower, if not already installed.
1a
Remove the two 5/16-inch bolts from the blower.
1b Secure the handle to the blower using the 5/16-inch bolts you just removed.
2 Insert the pin on the blower assembly into the stand alone base.
3 Tighten the clamp lever.

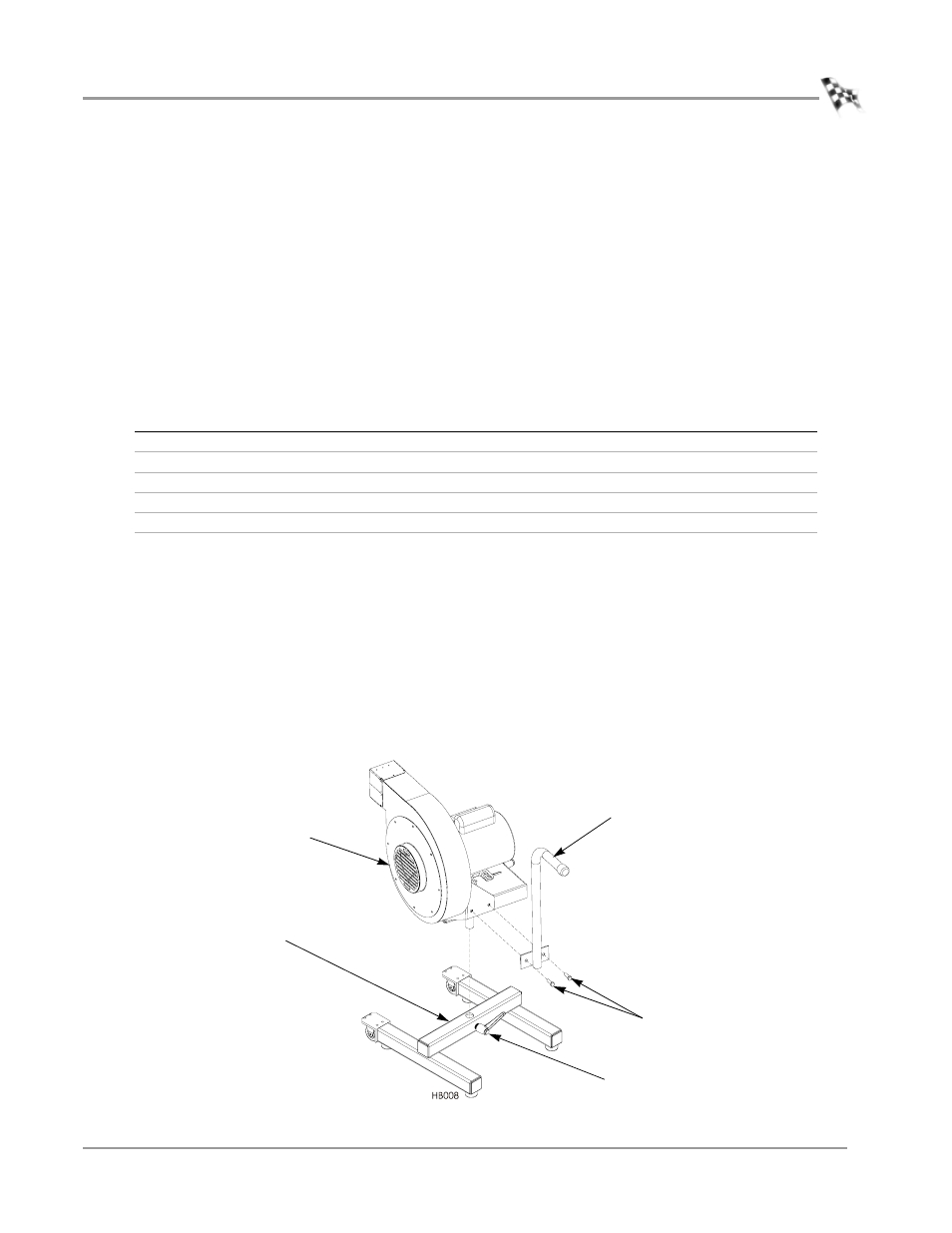

Figure 5: Secure Blower to Base
part number description quantity
61328101 High Pressure Blower Assembly 2
61329001 Stand Alone Handle Assembly 2
61329111 Stand Alone Extension Assembly 2
61329600 Stand Alone Base Assembly 2
35712991 Clamp Lever, 3/8-16 x 3/4” 2
26215520 Washer, 1.87 x 1.25 ID x .12 Thick 2
handle
base
bolt
blower assembly
clamp lever
