Revised 11/18/08 Arctic Cat M-1000 Turbo Installation instructions Page 14
www.boondockers.com............................
BoonDocker
..........................................877-522-7805
Step: 8 Fuel Rail installation
Parts Needed: Tools Needed:
2- Auxiliary fuel injectors 10- 4” zip ties Basic Tool Set
5- Size 4 hose clamps 10- 8” zip ties Thread sealant
¼” pipe plug 5/16 x ¾” bolt Assembly grease
¼ npt x 5/16” hose barb 90 5/16 lock washer
5 way rubber molded splitter Fuel rail
5/16 Brass T 20” of EFI fuel line
4- #4 hose clamps Auxiliary injector harness

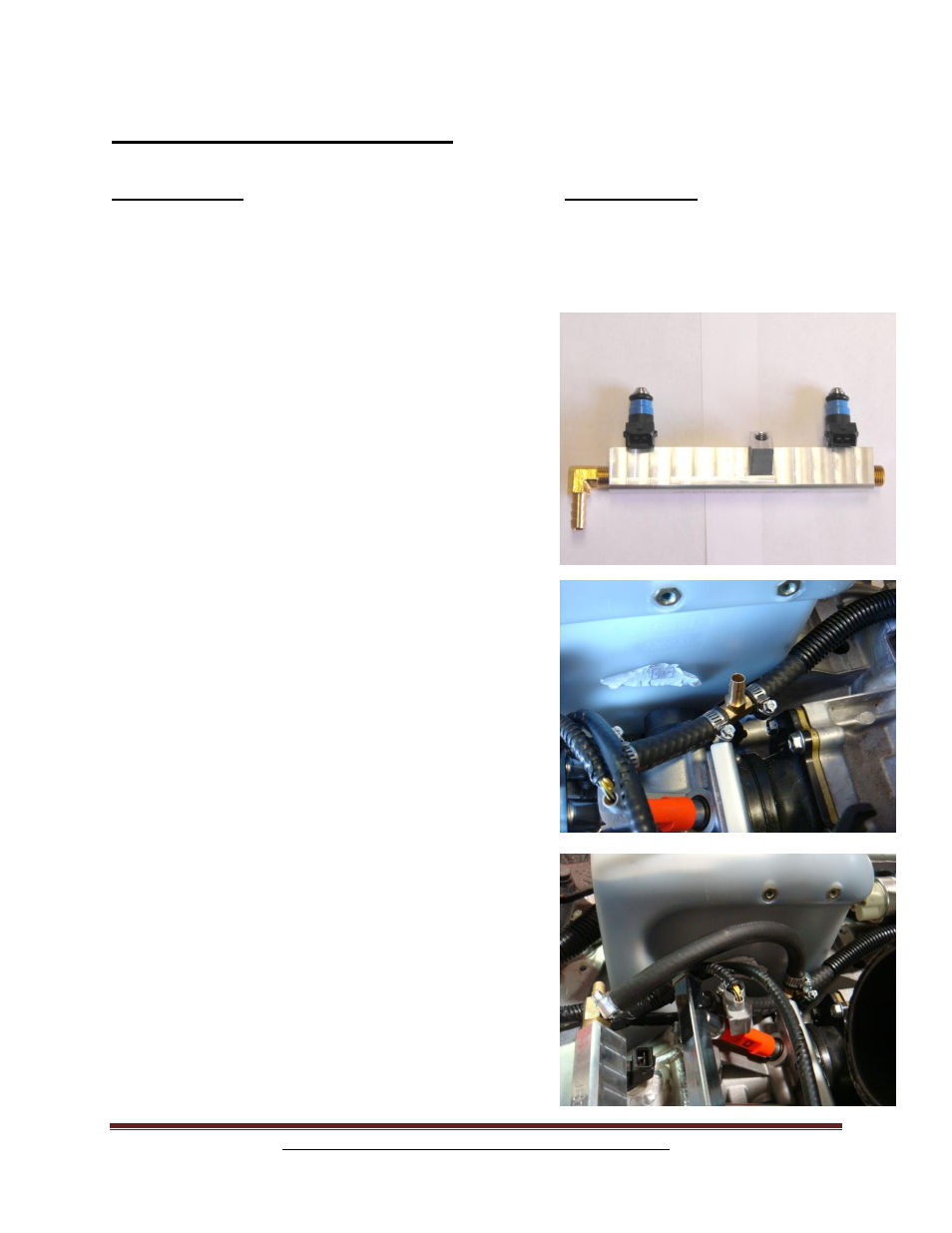

A. Locate the ¼ pipe plug, ¼” 90, 2 injectors and fuel
rail, assemble as shown in picture. Be sure to use
assembly lubricant on the injector o-rings and pipe
sealant on the brass fittings.
B. Install the fuel injector assembly to the Boondocker
air box and fasten using the 5/16 x ¾” bolt and lock
washer, Again Be sure to lubricate the injector o-rings
with assembly lubricant.
C. Install the 5/16” Brass T as shown in picture.
Fasten with the 2 #4 hose clamps.
D. Using the provided 5/16” fuel line, connect the newly
installed T Boondocker fuel rail. Fasten this connection
with the remaining 2 #4 hose clamps.
E. Install the Boondocker auxiliary injector harness to the
Boondocker injectors and route the harness to the
Boondocker control box.
