The ports on the rear, left and right panel of CP135 enable you to connect the unit to a

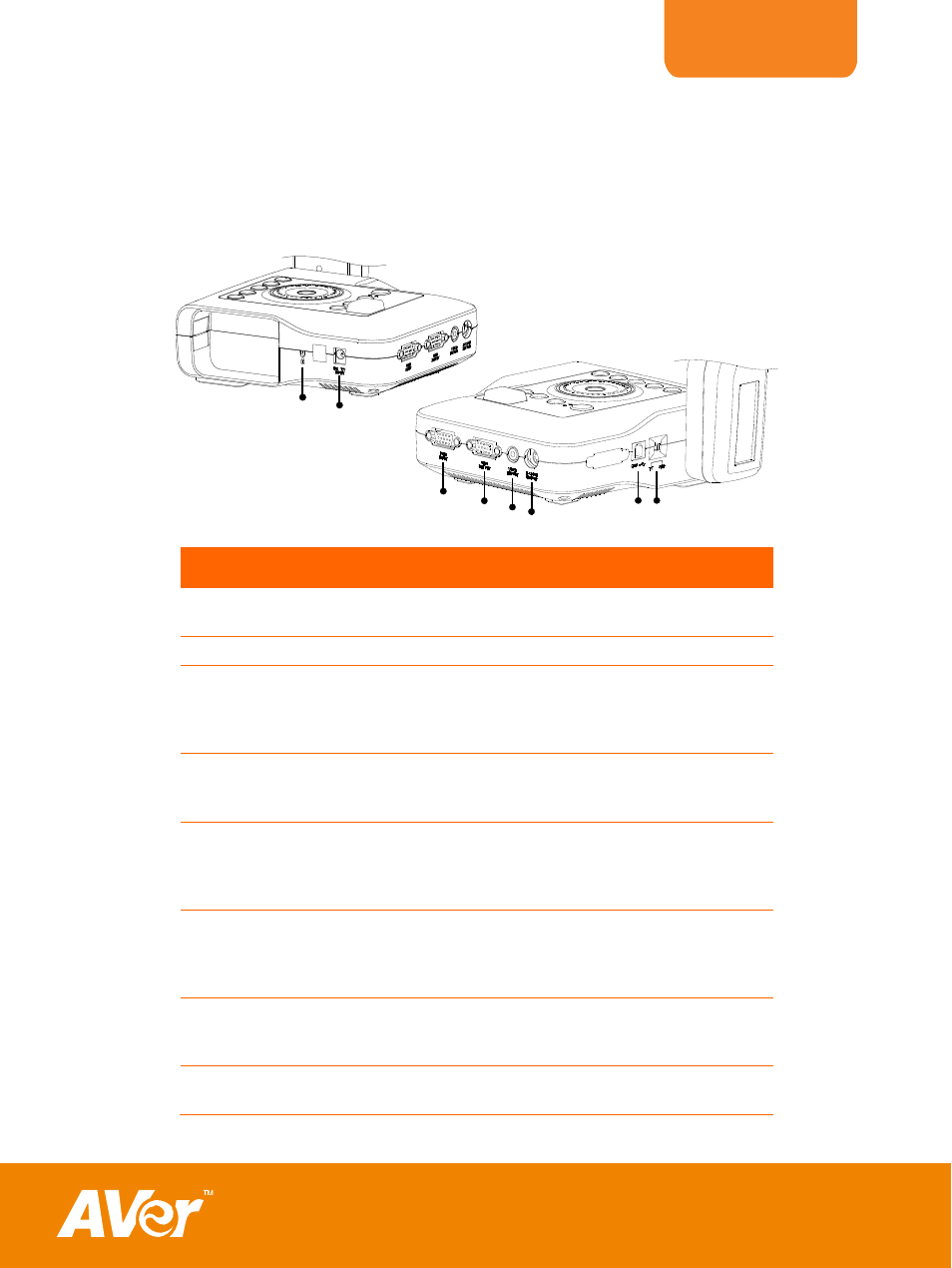

computer, graphics display monitor or LCD/DLP projector, TV or other device. Illustrated
below are the ports that are located at the rear, left and right panel of CP135 with their
corresponding labels.
(2)
(1)
Right Panel
(4) (5)(6)
(7)
(3)
(8)
Rear & Left Panel
Port
Description
(1) Antitheft Slot
Attach a Kensington compatible security lock or
antitheft device.
(2) DC 12V Input
Connect the power adapter into this port.
(3) RGB INPUT
Input the signal from a computer or other sources
and pass it through to the RGB Output port only.
Connect this port to the RGB/VGA output port of
the computer.
(4) RGB OUTPUT
Output the signal from the camera, RGB input port,
or the captured images from the memory on a
CRT/LCD/MAC monitor or LCD/DLP projector.
(5) VIDEO OUTPUT
(RCA/Composite)
Output the signal from the camera or the captured
images from the memory on TV or Video
equipment. Connect this port to the VIDEO input
port of a TV or video equipment.
(6) S-VIDEO
OUTPUT
Output the signal from the camera or the captured
images from the memory on TV or Video
equipment. Connect this port to the S-VIDEO input
port of a TV or video equipment.
(7) USB
Use CP135 as a USB Camera or transfer the
captured images from CP135 memory to PC.
Connect this port to the USB port of the computer.
(8) TV-RGB switch
Switch to output display video either from Video
and S-VIDEO, or RGB output port.
