ENGLISH
3
A A V V e e r r V V i i s s i i o o n n C C P P 1 1 3 3 5 5 P P a a r r t t s s

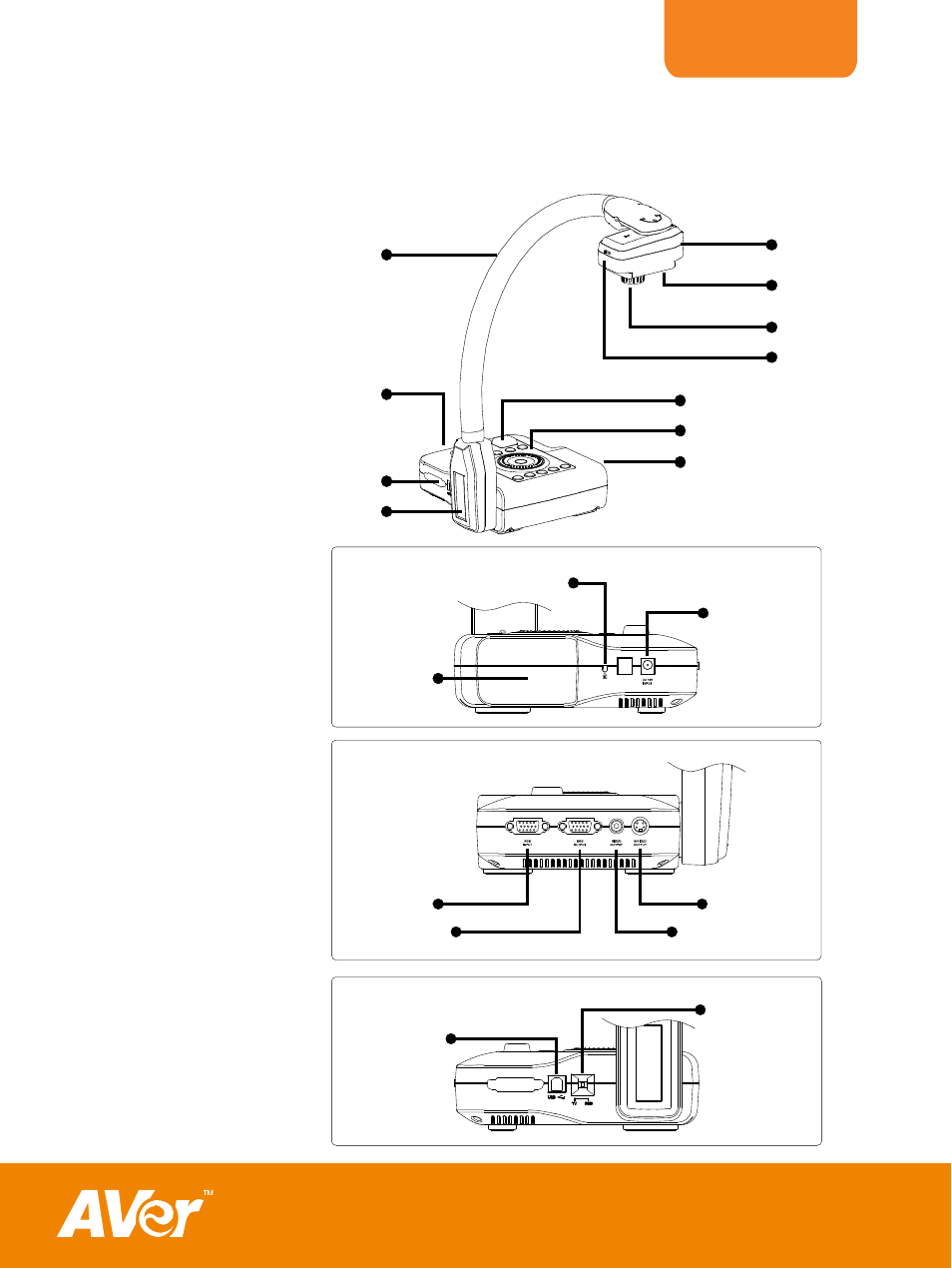

The illustrations below identify the parts of AVerVision CP135 .
(1) Camera head
(2) LED light
(3) Camera
lens
(4) LED light switch
(5) IR
sensor
(6) Control panel
(7) Right
panel
(8) Gooseneck
(9) Rear panel
(10) Left panel
(11) Label slot
(9)
(8)
(6)
(3)
(4)
(5)
(7)
(1)
(10)
(2)
(11)
(12) DC 12V port
(13) Antitheft slot
(14) Camera head holder
(12)
Right Panel
(14)
(13)
(15) S-Video output port
(16) Composite video
output port
(17) RGB input port
(18) RGB output port
(15) (17)
(16) (18)
Rear Panel
(19) TV-RGB switch
(20) USB port
(19)
(20)
Left Panel
