C C o o n n n n e e c c t t i i n n g g a a C C R R T T / / L L C C D D / / M M A A C C D D i i s s p p l l a a y y M M o o n n i i t t o o r r o o r r
L L C C D D / / D D L L P P P P r r o o j j e e c c t t o o r r

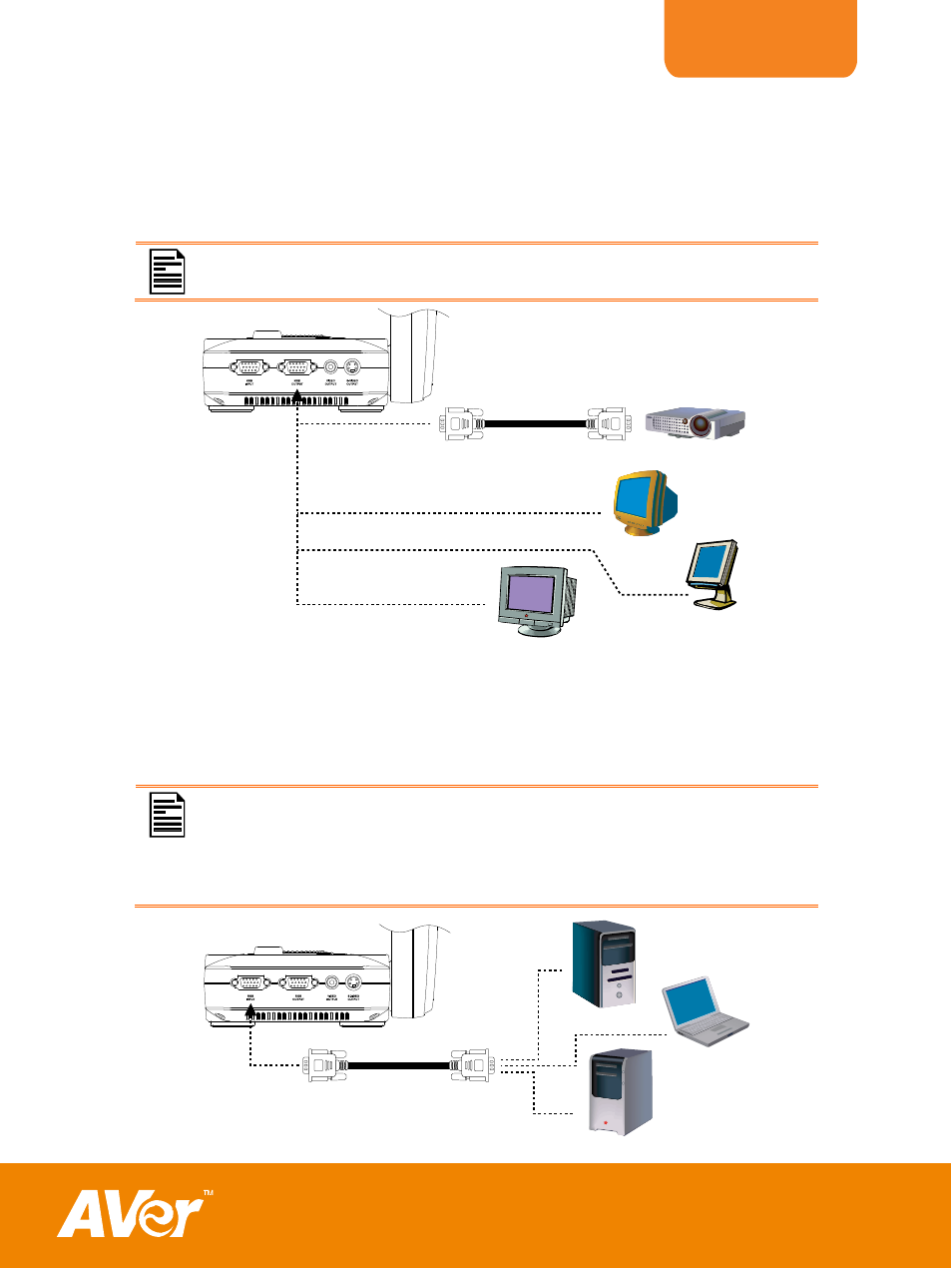

Locate the RGB (VGA) input port of the graphics display device and connect it to RGB
OUTPUT port of CP135.
Make sure the TV/RGB switch is set to RGB.
RGB cable
LCD/DLP projector
LCD monitor
MAC monitor
CRT monitor
C C o o n n n n e e c c t t i i n n g g a a C C o o m m p p u u t t e e r r
Locate the RGB (VGA) output port of the computer or laptop to display your PC
presentation on screen and connect it to RGB INPUT port of CP135. The video signal
from the RGB INPUT port is streamed to RGB OUTPUT port, and displayed on the screen.
- To display computer image, press Camera/PC button on the control
panel or remote control to switch CP135 to PC mode.
- For laptop to output display image, use the keyboard command
(FN+F5) to switch between the display modes. For different
command, please refer to your laptop manual.
RGB cable
Computer
Laptop
MAC
