Page 18
ENGLISH
15
T
T
o
o
u
u
c
c
h
h
B
B
u
u
t
t
t
t
o
o
n
n
C
C
o
o
n
n
t
t
r
r
o
o
l
l
P
P
a
a
n
n
e
e
l
l

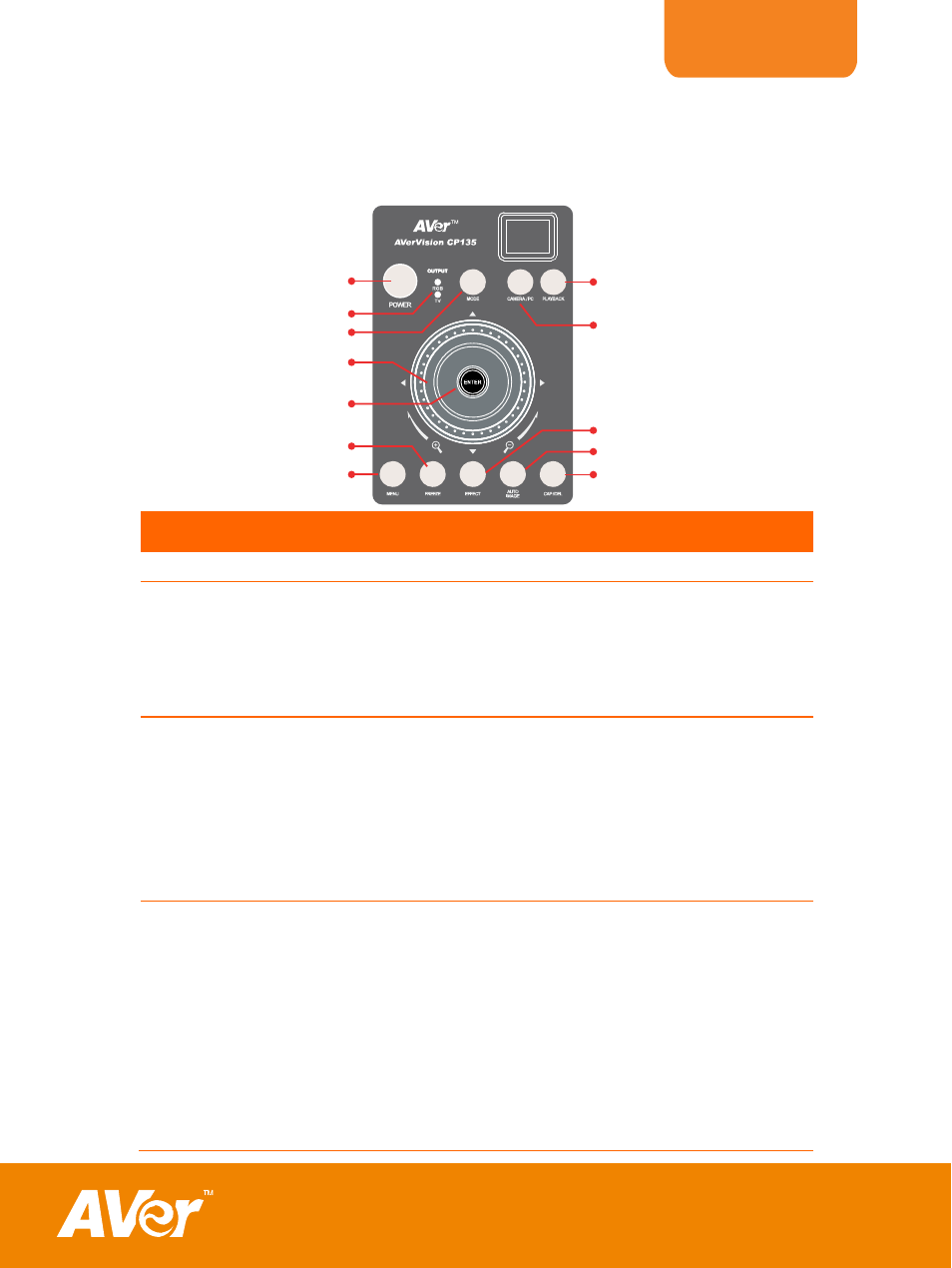

The touch button control panel located on the top side of the CP135 provides quick
access to commonly used functions.
(9)
(11)
(1)
(3)
(4)
(5)
(6)
(2)
(8)
(7)
(12)
(10)
Function
Description
(1) POWER
Turn the unit on/off.
(2) Output LED
Indicator
Indicate the setting of the TV to RGB switch to which port the
video signal is being sent out.
- RGB indicates that the video signal is sent out thru RGB
OUTPUT port of CP135.
- TV indicates that the video signal is sent out thru VIDEO and S-
VIDEO OUTPUT port of CP135.
(3) MODE
Toggles between Text, Graphics, and High Frame.
- Text - corrects the intensity of the adjacent pixel making it more
uniform producing sharper and clearer images.
- Graphics - adjusts the gradient of the adjacent pixel making it
appears to have a smooth image.
- High Frame - increases the frame rate capture and can visually
tracks the motion and react quickly. Sufficient lighting is required
when using this mode.
(4) Shuttle
Wheel
- Turn the shuttle wheel clockwise to zoom in and counter-
clockwise to zoom out the image in Camera and Playback mode
only.
When it reaches the maximum AVERZOOM level of about 200%,
you can still continue to digitally zoom in the image up to 1600%.
Press ENTER to return to normal view (100%).
- Press the shuttle wheel ▲,▼,◄, &► to pan the image while in
zoom in mode, to make a selection on 16-thumbnail images or
move to the next or previous single full screen preview in
Playback mode, or to make a selection and adjustment on the
OSD main-menu and sub-menu (See Menu Functions for more
details).
