MODEL
DIM A = FRONT OPENING DIM B = SIDE OPENING
MIN MAX MIN MAX
NOV24836-CW 45” 46” 33” 33 5/8”
NOV26036-CW 57” 58” 33” 33 5/8”
D(
M
)
I
B
5
INSTRUCTION MANUAL
Front opening
(D IM B
)
Side o
penin
g
Front opening
(DIM A
)
X
VvVV

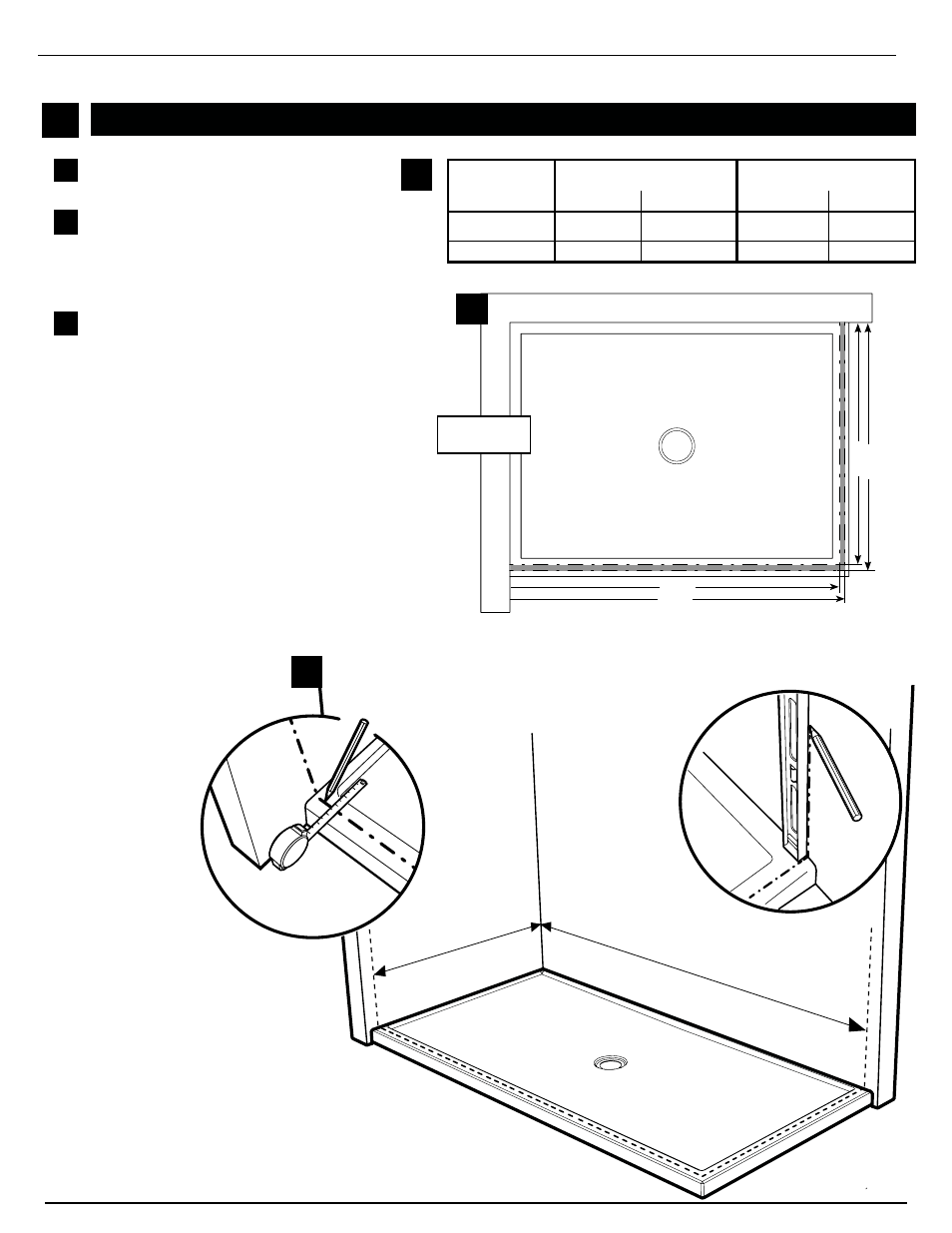

1 WALL JAMBS INSTALLATION
Using the reference table, identify the A and
B dimension that relate to your model.
Measure and mark on the threshold of the
base the minumum and maximum
dimensions determined previously. The set
points locate the recommended position for
the panel installation.
Trace a centerline where you would like to
install your shower door between the set
points and run it up the walls using a level.
1a
1c
1a
1b
1c
min
max
min max
(DIM A)
Top View
XX
1b
