Alumax W2 CW User Manual
Page 19
6
7
6
7
14a
14b
14c
14d
REMOVE GASKET FROM
PANEL BEFORE CUTTING.
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
6
7
INSTRUCTION MANUAL
19
6

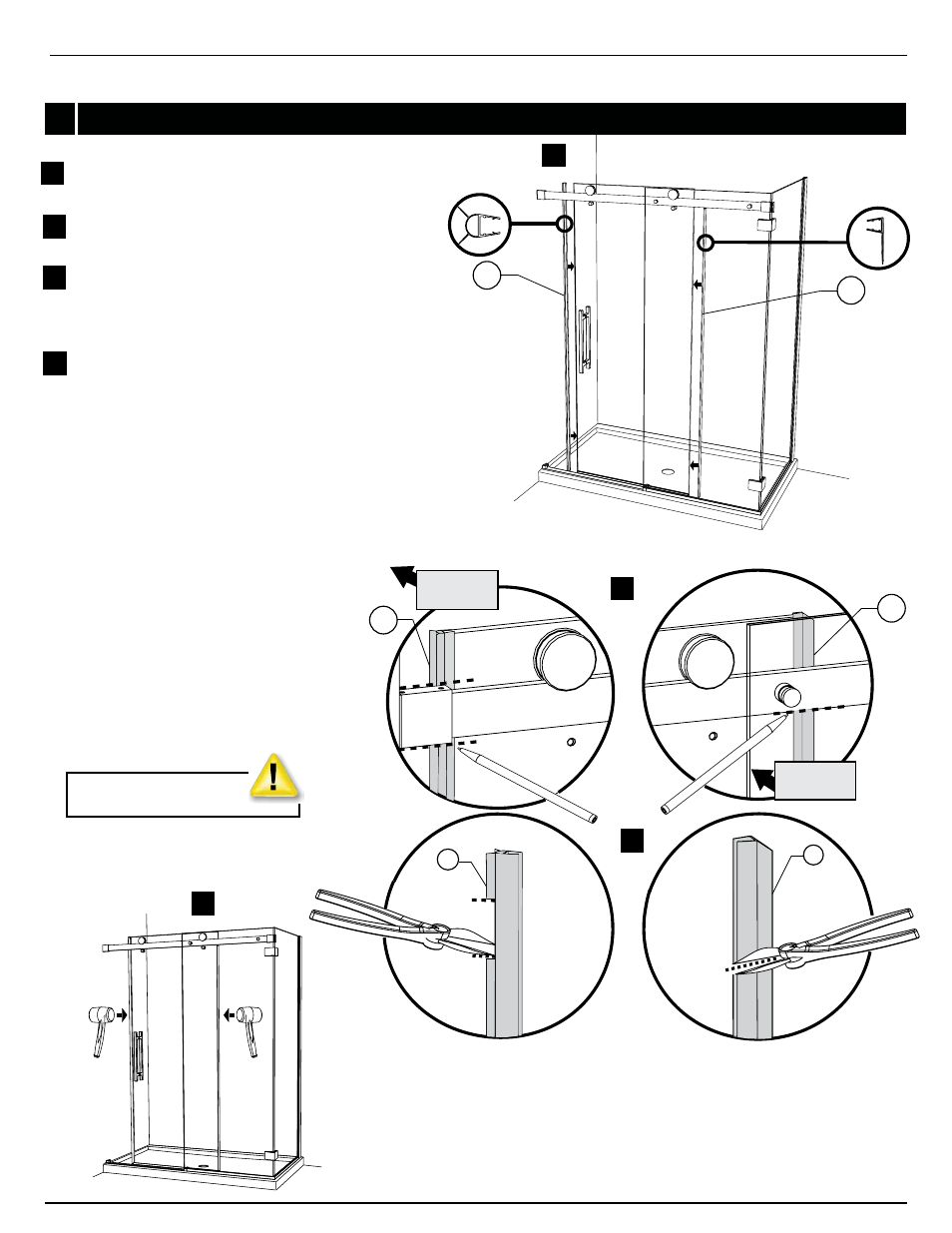

Temporarily install midgasket (6) and the door
gasket (7) to door panel.
Close door entirely, mark interference of
gaskets with running rail.
Cut gasket at marked locations with cutters.
Note that midgasket (6) needs only to be cut
below running rail. The top part is no longer
required for assembly.
Reinstall gaskets from bottom working your
way up. Use a mallet to insure that the
gaskets are fully pushed onto glass
panel door.
14a
14b
14c
14d
14 DOOR GASKETS
